TALK=T;RUN( 1, 1)

 ************************************************************
   Q1 created by VDI menu, Version 2009, Date 26/05/09
 CPVNAM=VDI;SPPNAM=Core
 ************************************************************
  Echo DISPLAY / USE settings
  DISPLAY
  This is one of four cases showing what the improvment
  the PARSOL and FG bring to the solution with same total
   grid number 100 by 100  The recirculation occured at
  Re 40, the length is 2.75 cylinder diameter by experiment.
  The case without PARSOL did not show any recirculation.
  Turnning on PARSOL immediately bring recirculation with

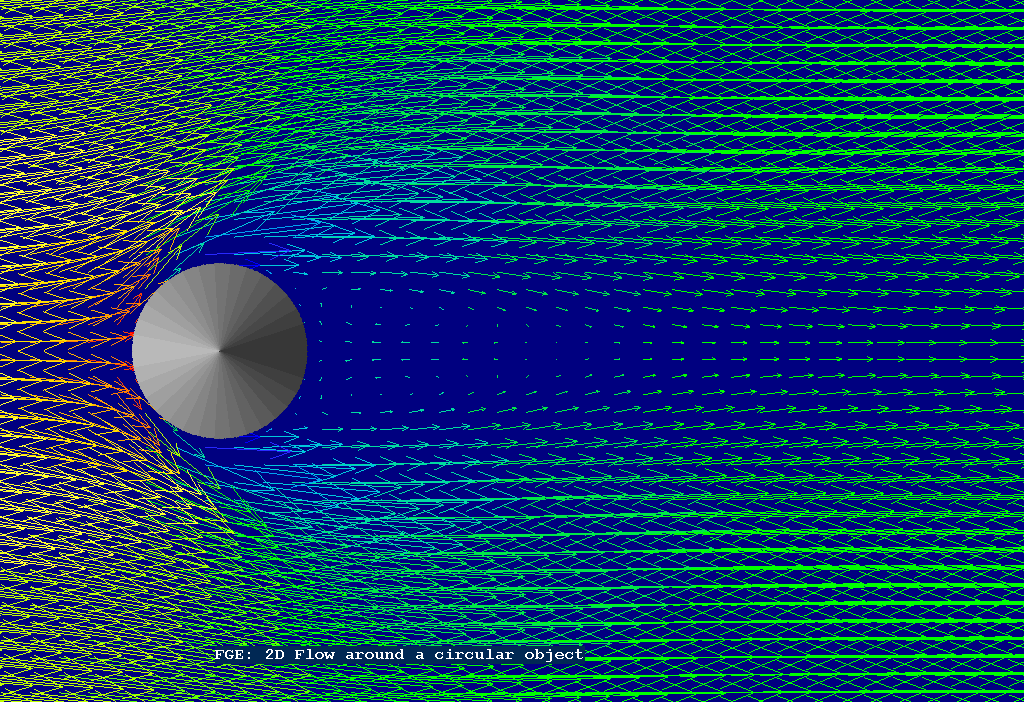

  length 1.67Click here for the result
  ENDDIS
 ************************************************************
 IRUNN = 1 ;LIBREF = 140
 ************************************************************
  Group 1. Run Title
 TEXT(FGE: 2D Flow around a cylinder - No FGV )
 ************************************************************
  Group 2. Transience
 STEADY = T
 ************************************************************
  Groups 3, 4, 5  Grid Information
    * Overall number of cells, RSET(M,NX,NY,NZ,tolerance)
 RSET(M,100,100,1,10.)
 ************************************************************
  Group 6. Body-Fitted coordinates
 ************************************************************
  Group 7. Variables: STOREd,SOLVEd,NAMEd
 NAME(150) =PRPS
    * Solved variables list
 SOLVE(P1,U1,V1)
    * Stored variables list
 STORE(PRPS)
    * Additional solver options
 SOLUTN(P1,Y,Y,Y,N,N,Y)
 SOLUTN(U1,Y,Y,Y,N,N,Y)
 SOLUTN(V1,Y,Y,Y,N,N,Y)

 ************************************************************
  Group 8. Terms & Devices
 ************************************************************
  Group 9. Properties
 PRESS0 =1.0E+05
 RHO1 =1.
 ENUL =0.015
 CP1 =1.
 ENUT =0.
 ************************************************************
  Group 10.Inter-Phase Transfer Processes
 ************************************************************
  Group 11.Initialise Var/Porosity Fields
 FIINIT(U1)=1. ;FIINIT(PRPS)=-1.
   No PATCHes used for this Group


 INIADD = F
 ************************************************************
  Group 12. Convection and diffusion adjustments
   No PATCHes used for this Group
 ************************************************************
  Group 13. Boundary & Special Sources
   No PATCHes used for this Group

 EGWF = T
 ************************************************************
  Group 14. Downstream Pressure For PARAB
 ************************************************************
  Group 15. Terminate Sweeps
 LSWEEP = 500
 RESFAC =1.0E-03
 ************************************************************
  Group 16. Terminate Iterations
 ************************************************************
  Group 17. Relaxation
 RELAX(P1 ,LINRLX,1. )
 RELAX(U1 ,FALSDT,0.1 )
 RELAX(V1 ,FALSDT,0.1 )
 ************************************************************
  Group 18. Limits
 ************************************************************
  Group 19. EARTH Calls To GROUND Station
 ************************************************************
  Group 20. Preliminary Printout
 ************************************************************
  Group 21. Print-out of Variables
 OUTPUT(P1  ,Y,Y,Y,Y,Y,Y)
 OUTPUT(U1  ,Y,Y,Y,Y,Y,Y)
 OUTPUT(V1  ,Y,Y,Y,Y,Y,Y)
 ************************************************************
  Group 22. Monitor Print-Out
 IXMON = 54 ;IYMON = 50 ;IZMON = 1
 NPRMON = 100000
 NPRMNT = 1
 TSTSWP = -1
 ************************************************************
  Group 23.Field Print-Out & Plot Control
 NPRINT = 100000
 ISWPRF = 1 ;ISWPRL = 100000
   No PATCHes used for this Group
 ************************************************************
  Group 24. Dumps For Restarts

 GVIEW(P,0.,0.,1.)
 GVIEW(UP,0.,1.,0.)

> DOM,    SIZE,        1.000000E+01, 6.000000E+00, 1.000000E+00
> DOM,    MONIT,       5.350000E+00, 2.970000E+00, 5.000000E-01
> DOM,    SCALE,       1.000000E+00, 1.000000E+00, 1.000000E+00
> GRID,   RSET_X_1,    100, 1.000000E+00
> GRID,   RSET_Y_1,    100, 1.000000E+00
  > GRID,   RSET_Z_1,      1, 1.000000E+00

> OBJ,    NAME,        B1
> OBJ,    POSITION,    0.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 6.000000E+00, 1.000000E+00
> OBJ,    GEOMETRY,    cube3t
> OBJ,    TYPE,        INLET
> OBJ,    PRESSURE,    0.
> OBJ,    VELOCITY,    1. ,0. ,0.
> OBJ,    TEMPERATURE, 0.

> OBJ,    NAME,        B2
> OBJ,    POSITION,    1.000000E+01, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 6.000000E+00, 1.000000E+00
> OBJ,    GEOMETRY,    cube12t
> OBJ,    TYPE,        OUTLET
> OBJ,    PRESSURE,    0.
> OBJ,    TEMPERATURE, SAME
> OBJ,    COEFFICIENT, 1000.

> OBJ,    NAME,        B7
> OBJ,    POSITION,    3.700000E+00, 2.700000E+00, 0.000000E+00
> OBJ,    SIZE,        6.000000E-01, 6.000000E-01, 1.000000E+00
> OBJ,    GEOMETRY,    cylinder
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    MATERIAL,    198,Solid with smooth-wall friction
STOP
