Title : OPTIMISATION OF AIR FLOW IN MINI-ENVIRONMENT

Authors : Adam GREEN, PHOENICS North America George TANNOUS, ASYST Technologies USA

Date: 1997 - PHOENICS CFD Software

Details:

Fig 1: Geometric arrangement

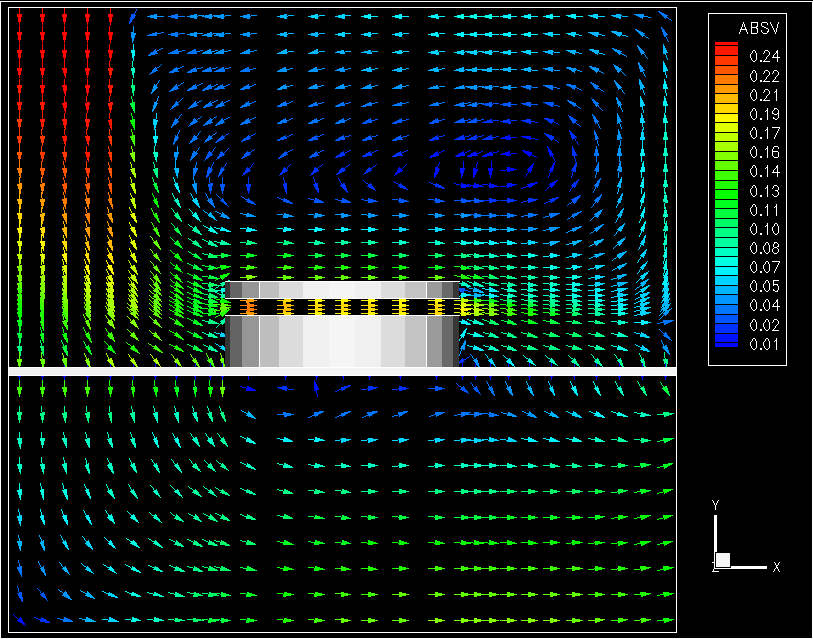

Fig 2: Velocity vectors through the mid plane, for Model 1

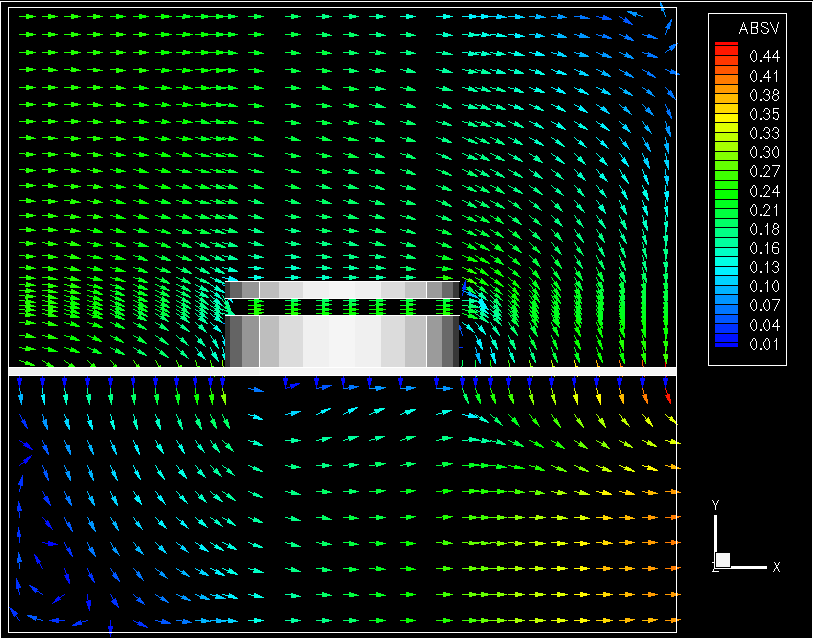

Fig 3: Velocity vectors through the mid plane, for Model 2

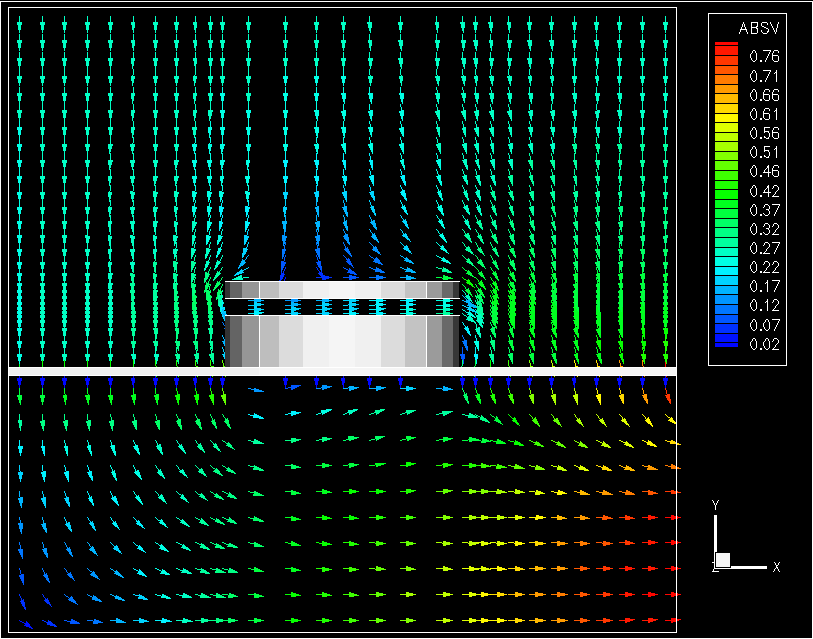

Fig 4: Velocity vectors through the mid plane, for Model 3

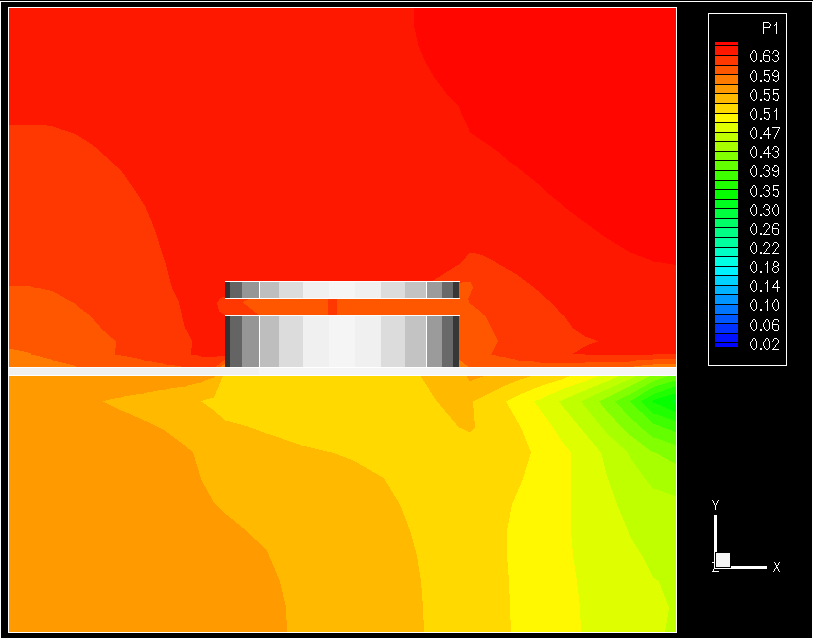

Fig 5: Pressure (Pa) at the mid plane, for Model 1

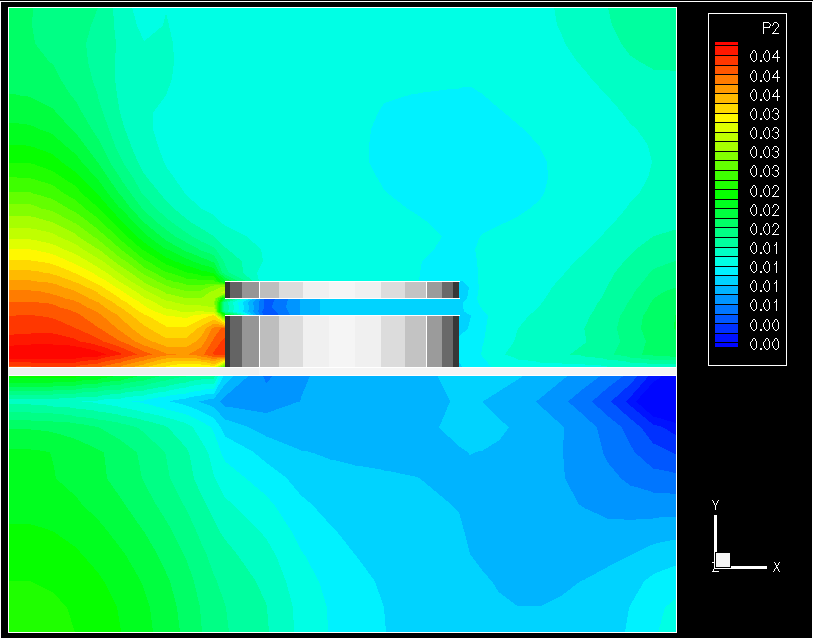

Fig 6: Pressure (Pa) at the mid plane, for Model 2

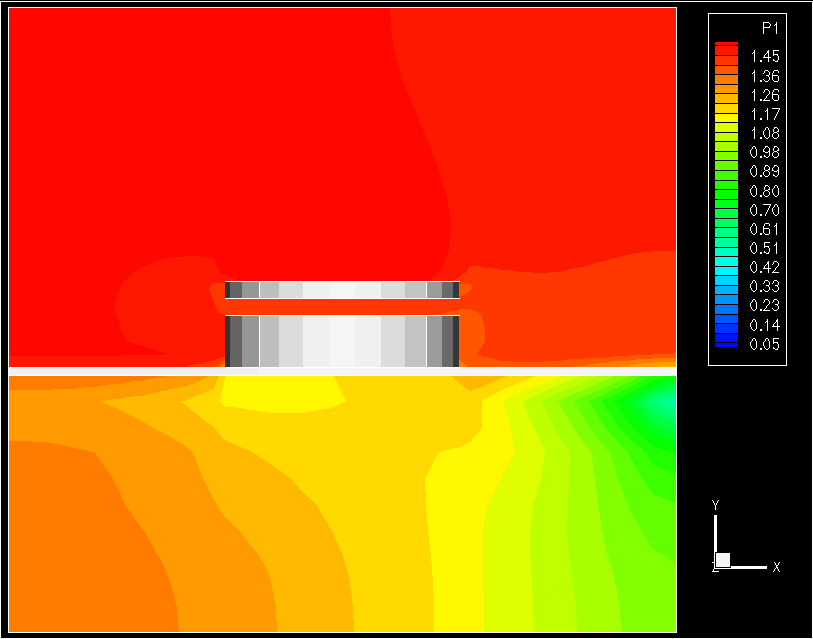

Fig 7: Pressure (Pa) at the mid plane, for Model 3
