TITLE : 2D BODY-SECTION IN A WIND TUNNEL (Library Case : B531)
BY : CHAM Development Team
- Two-Dimensional unsteady flow
- BFC computational grid
Pictures are as follows :
- This example demonstrates the flow around a 2-dimensional body
in close proximity to the wind-tunnel floor ,showing the effect
of the tunnel-floor boundary layer on the pressure distribution.
- A boundary layer is prescribed at the inlet.

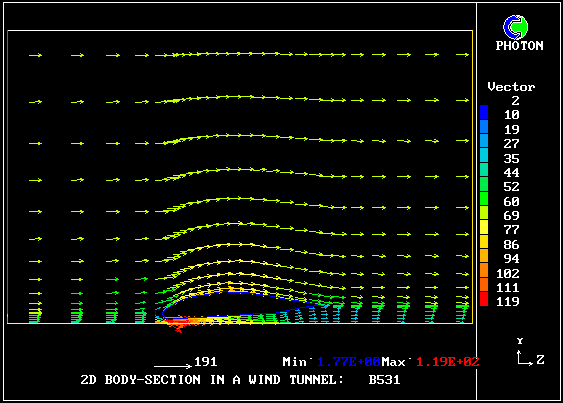

1. Velocity vectors

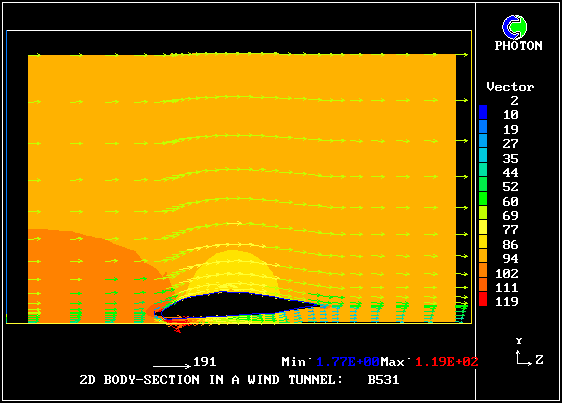

2. Pressure distribution contours
