TITLE : CH4/AIR COMBUSTION (LIBRARY CASE C113)

BY : CHAM Consultancy Team

DETAILS :

• The combustion of a methane jet in air is considered. Fuel enters the lower half of the domain on the right, with air, having the same velocity, entering at the top.

• The fuel burns at the interface between the two flows.

• The flow is two-dimensional and the k-e turbulence model is used.

Pictures are as follows :

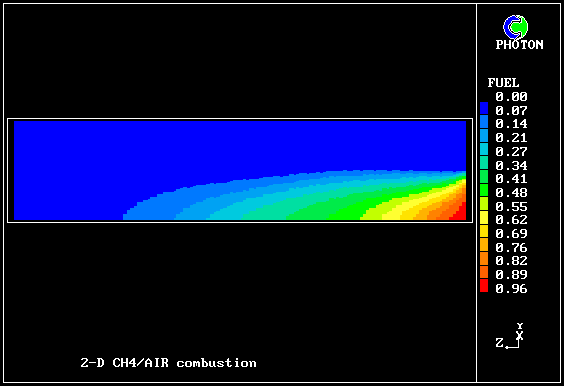

1. Fuel mass fraction
2. Product mass fraction

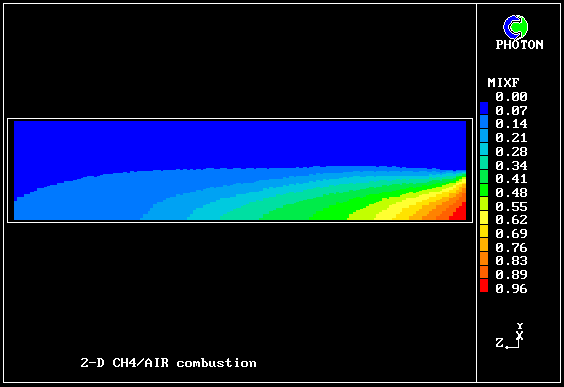

3. Mixture fraction

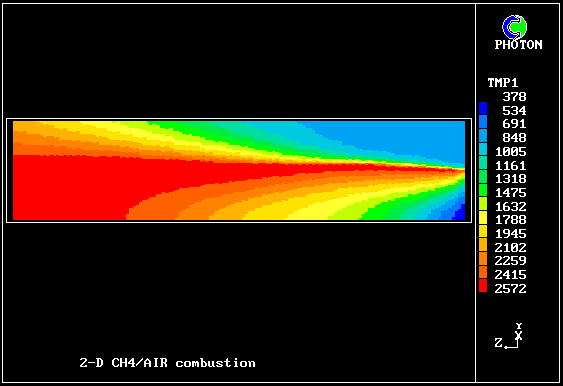

4. Temperature contours
5. Velocity vectors
