TITLE : CYCLONIC TYRE INCINERATOR SIMULATION

By : Simon Hibbert of CHAM Consultancy
For : LUCAS Furnaces Ltd
PHOENICS Version : 3.1
Date : 02.1998

DETAILS :

NOTES :

DISCUSSION :

Pictures generated in S-Photon are of:

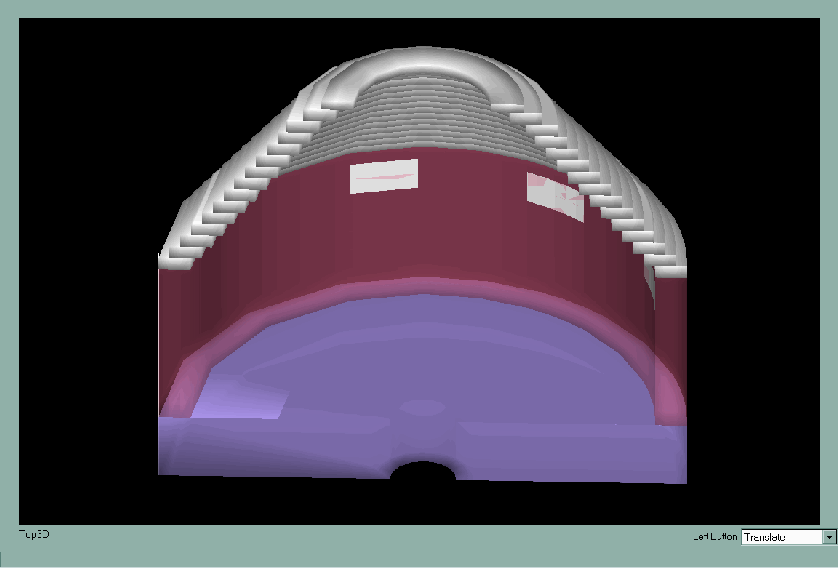

  1. Layout (half section),
  2. Iso-surface of pressure indicating the shape of the cyclone above the quench tank,

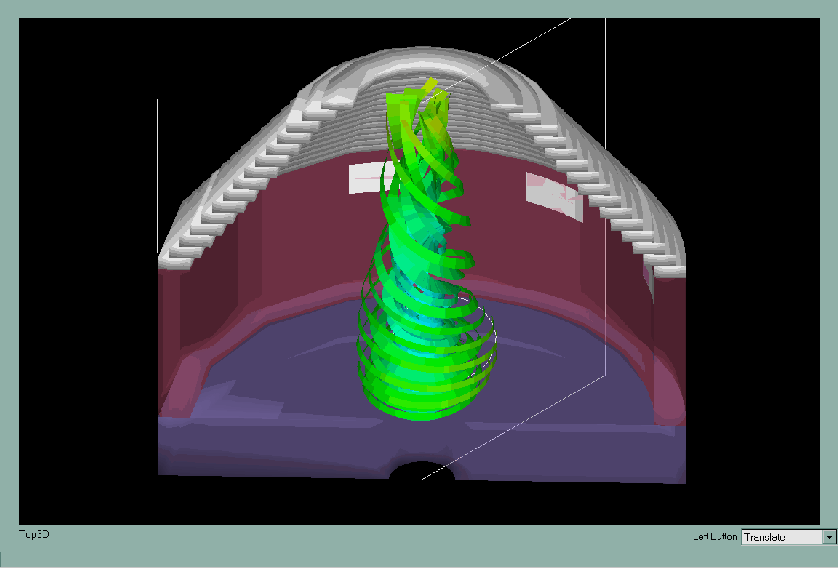

  3. Streamlines illustrating the path of the combustion products from the furnace hearth to the outlet at the top of the furnace,

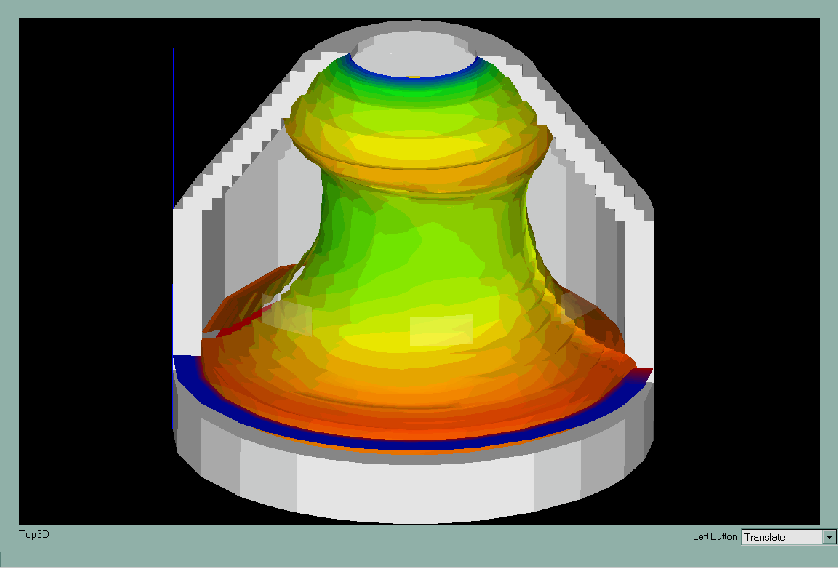

  4. Iso-surface of temperature giving the shape of the thermal products stream,

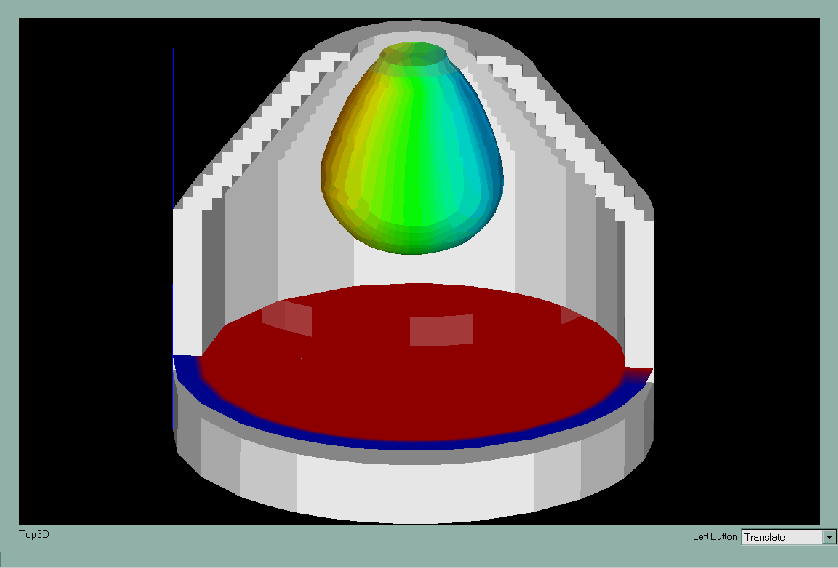

  5. Iso-surface of turbulent viscosity highlighting a region of turbulence in the vicinity of the furnace roof.
