TITLE : FLOW IN HOBSON'S CASCADE (LIBRARY CASE B526)
BY : CHAM Consultancy Team
Pictures are as follows:
- This case represents the flow between two blades in a cascade.
The geometry is that of Hobson's first impulse cascade (1974)
for which a hodograph solution exists for inviscid compressible
flow. It is treated as a 2-dimensional curved duct.
- The grid is generated by using the MAGIC algorithm to smooth a
preliminary grid generated by linear interpolation.

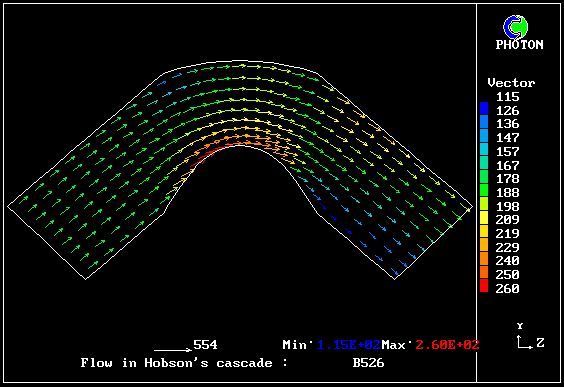

1. Velocity vectors

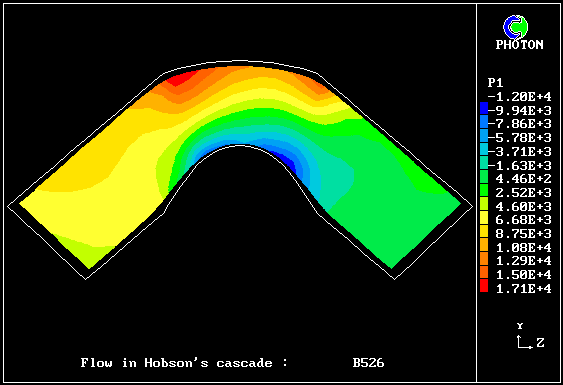

2. Pressure contours
