### TITLE : SLOSHING IN A ROLLING SHIP TANK

BY : CHAM Development Team - Liu Jun
FOR : Demonstration Case
DATE : 1992 - PHOENICS Version : 1.6.5

### DETAILS :

- Two-Dimensional, Transient Flow
- Curvilinear(BFC) computational grid

### NOTES :

- Simulation describes a Free Surface Case using the Scalar Equation
Method
- Rolling of the Ships hull is simulated by modifying the gravity
vector as a function of time

Pictures are as follows :

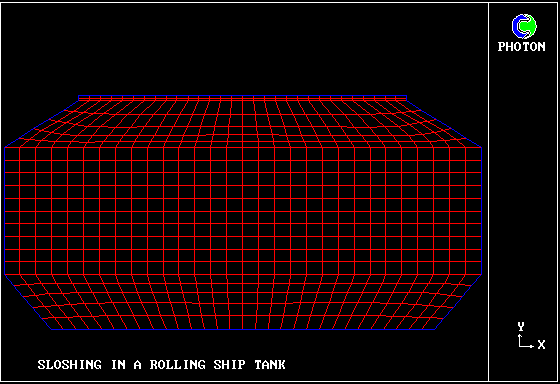

Computational Grid

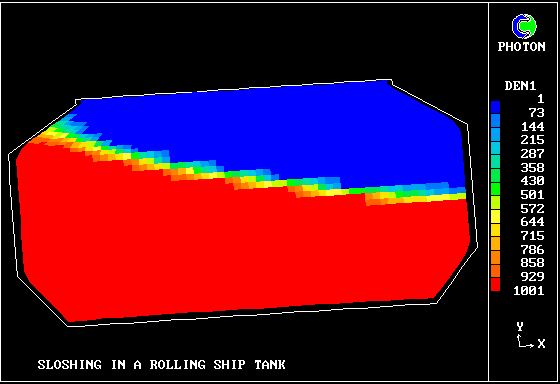

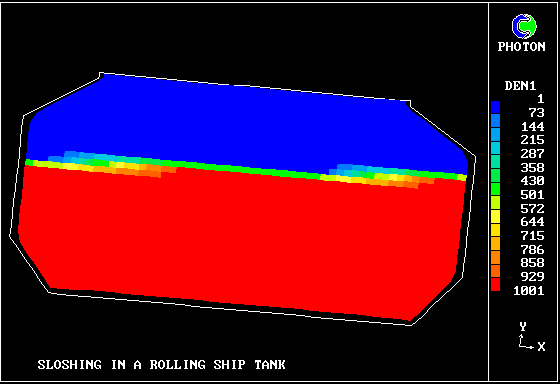

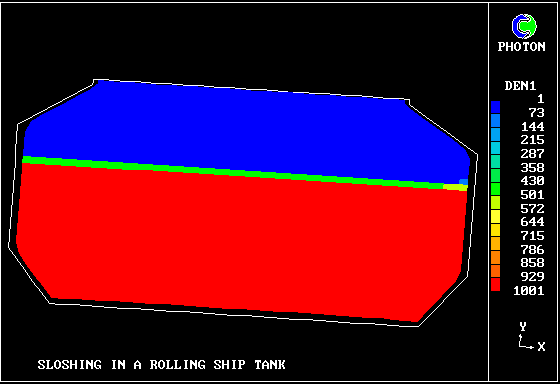

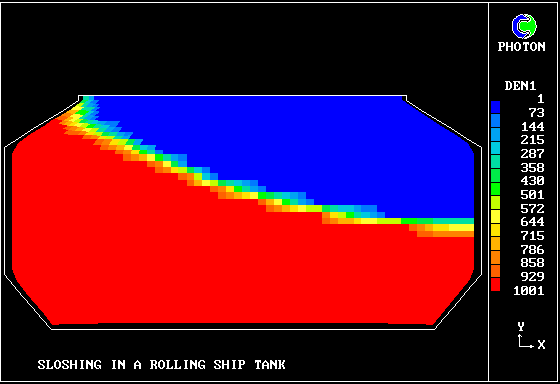

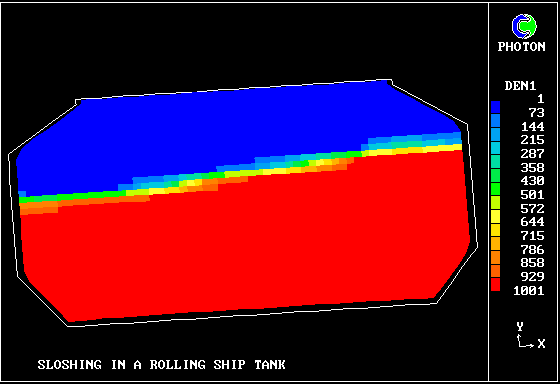

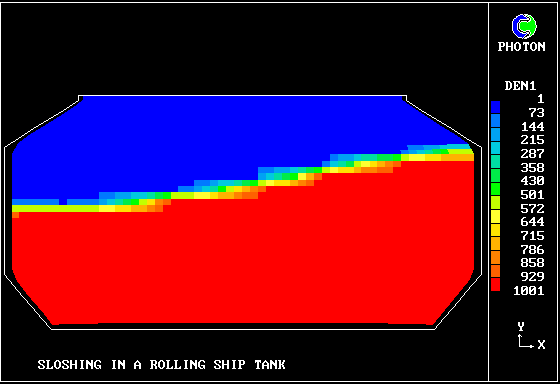

Sloshing in a Rolling Tank at T = .139s

Sloshing in a Rolling Tank at T = .278s

Sloshing in a Rolling Tank at T = .417s

Sloshing in a Rolling Tank at T = .556s

Sloshing in a Rolling Tank at T = .834s

Sloshing in a Rolling Tank at T = .973s

Sloshing in a Rolling Tank at T = 1.112s
