### TITLE : SCALAR EQUATION MODEL - OFFSET T-JUNCTION

BY : CHAM Consultancy Team - J C Ludwig
FOR : Demonstration case
DATE : 1993 PHOENICS Version : 2.0

### DETAILS :

- Three-Dimensional, Transient flow
- Curvilinear (BFC) computational grid

### NOTES :

- Pumped water enters the vessel via an offset connecting pipe
- The vessel is completely open at the top
- The water exits through a hole at the bottom of the vessel
- The Scalar Equation Model is used to solve this problem

The pictures are as follows :

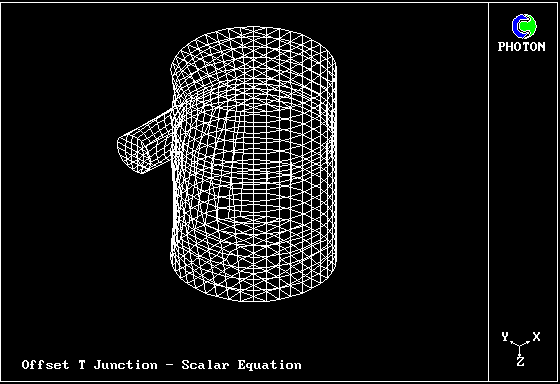

Computational Grid

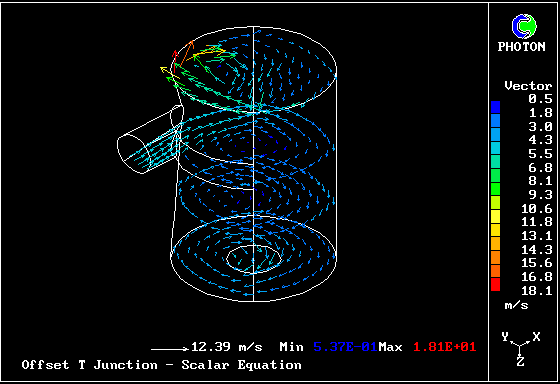

Velocity Vectors

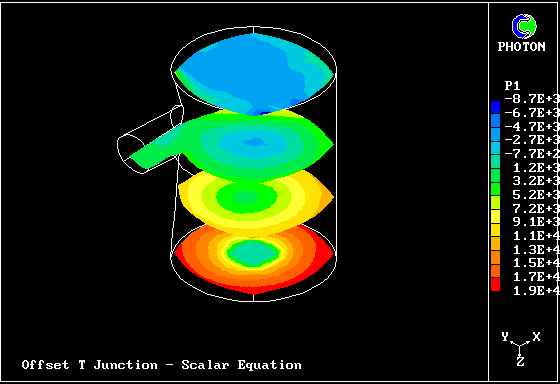

Pressure Contours

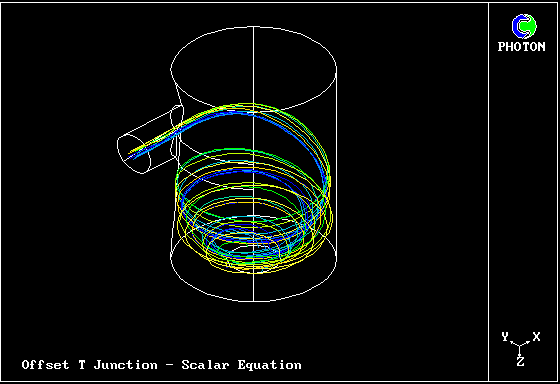

Streamlines

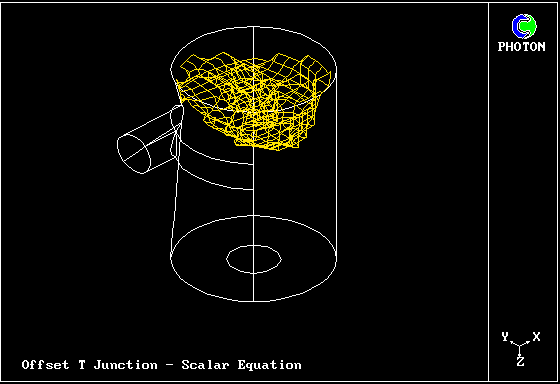

Surface Contours
