TITLE : COOLING OF A HEATED BLOCK (LIBRARY CASE 266)
BY : CHAM Consultancy Team
- The flow of air over a solid block is computed, and the
velocity fields are saved. The enthalpy field that
results from the uniform heating of the solid block
cooled by the velocity field determined in the first run
- The flow is two-dimensional and the k-e turbulence model
Pictures are as follows :

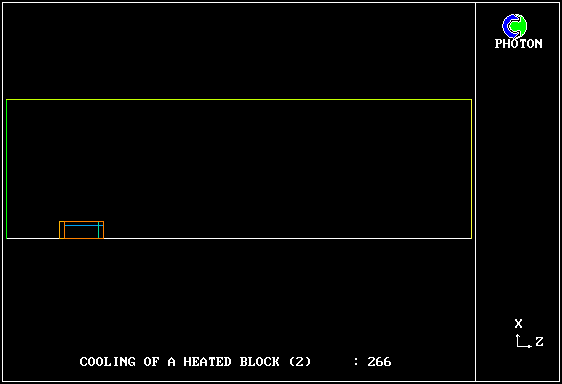

1. Geometry of the problem

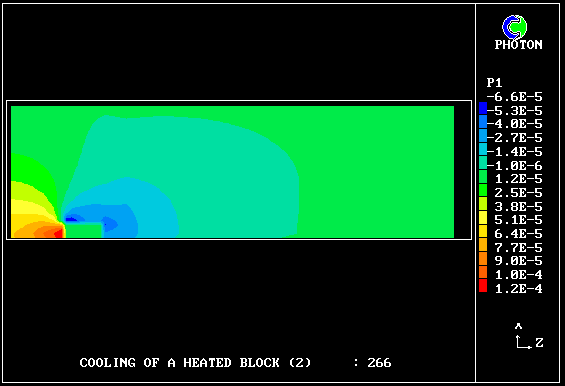

2. Pressure distribution.

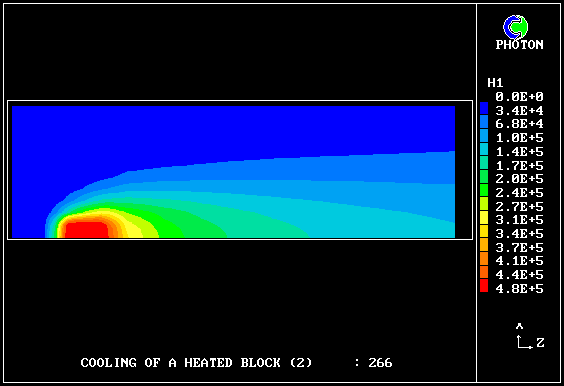

3. Enthalpy distribution.

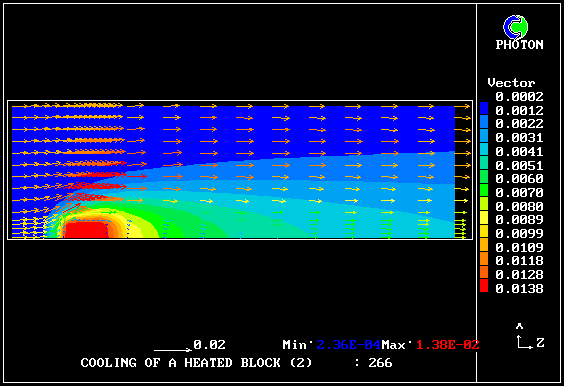

4. Velocity vectors
