TITLE : Free convection in an annulus
BY : IKOSS-CSS GmbH, Germany - M. Megahed
FOR : Benchmark
DATE : 1994 PHOENICS Version : 2.0
- Two-dimensional steady flow.
- Polar computational grid.
- A hot cylinder is to be insulated by an outer colder cylinder.
- Air trapped in the gap will flow due to turbulent free convection
1. Geometry and boundary conditions.

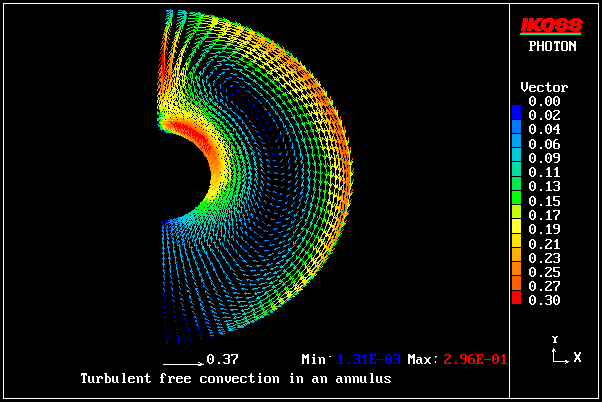

2. Vector field in the gap.

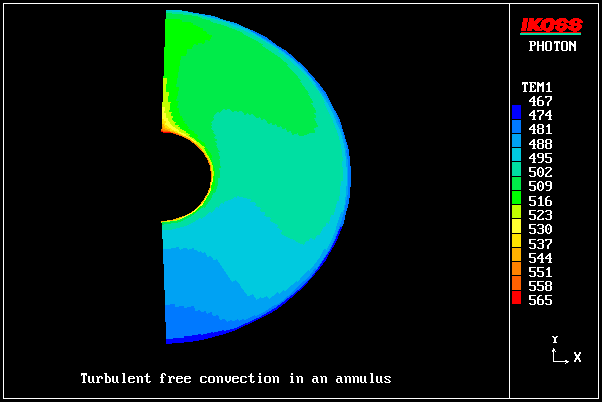

3. Temperature distribution in the gap.
