BY : CHAM Development Team - D Radosavljevic
- S N Drake

FOR : TACT development programme

DATE : 1988

PHOENICS Version : PHOENICS 1.4 - TACT

- Three-Dimensional steady flow
- Curvilinear(BFC) computational grid

- Simulation of a wet natural-draught cooling tower used in many steam power stations for cooling large quantities of water by direct contact with the athmosphere
- PHOENICS-TACT predicts the complex three-dimensional effects resulting from interaction between the cross-wind and the cooling tower flow field
- Simulation features :
- Inlet water temperature 20 C - Tower Height 115.4 m - Cooling range 12 C - Base Radius 42.6 m - Block power 350 MW - Exit Radius 24.0 m

Pictures are as follows : 1. Computational grid and Tower shell 2. Velocity vectors in symmetry plane 3. Air temperature contours in symmetry plane

Full information about PHOENICS-TACT features and calculations can be found:

D Radosavljevic, D B Spalding 'Simultaneous Prediction of Internal and External Aerodynamic and Thermal flow fields of a natural-Draft Cooling Tower in a cross wind' PHOENICS publications Reference Number : 1988 No.18

D Radosavljevic, D B Spalding 'The use of PHOENICS to simulate Three-Dimensional effects in natural-draft Cooling Towers' PHOENICS publications Reference Number : 1989 No.15

D Radosavljevic, S N Drake 'The TACT user guide' PHOENICS publications Reference Number : TR226

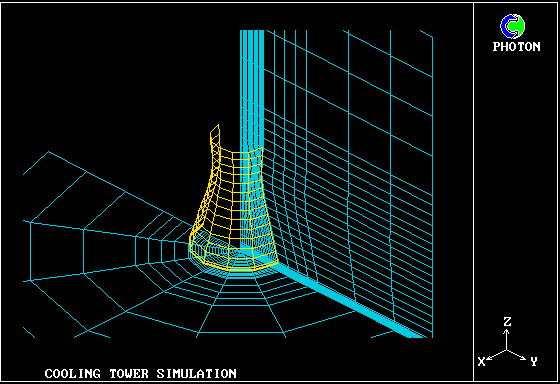

Computational grid and Tower shell

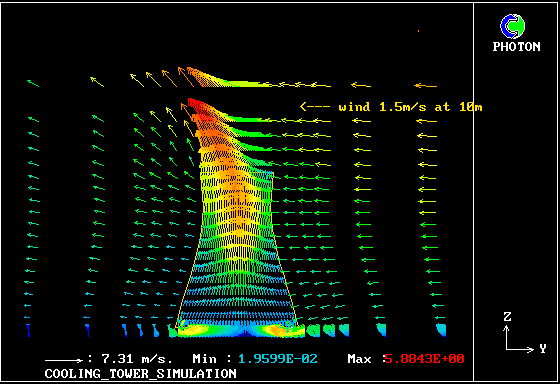

Velocity vectors in symmetry plane

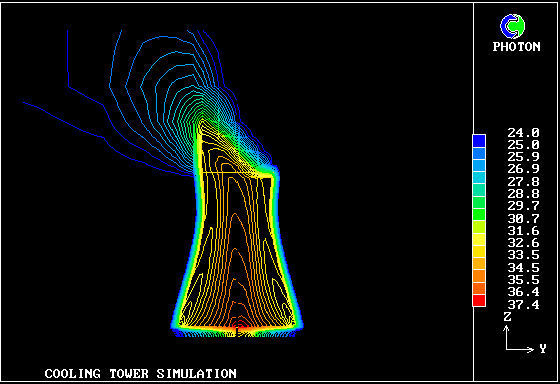

Air temperature contours in symmetry plane
