BY: F. de Trogoff - CHAM UK

DATE: 1997

- The geometry of a three-element aerofoil was created by
discretizing its shape into coordinates (x, y, z)
- The coordinates were rescaled and repositioned so that:
| x | | x | min | y | = 0 max | y | = 1 | z | | z |

- The scaled coordinates and information detailing each facet of the geometry were placed in a data file.

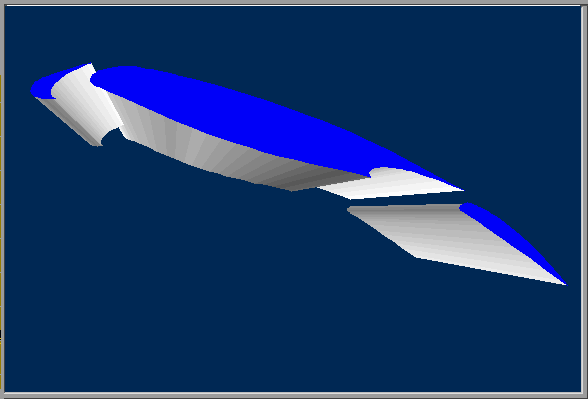

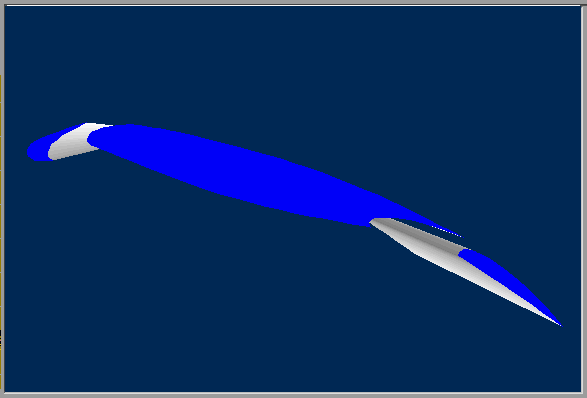

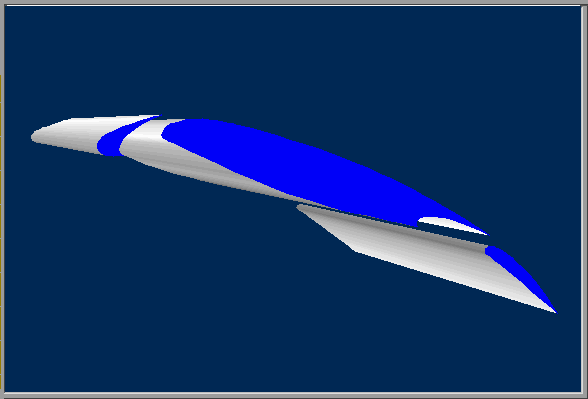

The following pictures show the created geometry from several angles.
