TITLE: Geometry Created for VR - Drilling Bit

BY: F. de Trogoff - CHAM UK

DATE: 1997

Details:

• The geometry of a drilling bit was created by discretizing its shape into coordinates (x, y, z)

• The coordinates were rescaled and repositioned so that:

                    | x |                      | x |
                min | y |  = 0             max | y | = 1
                    | z |                      | z |



• The scaled coordinates and information detailing each facet of the geometry were placed in a data file.

• Using the created geometry, flow was calculated over its surface.

  The following pictures show:

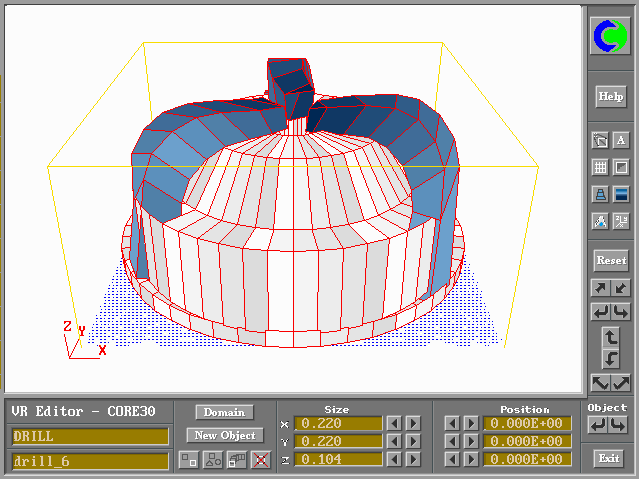

  The created geometry

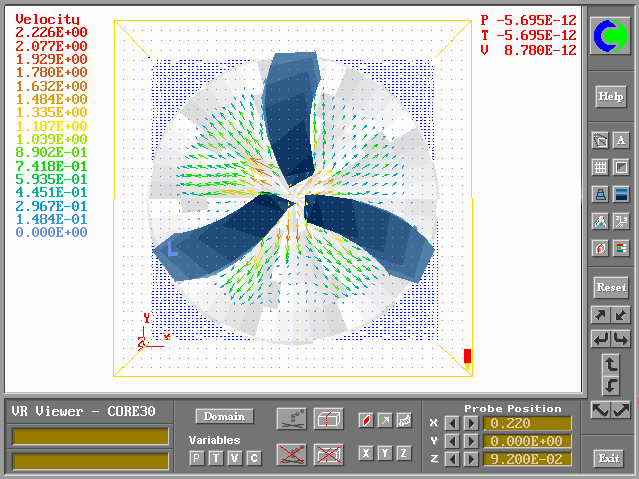

  Calculated velocity vectors (top view)

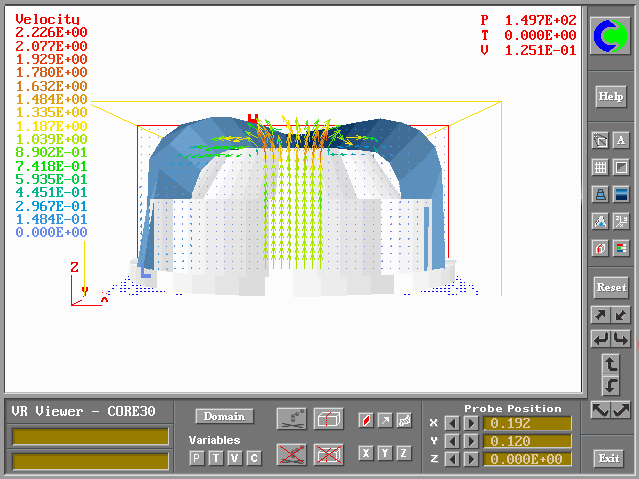

  Calculated velocity vectors (side view)
