BY: CHAM Consultancy Team - CHAM UK

DATE: 1997

- The geometry of a Formula 1 racing car was created by discretizing
its shape into coordinates (x, y, z)
- The coordinates were rescaled and repositioned so that:
| x | | x | min | y | = 0 max | y | = 1 | z | | z |

- The scaled coordinates and information detailing each facet of the
geometry were placed in a data file.
- Using the created geometry, flow was calculated over its surface.

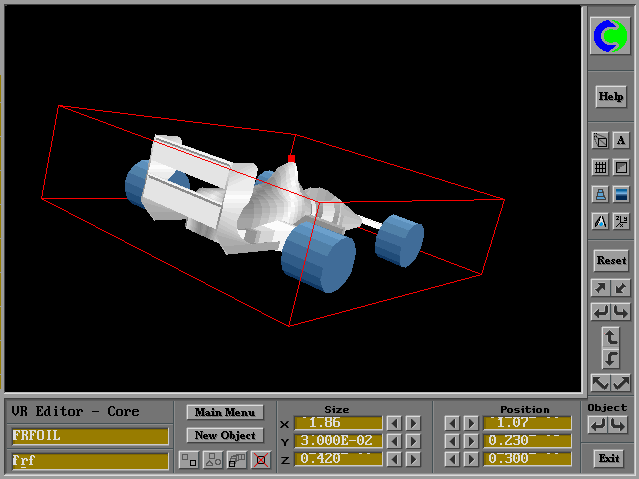

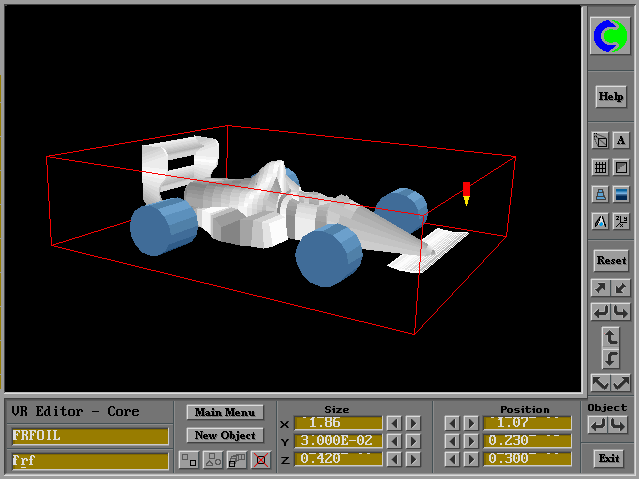

The following pictures show the created geometry from two different angles.
