TITLE : Water elevation in an open U-bend
BY : CHAM User Support Team - Dr S V Zhubrin
FOR : Demonstration case
DATE : November, 2000
PHOENICS Version : 3.3.1
PHYSICAL SITUATION :
- Steady Free Surface Flow of Water in an open channel with U-turn.
- The task is to simulate the velocity distribution along with
free water surface elevation.
- Hydrostatic pressure
- Incompressible, homogeneous fluid
- Viscous, bed friction and turbulence effects are neglected
- Non-varying bed topography
- Shallow flow: small vertical scale relative to horizontal
- Well-mixed-in-depth flow: uniform vertical distributions
- Two-dimensional treatment of three-dimensional flows with
the local depth calculated as part of solution.
- Depth-averaged version of Navier-Stokes equations;
- Equations solved by analogy to isentropic, compressible gas flow:
- Density, RHO1= Depth, h
- Pressure, P1= g*h**2/2, i.e.
- U1, V1 = depth-averaged velocity components
NUMERICAL DETAILS :

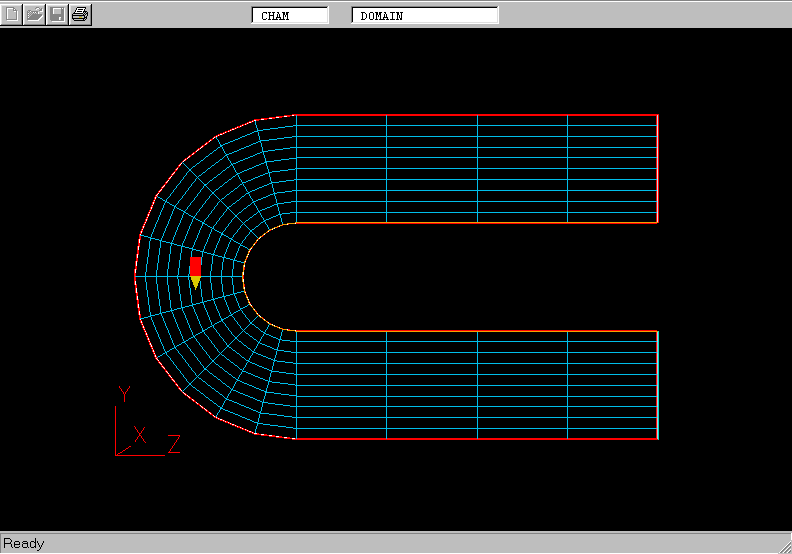

- BFC computational grid.
- Boundary conditions:
- Fixed fluxes for inlet mass/momentum and
- Fixed-pressure outlet (equivalent to fixed depth).

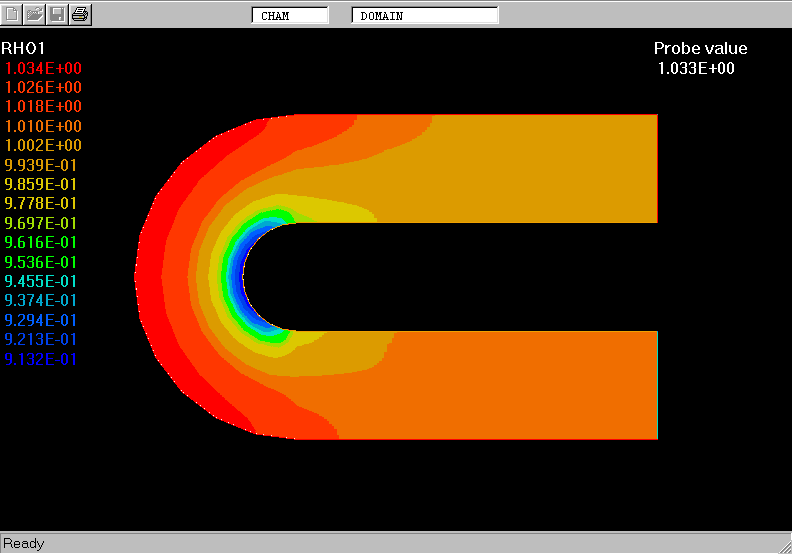

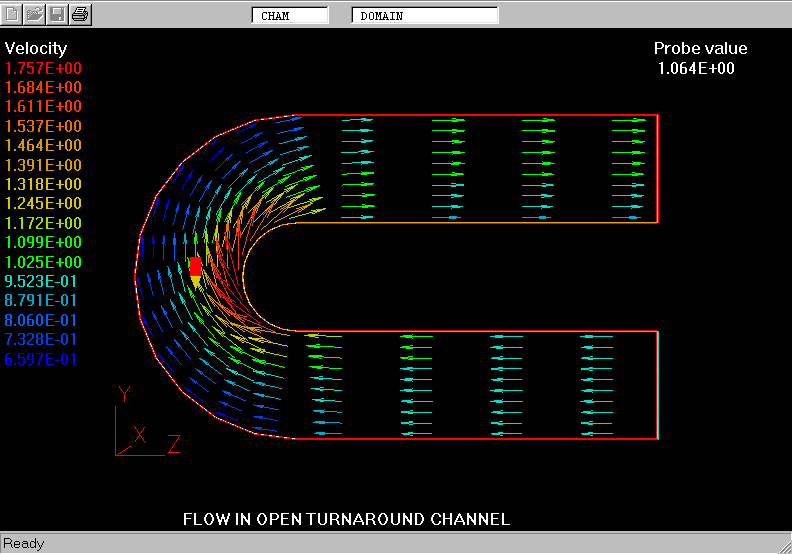

The plots show the distribution of velocity and water depth (free
surface elevation) within the channel.
Pictures are as follows :
All model settings have been made in VR-Editor of PHOENICS 3.3.1.
The relevant Q1 file can be inspectedby clicking
