TITLE : PLANT BFC grid feature
BY : S.V.Zhubrin
FOR : Technical-discussion meeting
DATE : July 1997
PHOENICS Version : 3.1

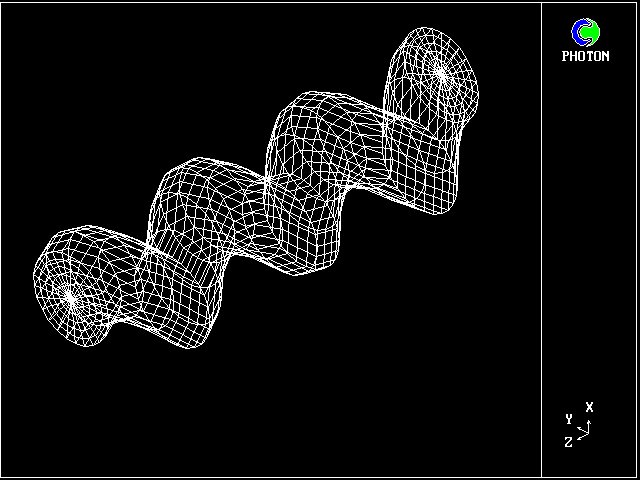

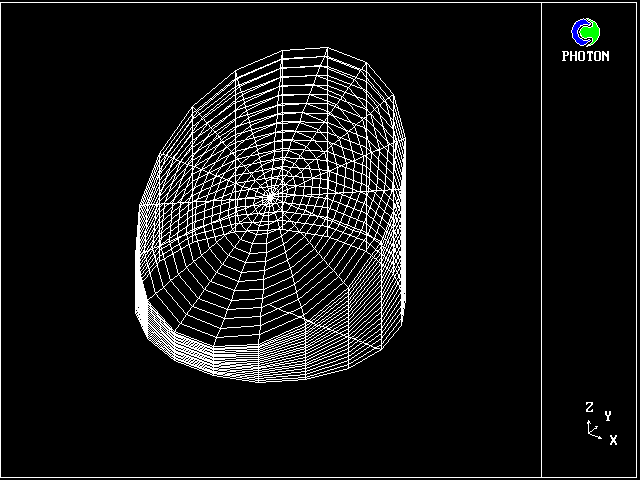

The pictures represent some examples of the PLANted BFC grids
- The power of PLANT, a formula -based geometry generator gives
you Parametric Analytics for Engineering Analysis.
- The Function Pack of PLANT contains many tens useful functions to
help you in creating the complex 2D and 3D geometrical grids just
by typing in Q1 or via menu parameterised analytical expressions.
They include Fourier series to represent the non-monothonical
shapes by way of single formula.
