TITLE : SOLID DISTORTED BY THERMAL STRESSES
BY : S.V.Zhubrin
FOR : Technical-discussion meeting
DATE : July 1997
PHOENICS Version : 3.1
The pictures represent the velocity and displacement fields by way
of vectors, and the temperature and stresses by way of colour
- Two-Dimensional steady flow over non-uniformly heated
solid block with heavy external loads.
- Simultaneous solution for fluid flow, conjugate heat transfer
and displacement/thermal stresses in solid.
- PLANT BFC feature is used to visualise the solid body shape
distorted by displacements.
Velocity vectors and temperature in solid block

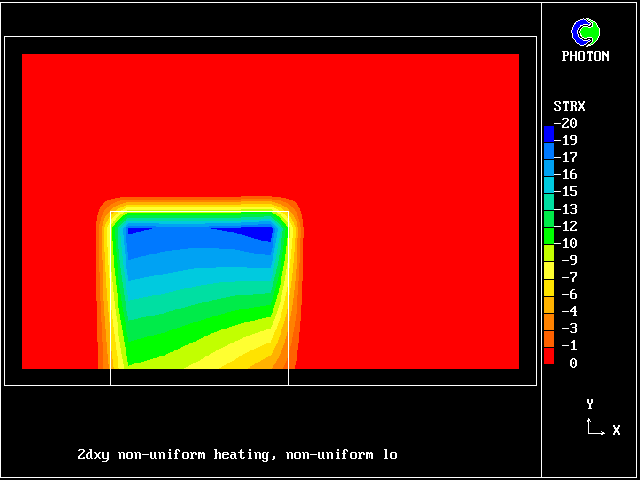

X- direction normal stresses

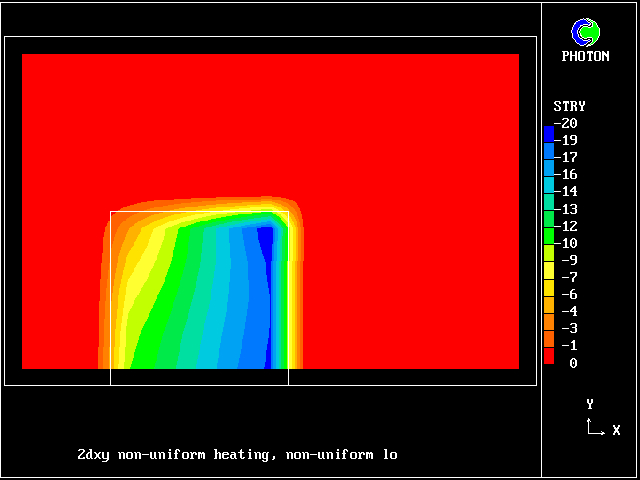

Y- direction normal stresses
Solid block shape distorted by displacements( Not in scale )
