FLAIR Library case: Smoke in chimney (102).

  1. Problem.

  2. This case models a simplified transient two-dimensional chimney, described with the aid of Body Fitted Coordinates (BFC).

    There is a small opening at the lower end of the chimney and the top is fully opened. A fire starts near the bottom end.

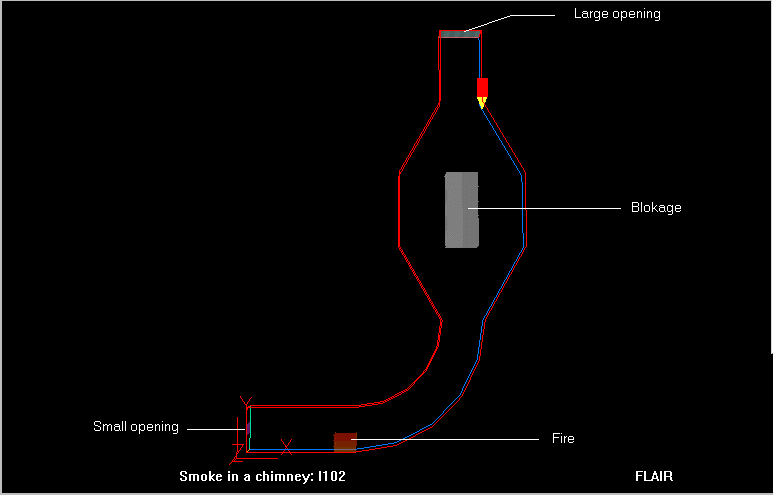

    Geometry.

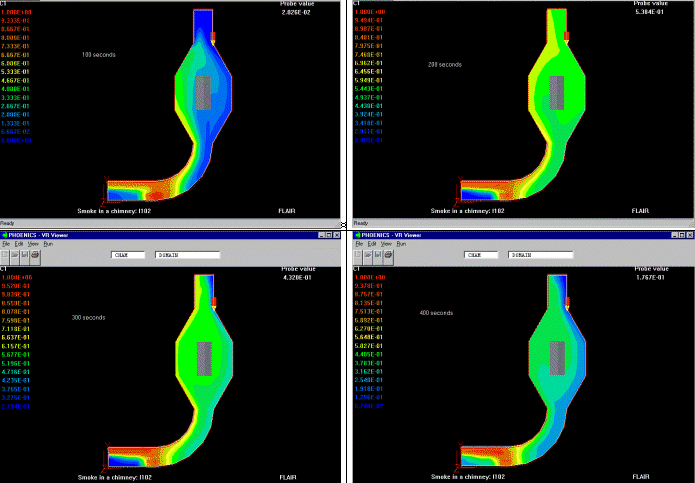

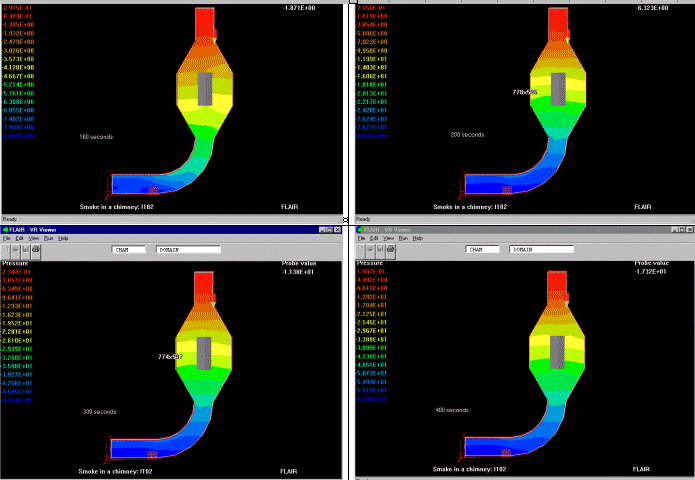

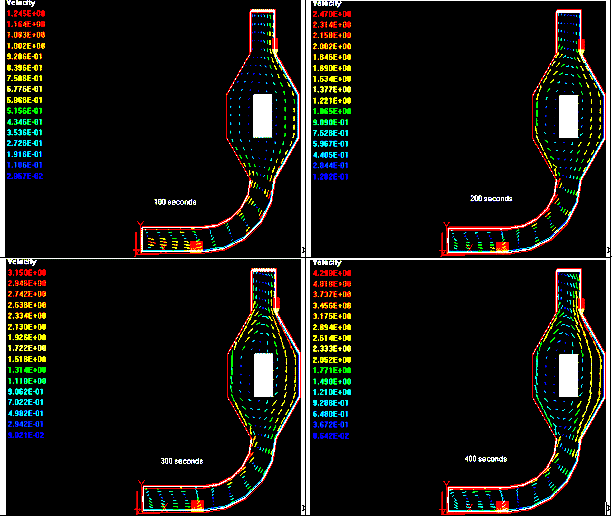

  3. Results.
