TITLE : INTERNALS and SURROUNDINGS of an ELECTRONICS UNIT

BY : CHAM Development Team

DATE : 1999

FOR : Demonstration case

PHOENICS version: HOTBOX-99

DETAILS :

This case concerns the prediction of air flow and temperature distribution in and around a closed metal box, which contains two heat sources. These liberate 5W and 7W respectively. The box is cooled from the outside by air at 20 deg C being blown at 1.5 m/s.

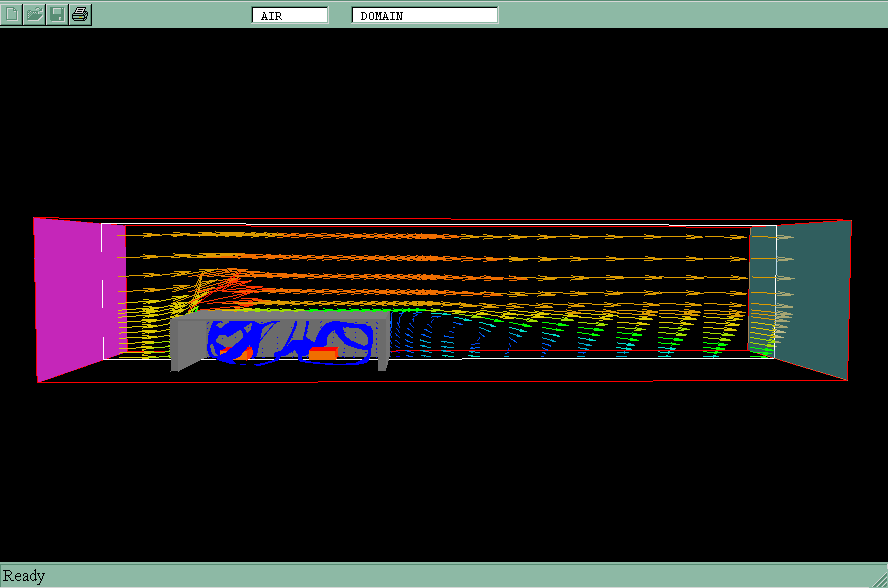

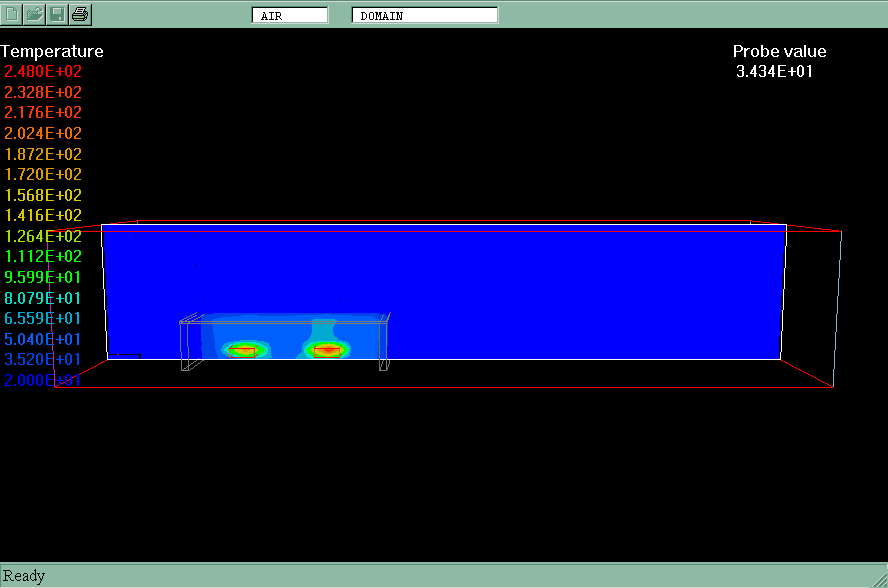

Pictures are as follows :
