TITLE : The effect of enclosure orientation on heat dissipation
BY : CHAM Development Team - Sergei Zhubrin
DATE : 1999
FOR : Demonstration case
PHOENICS version: HOTBOX-99
DETAILS :
This case models simple two-dimensional flow through a tilted box (angle
is 1 rad). Air has two apertures for flow and the buoyancy force is generated
from the temperature difference; single solid in the middle of the domain
generates heat.
Pictures are as follows :

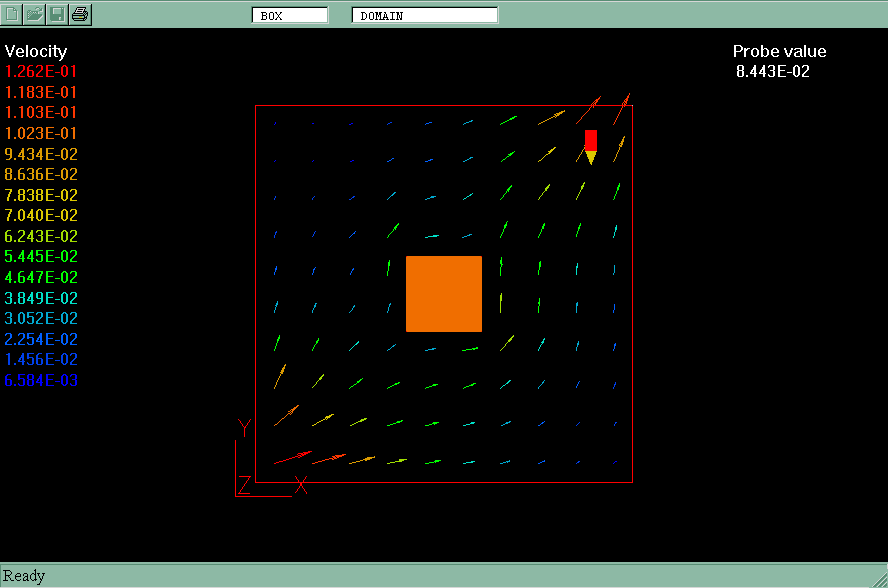

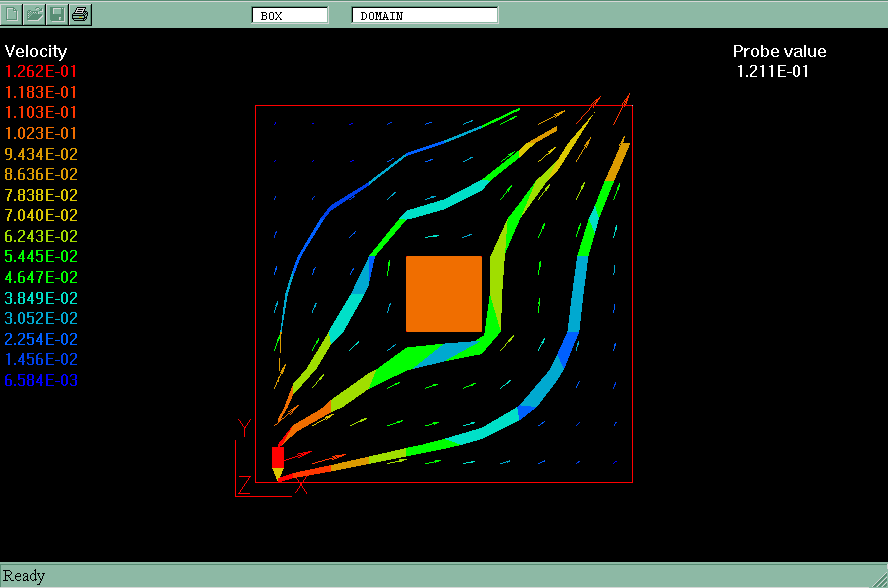

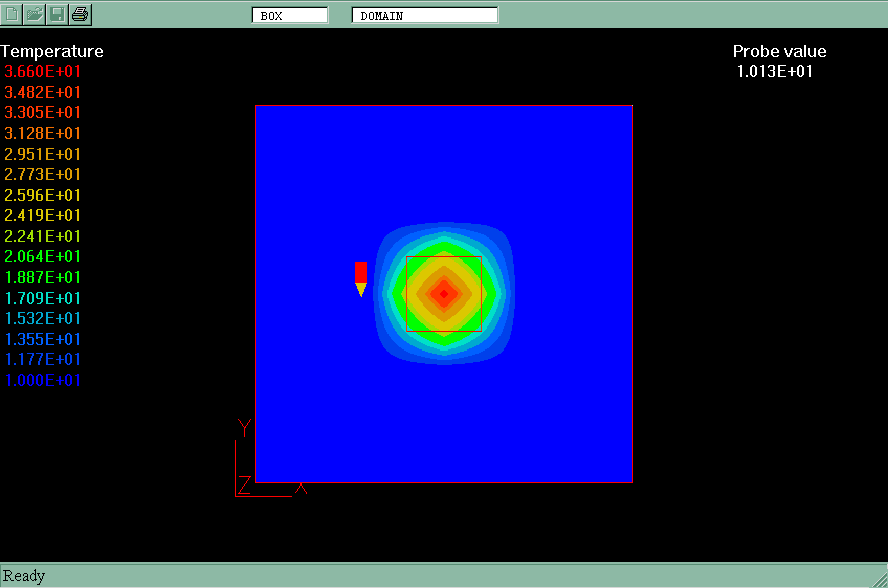

1. Standing enclosure

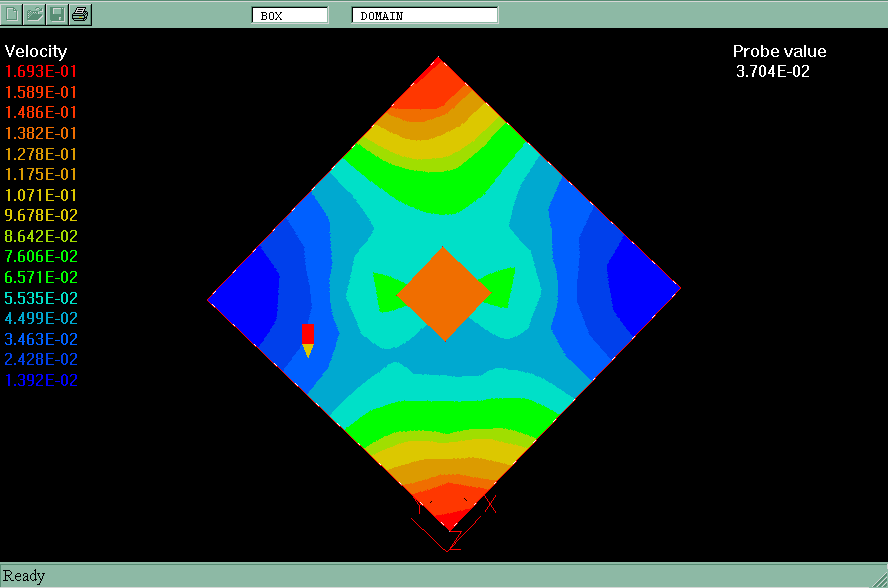

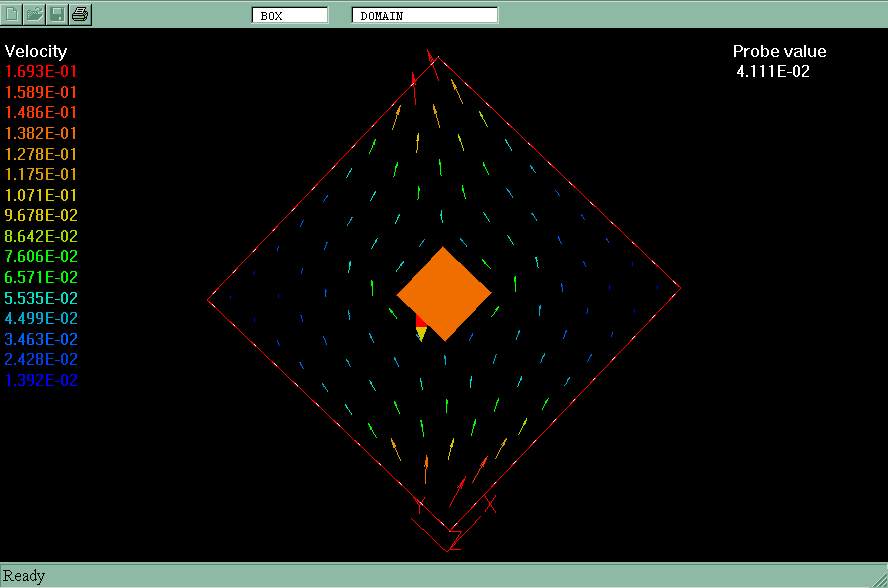

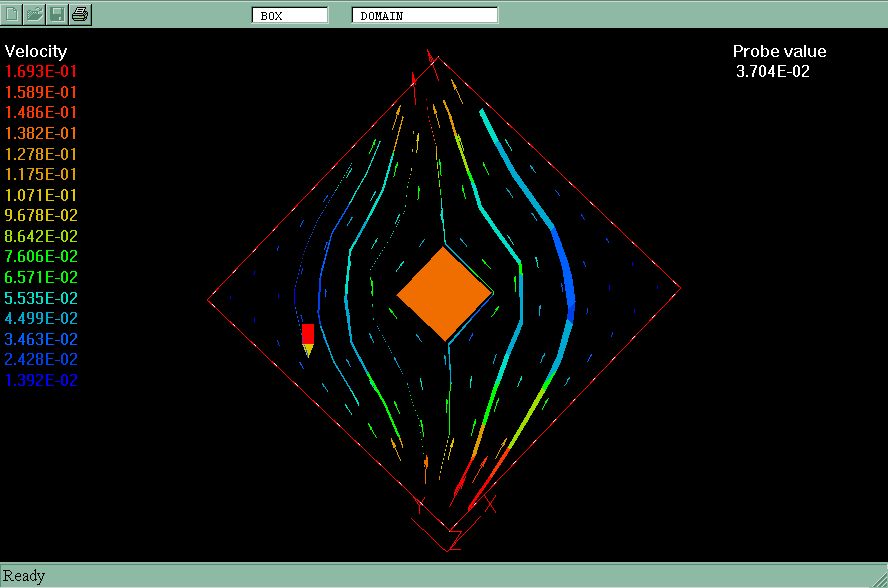

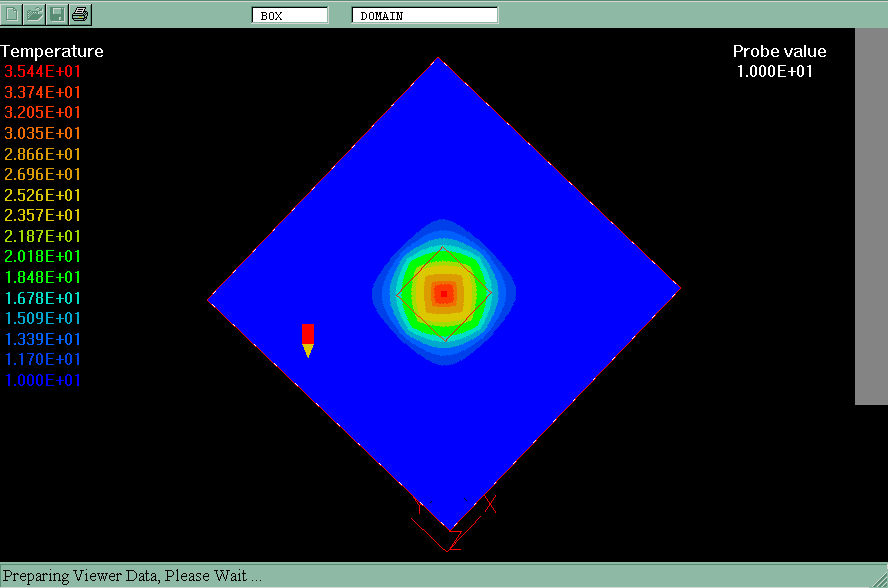

2. Tilted enclosure
