TITLE : HOTBOX EXAMPLE : NATURAL CONVECTION IN AN ENCLOSURE WITH SINGLE HEATING BLOCK
BY : CHAM Development Team - F Liu DATE : 1999 FOR : Demonstration Case PHOENICS Version : HOTBOX VR
NOTES : Three-dimensional, steady flow, natural convection, conjugate heat transfer, Cartesian computational grid
Description of the problem:

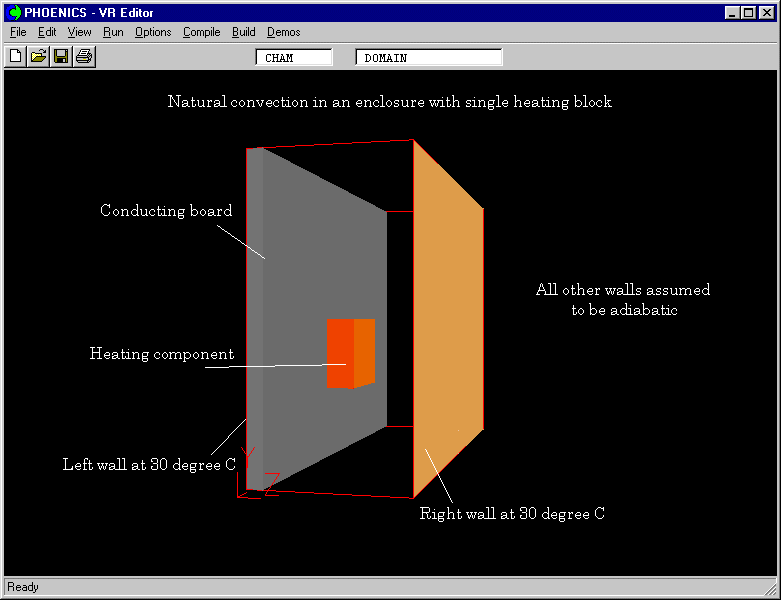

- The enclosure has a heating component and a conducting board mounted on one boundary. The dimensions of the enclosure are 30mm(L) x 20mm(H) x 10mm(W); the component is of 6mm x 5mm x 2mm and mounted on the conducting board, whose thickness is 1mm. click here to see Overall view of the enclosure
- Both walls at z=0 and 10mm are fixed at 30°C; and all other walls are assumed adiabatic.
- Thermal conductivities for the component, board and air are 30, 1 and 0.026 W/(m K), respectively.
- Turbulence is modelled by the LVEL method;
- Buoyancy effect is included using Boussinesq approximation; and
- Material properties are imported from the User-defined property file 'Props'.
All the pictures as shown below are created via the Virtual Reality Graphic Interface, a strong feature of HOTBOX-VR.
1. Velocity vectors

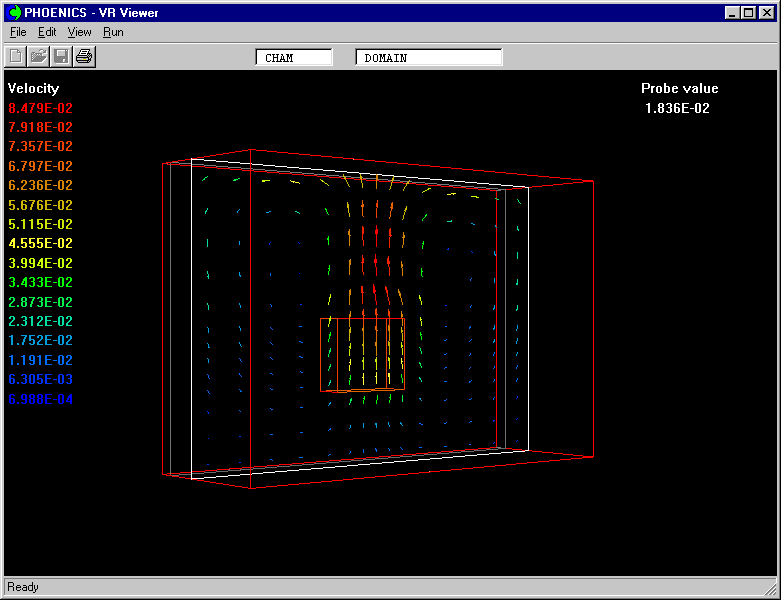

Velocity vector across the component in z direction
Velocity vector not across the component in z direction

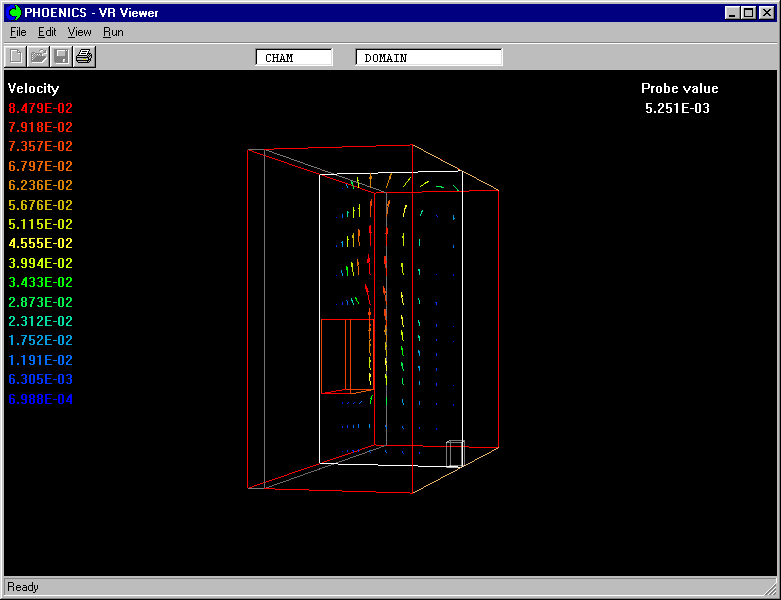

Velocity vector across the component in x direction
From the figures above, the velocity predicted is symmetric along the x mid-plane, which is also evident from the temperature and pressure contours followed. The most of air flow is circling within and near this mid-plane.
2. Temperature contours

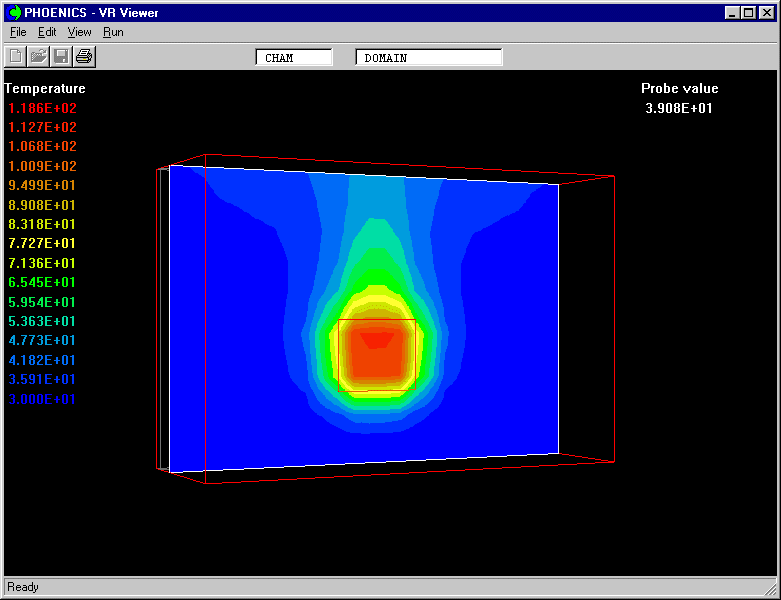

Temperature contour across the component in z direction

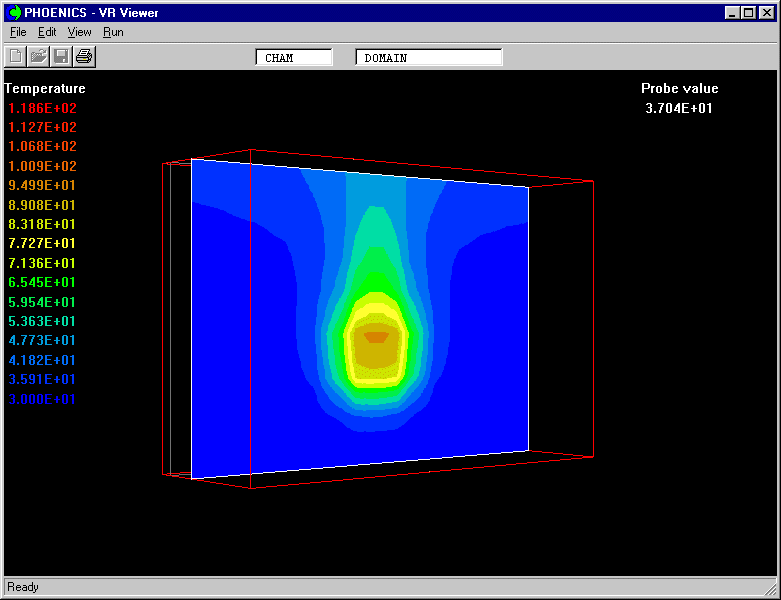

Temperature contour not across the component in z direction

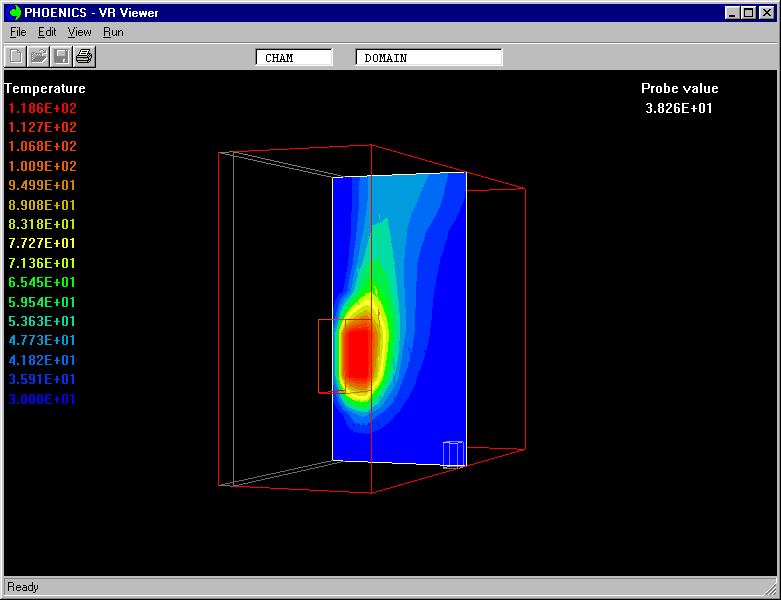

Temperature contour across the component in x direction
It is clearly seen that the circling air is cooling the component and the temperature distribution around it is very much following the flow pattern.
3. Pressure contours

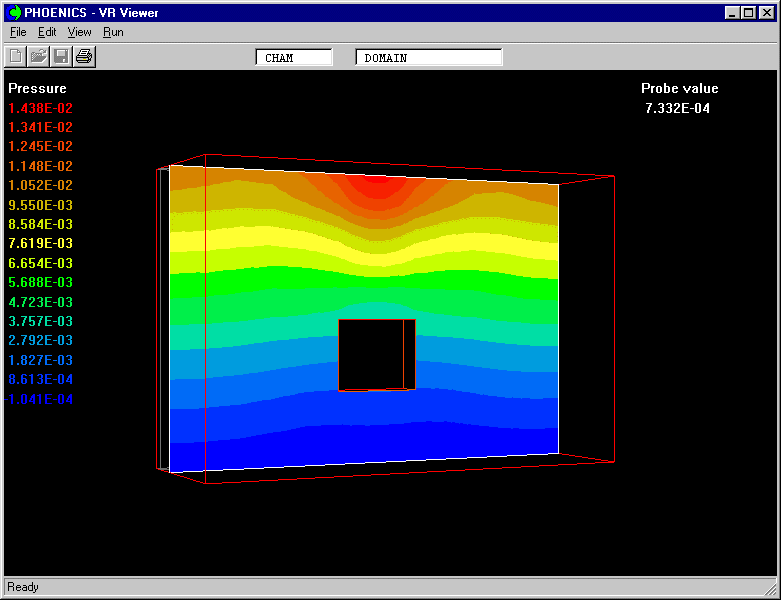

Pressure contour across the component in z direction

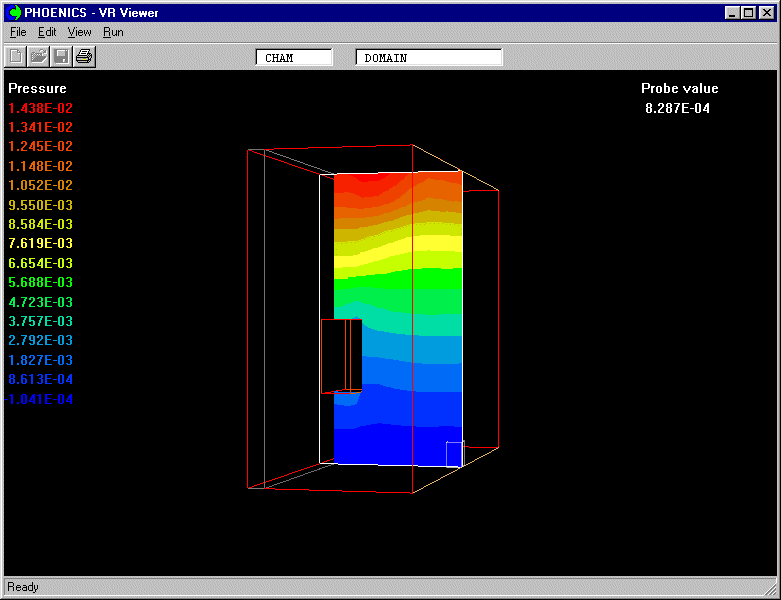

Pressure contour across the component in x direction
- This case demonstrates how HOTBOX-VR handles natural convection flow and heat transfer in an enclosure with heating block;
- The configuration could be used as a component inside a complex electronic equipment; and
