TITLE : Cooling of two fully populated PCB's
BY : CHAM Development Team - Sergei Zhubrin
DATE : 1999
FOR : Demonstration case
PHOENICS version: HOTBOX-99
DETAILS :

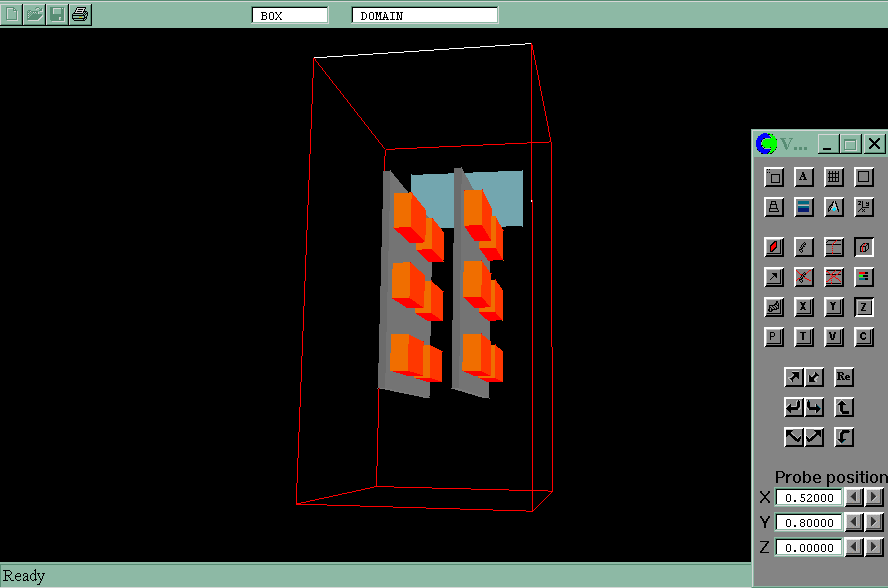

This case represents a real-life model of an electronic box. It has 12
chips dissipating heat and mounted on two PCBs. Flow is forced through
the box by a fan. Turbulence is modelled using LVEL turbulence model.

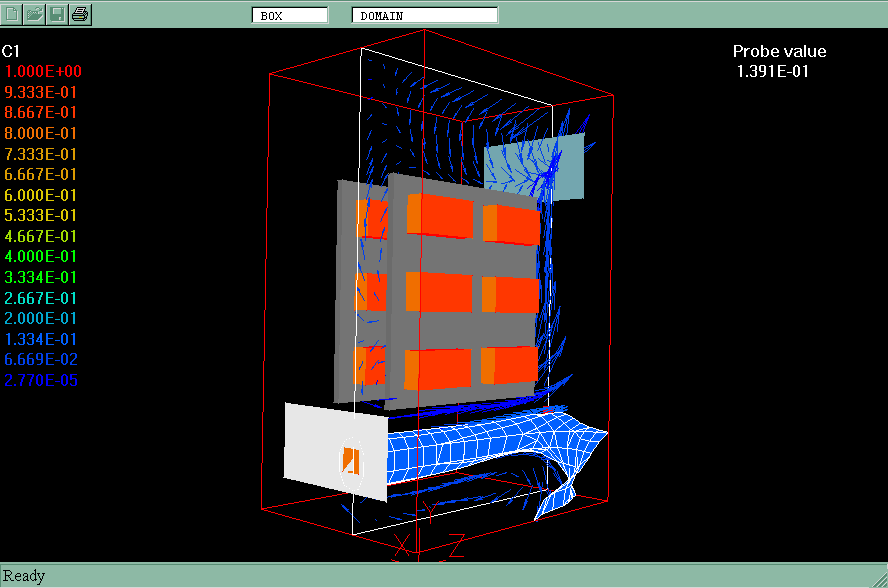

A computational 'smoke' concentration distribution is calculated to
see how cooling flow penetrates the recirculation region.

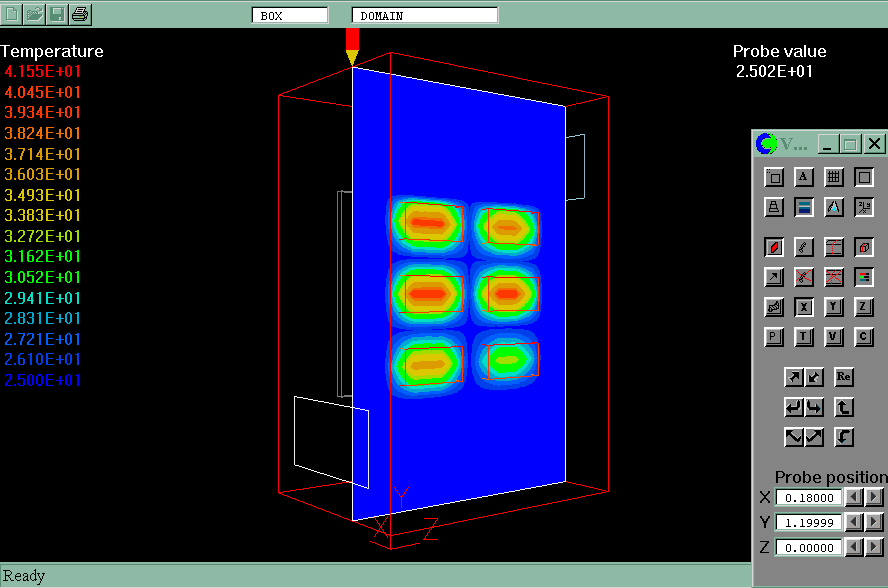

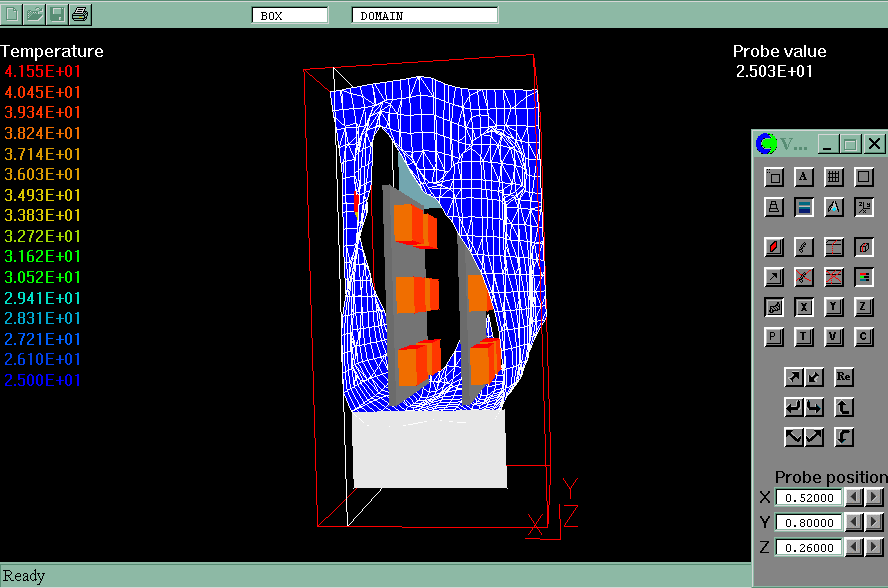

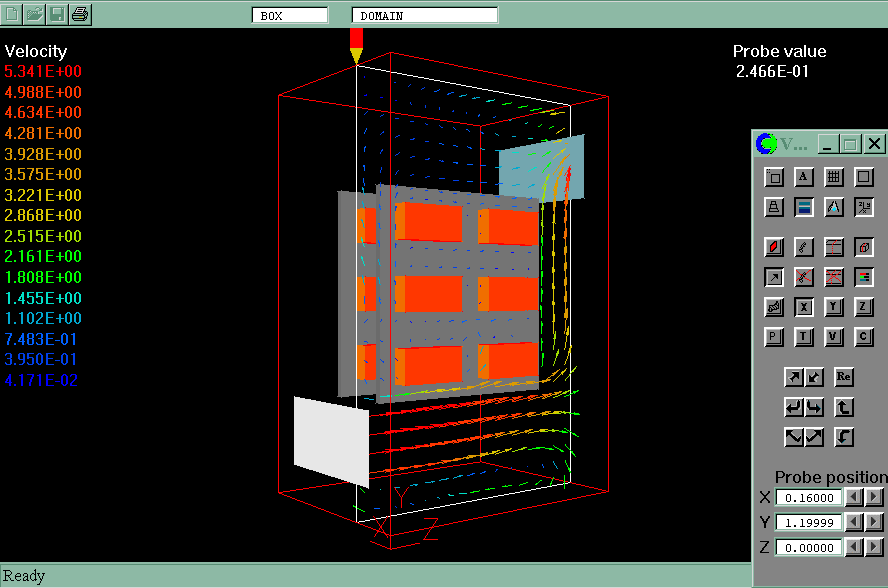

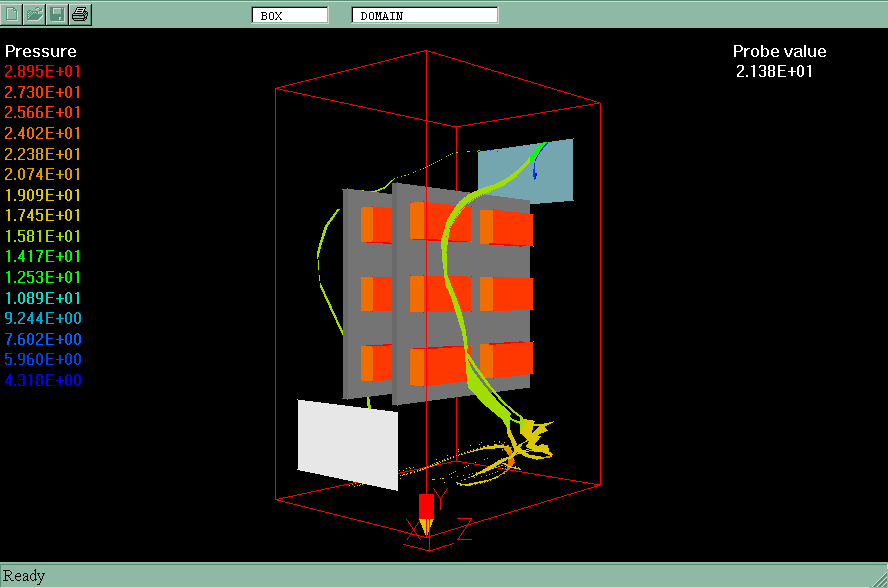

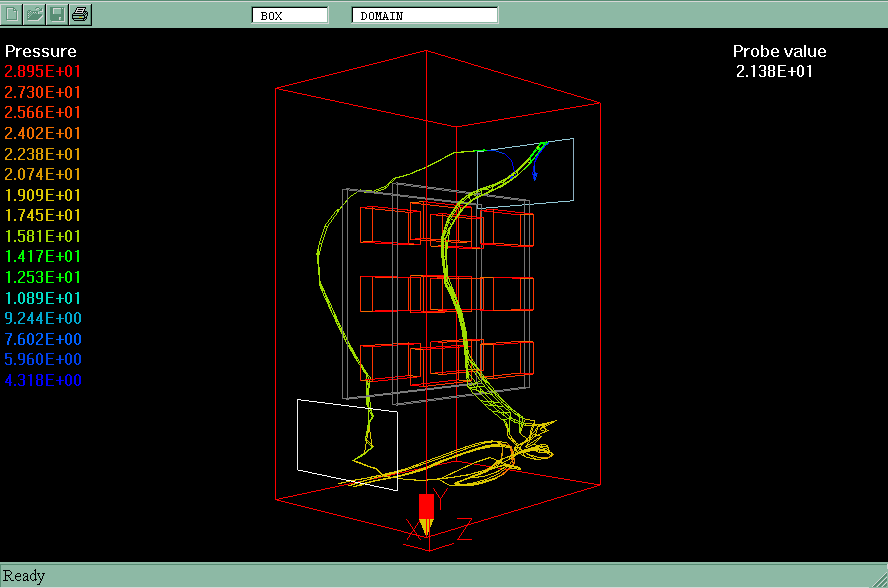

Pictures are as follows :
