Cooling of a system rack

TITLE : Heat and air flow distribution in a system rack

BY : CHAM Development Team

DATE : 2023

FOR : Demonstration case

PHOENICS version: HOTBOX-2022

DETAILS :

This case represents a real-life electronic system rack. The model is composed of the number of fully blocked and porous plates, solid elements, 5 apertures and fan; fan is a part of the equipment within the rack. Turbulence model used is LVEL model. System components generate heat and the simulation is used to find the maximum temperature.

Pictures are as follows :

System features

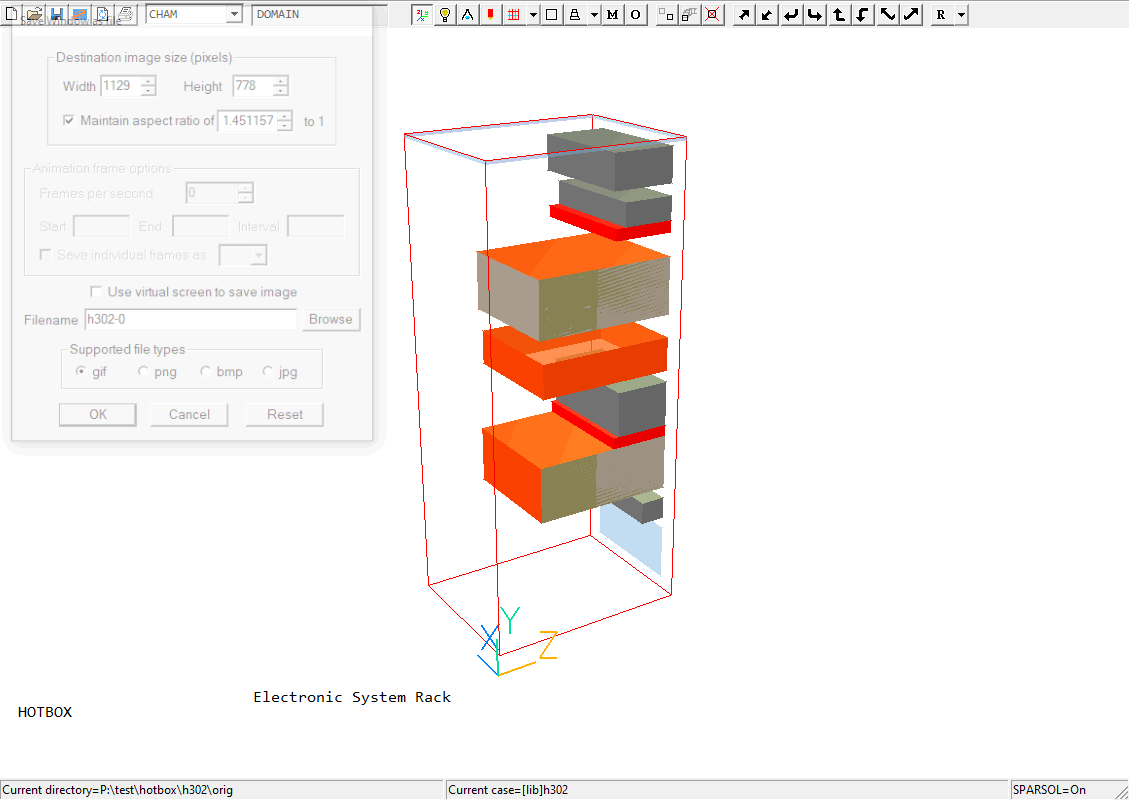

Rack geometry.

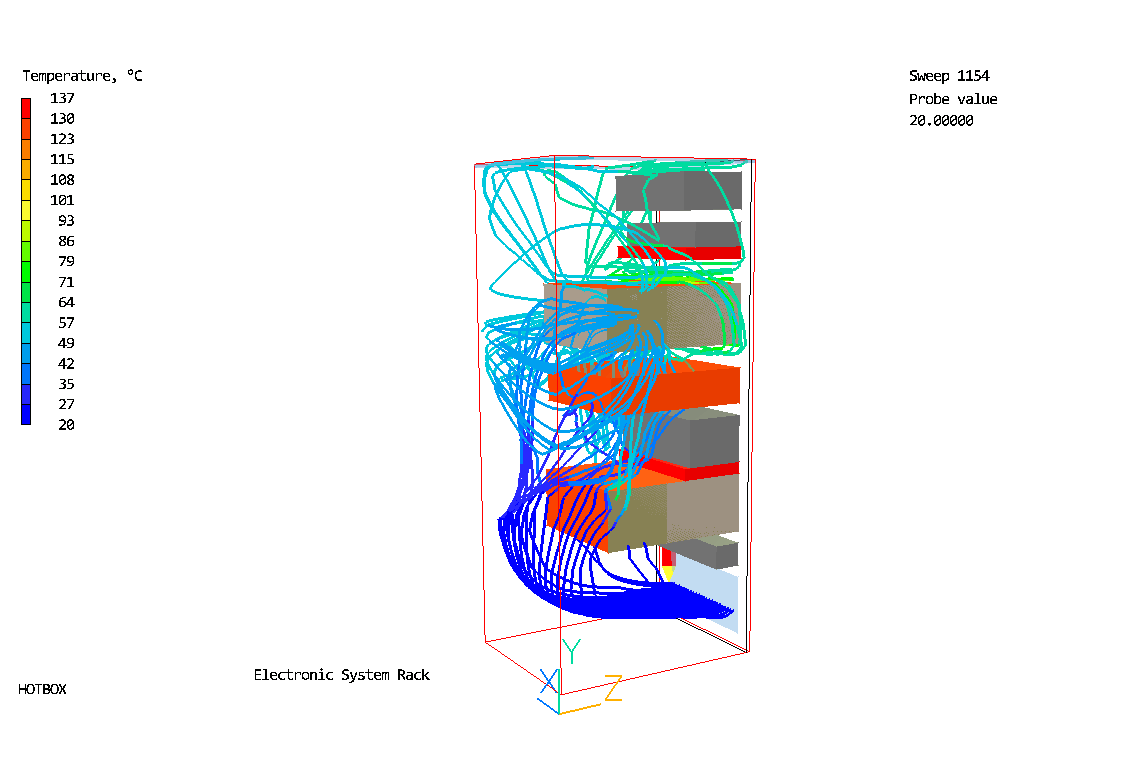

Air flow pattern in the rack.

Air velocity vectors

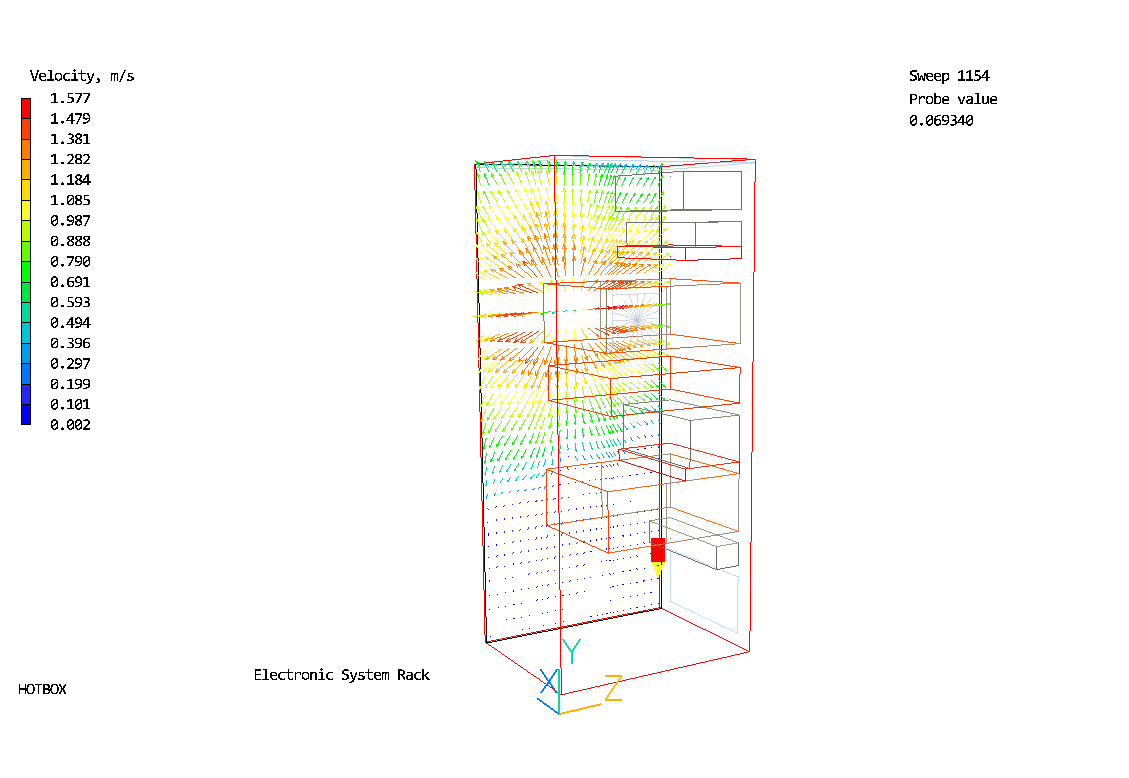

Velocity vectors at the rear wall.

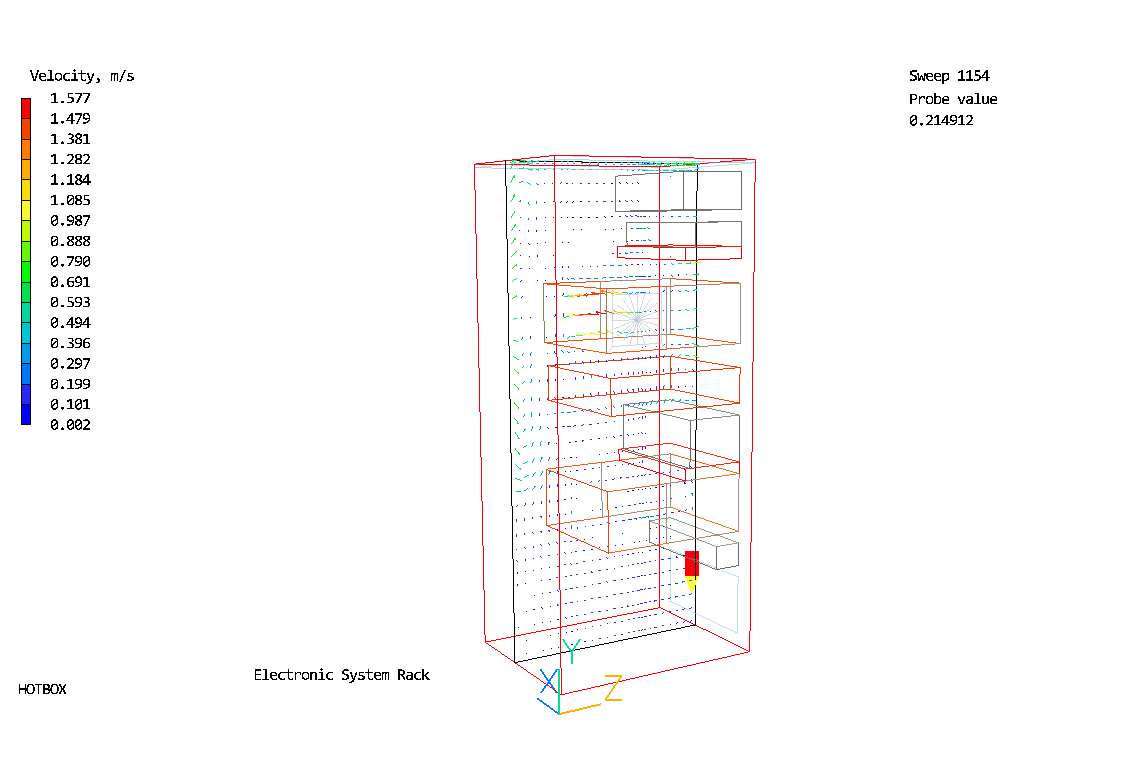

Velocity vectors at the middle plane.

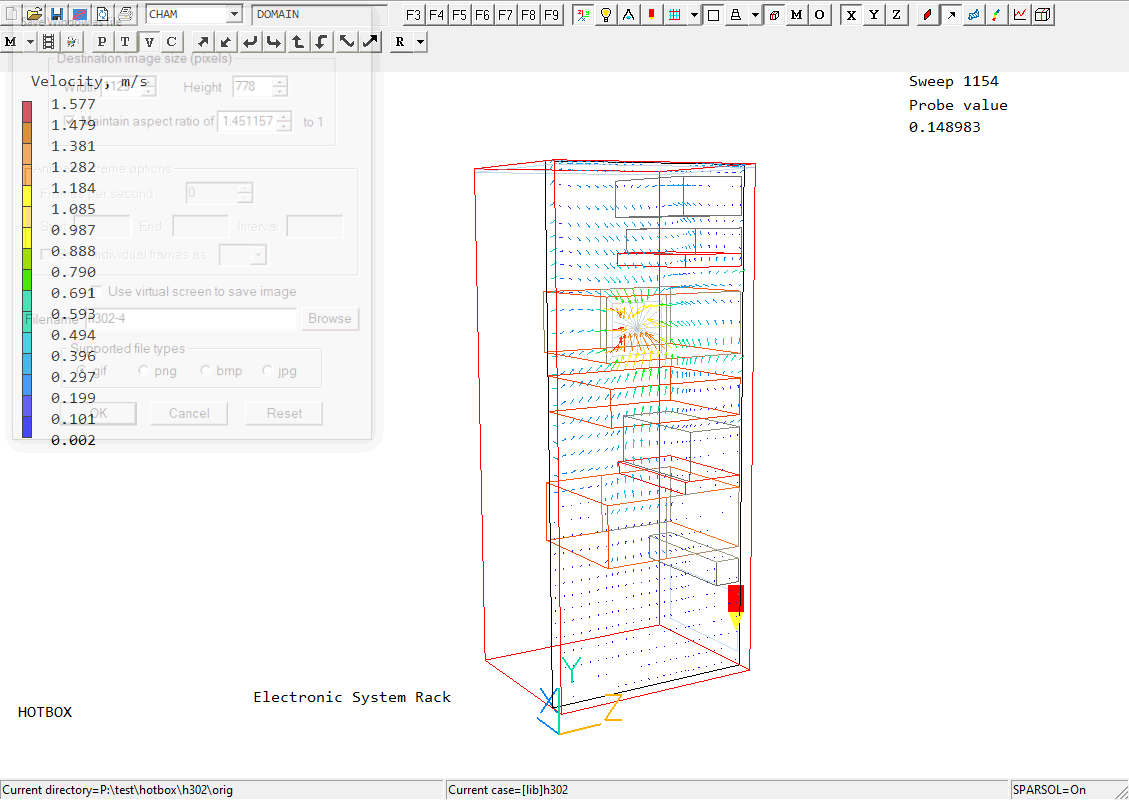

Velocity vectors at the fan plane.
Temperature contours

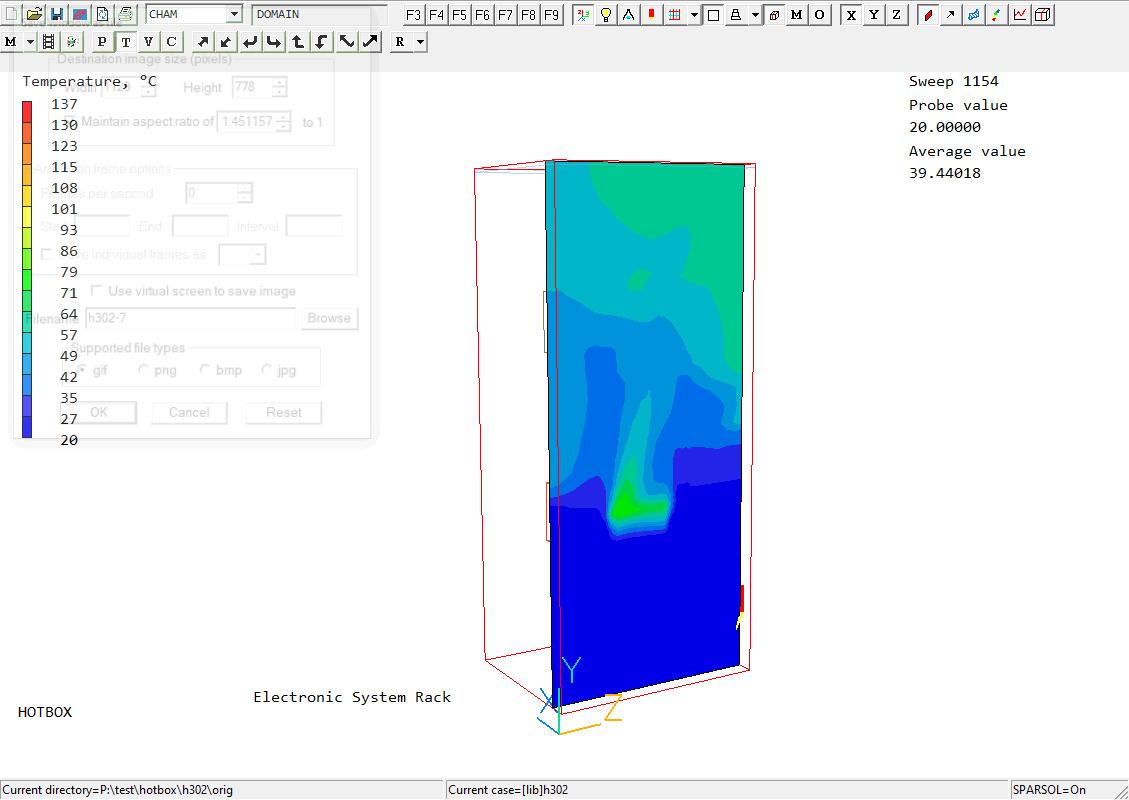

Air temperatures at the rear wall.

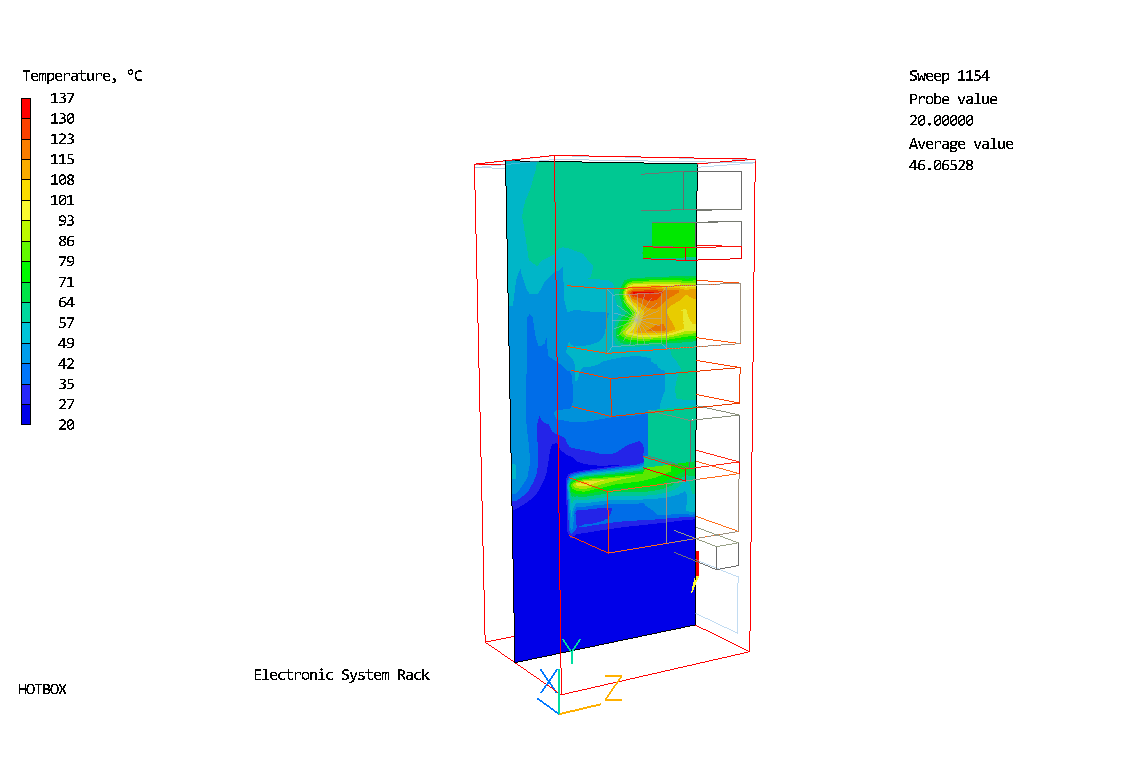

Air/solid temperatures at the middle plane.

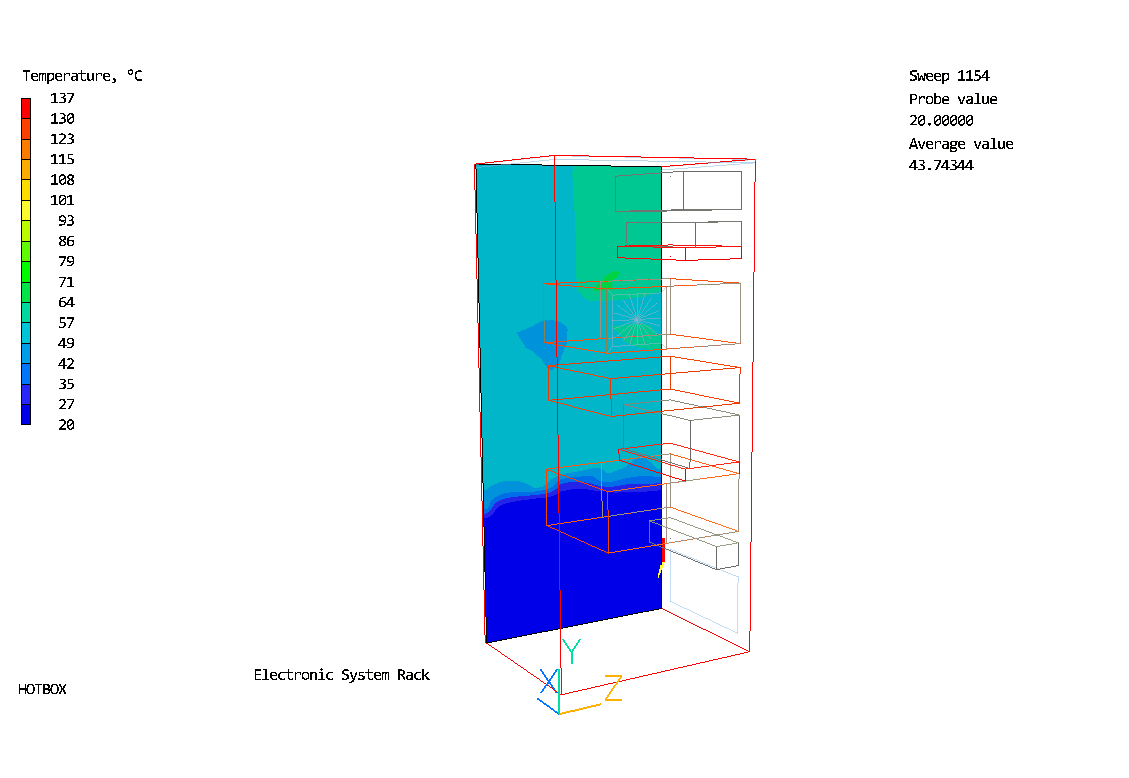

Air temperatures at the fan plane.

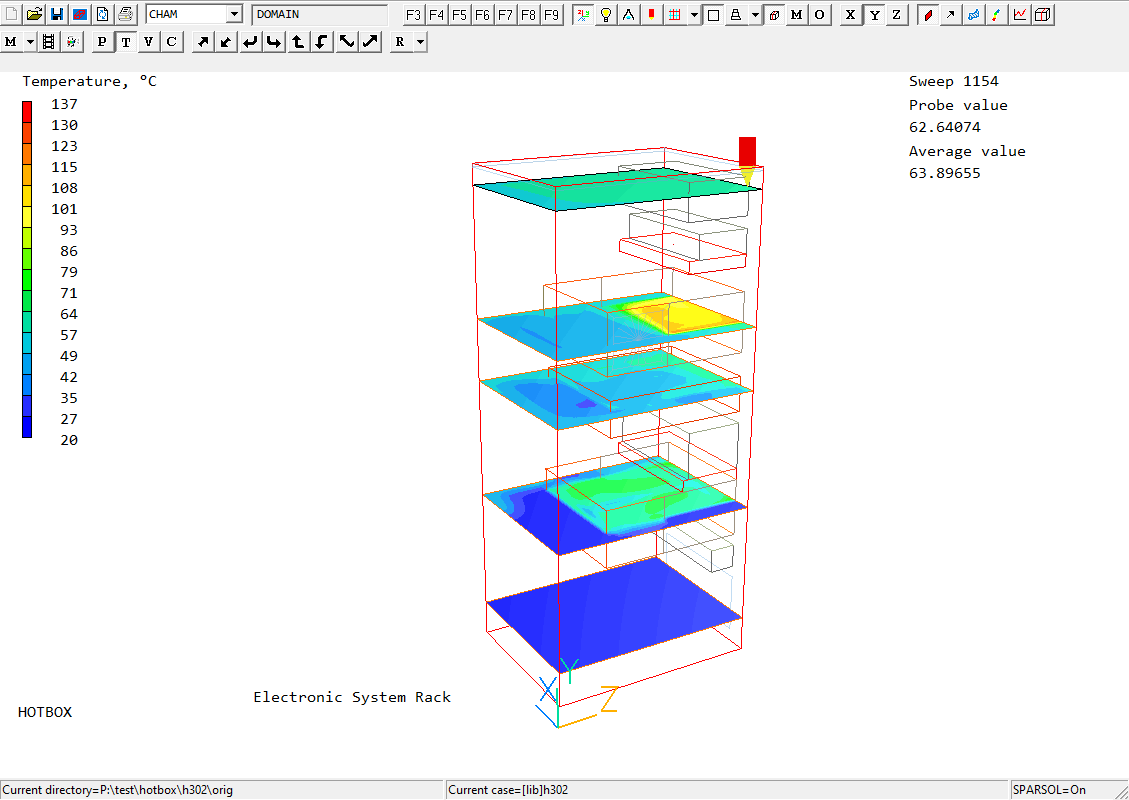

Air/solid temperatures at cross planes.

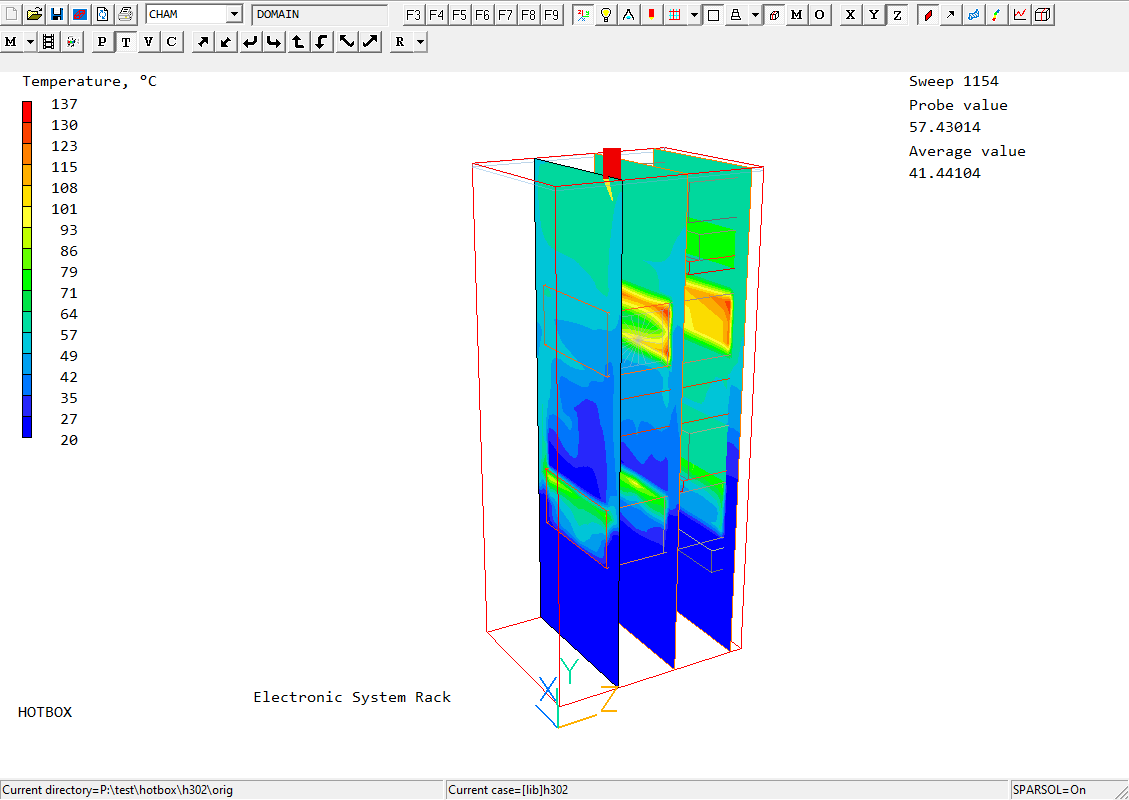

Air/solid temperatures at vertical planes.
