TITLE : Convective cooling of a telephon exchange unit

BY : CHAM Development Team - Sergei Zhubrin

DATE : 1999

FOR : Demonstration case

PHOENICS version: HOTBOX-99

DETAILS :

This case represents a real-life telephone exchange unit. The model is set up of 80 plates (electronic exchnage units), 1 solid (power supplu unit), 2 apertures and one internal fan. Turbulence model used LVEL. Electronic units generate heat and simulation is carried out to locate the hot spots.

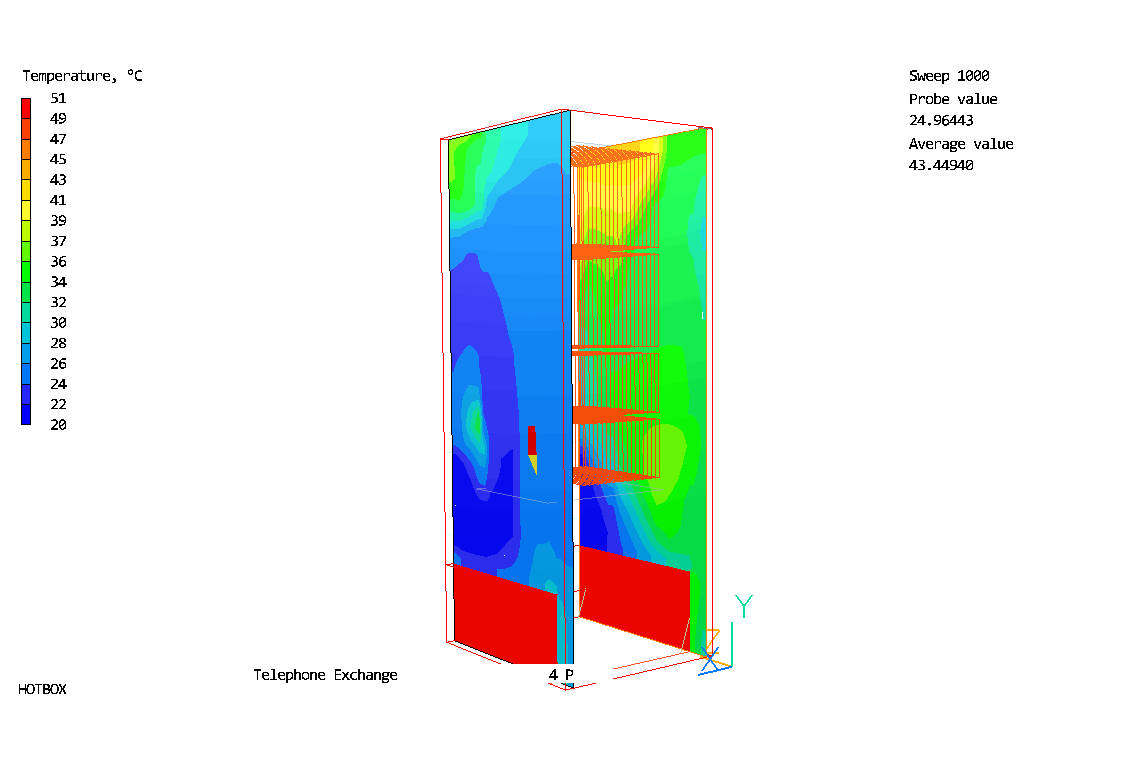

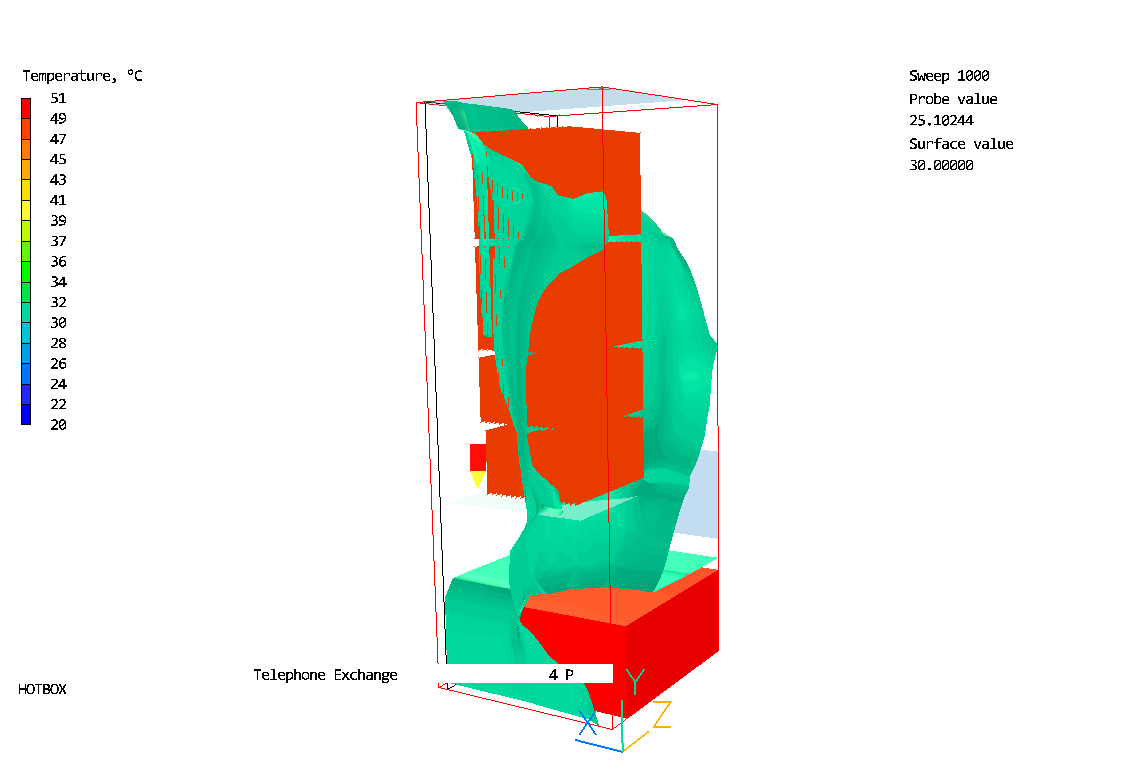

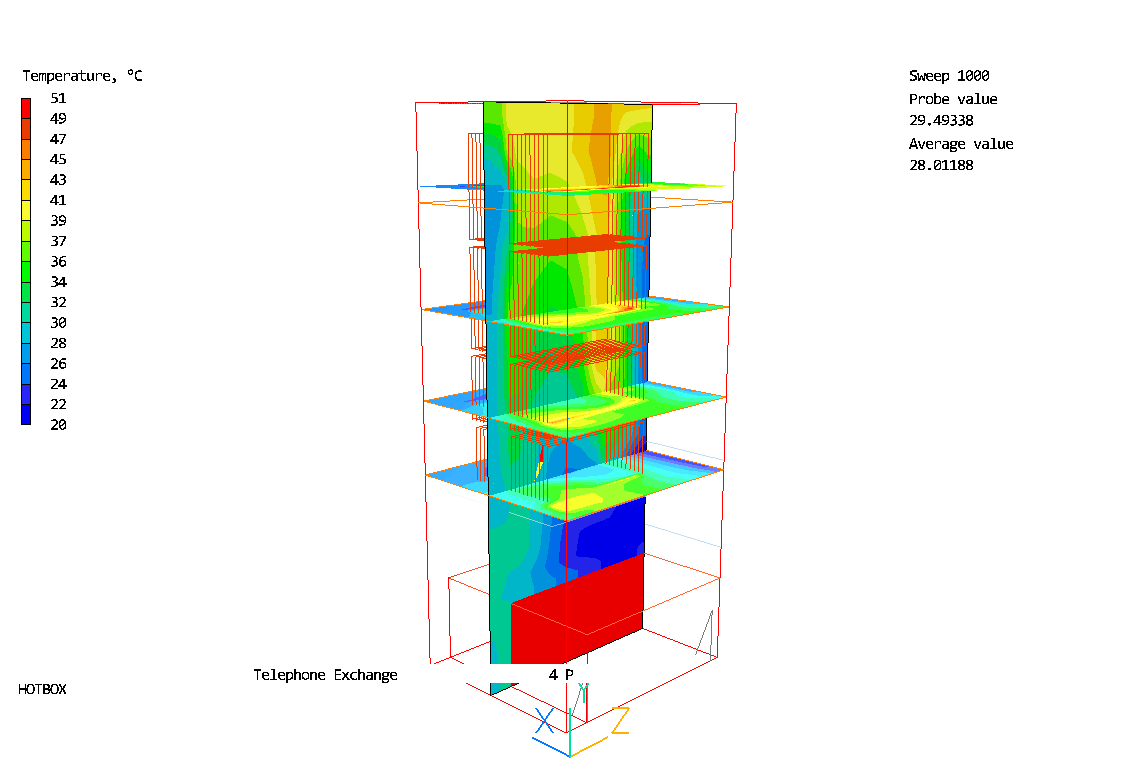

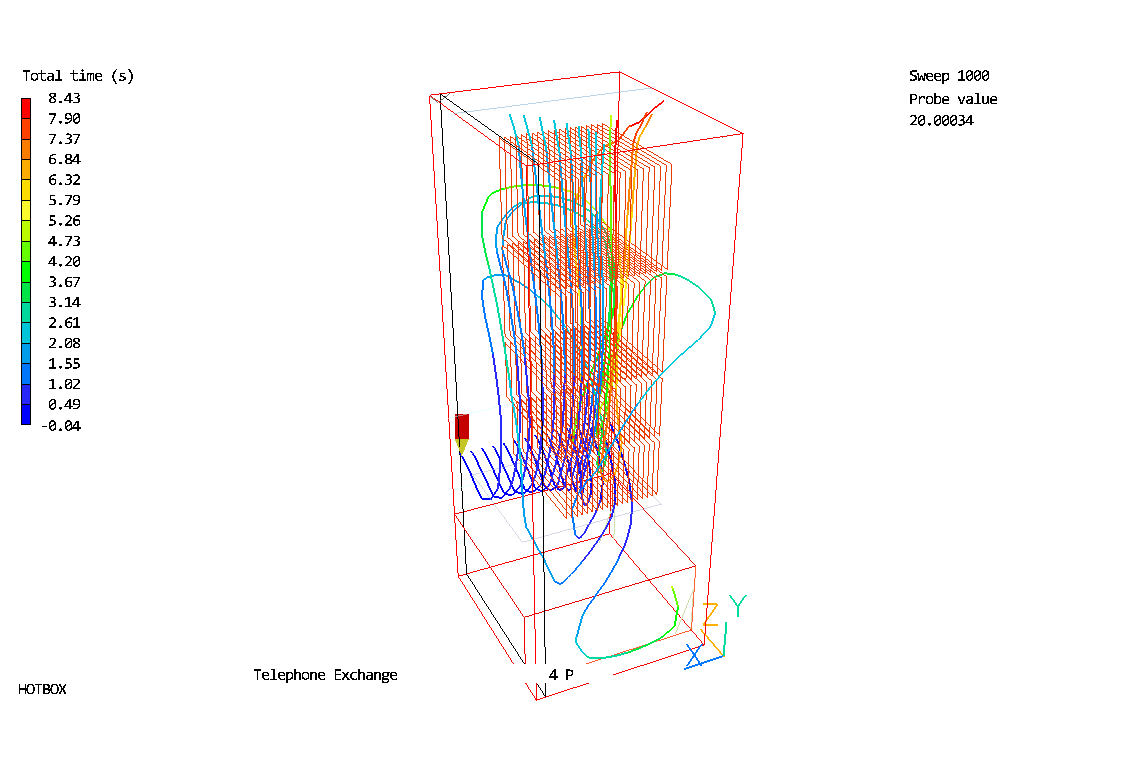

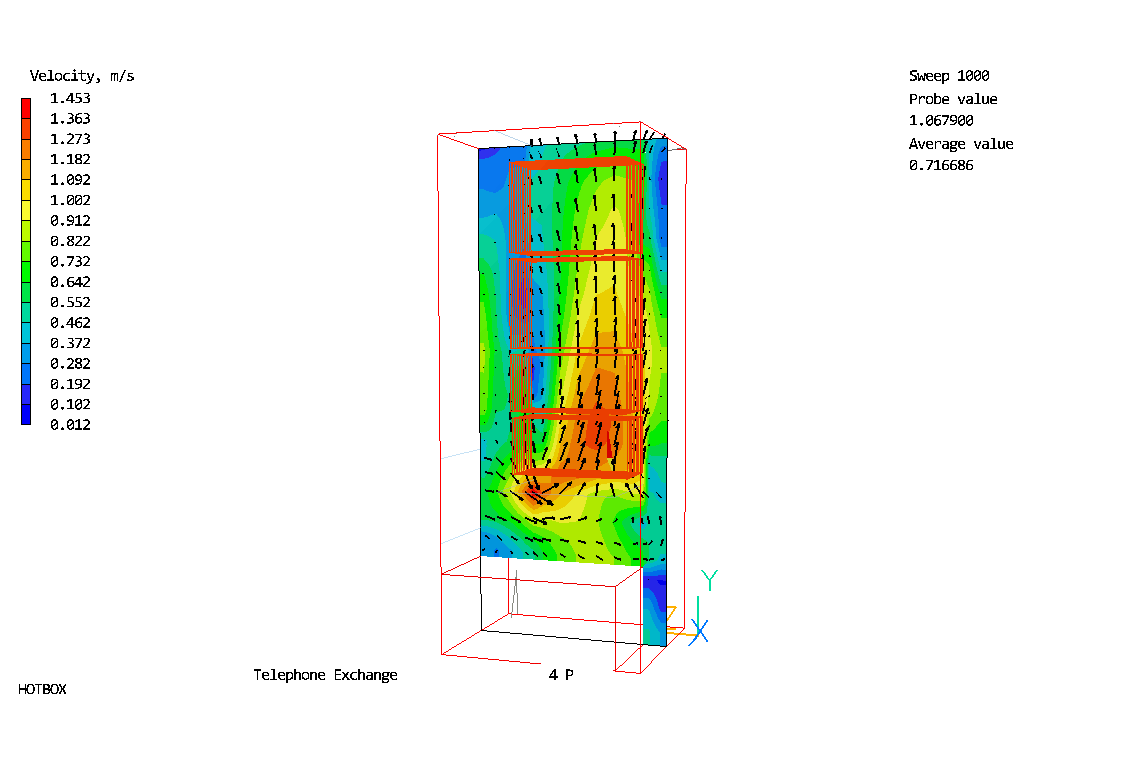

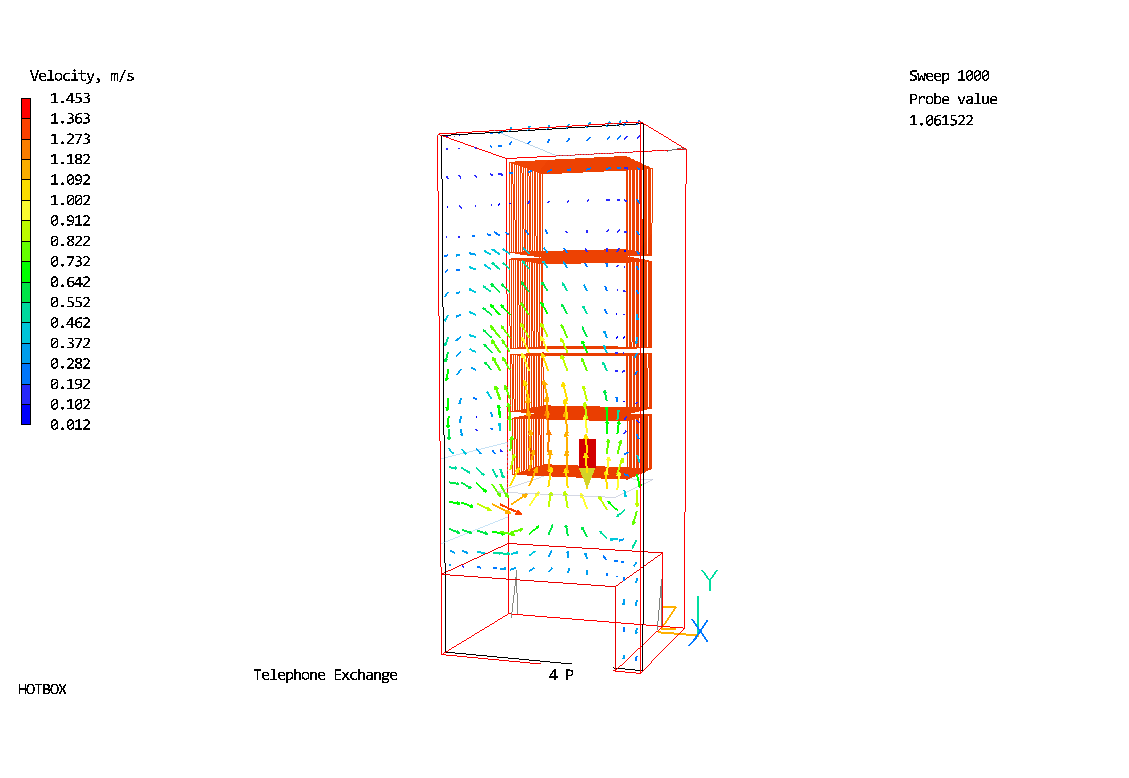

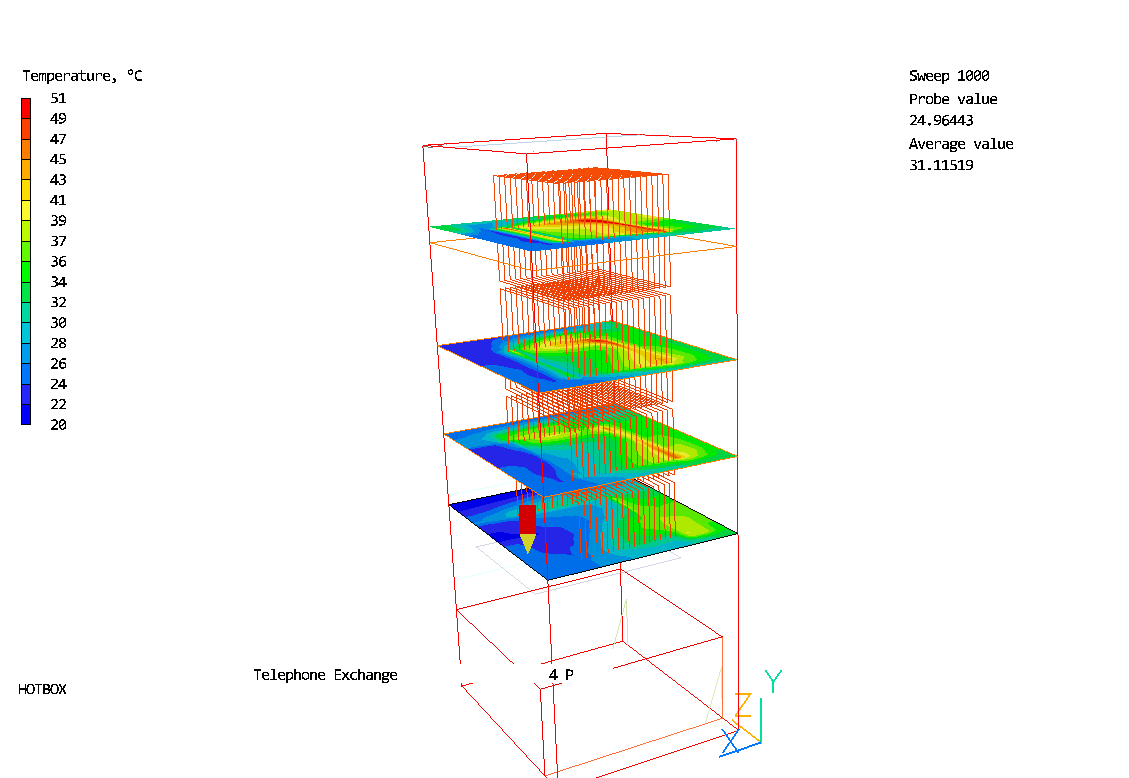

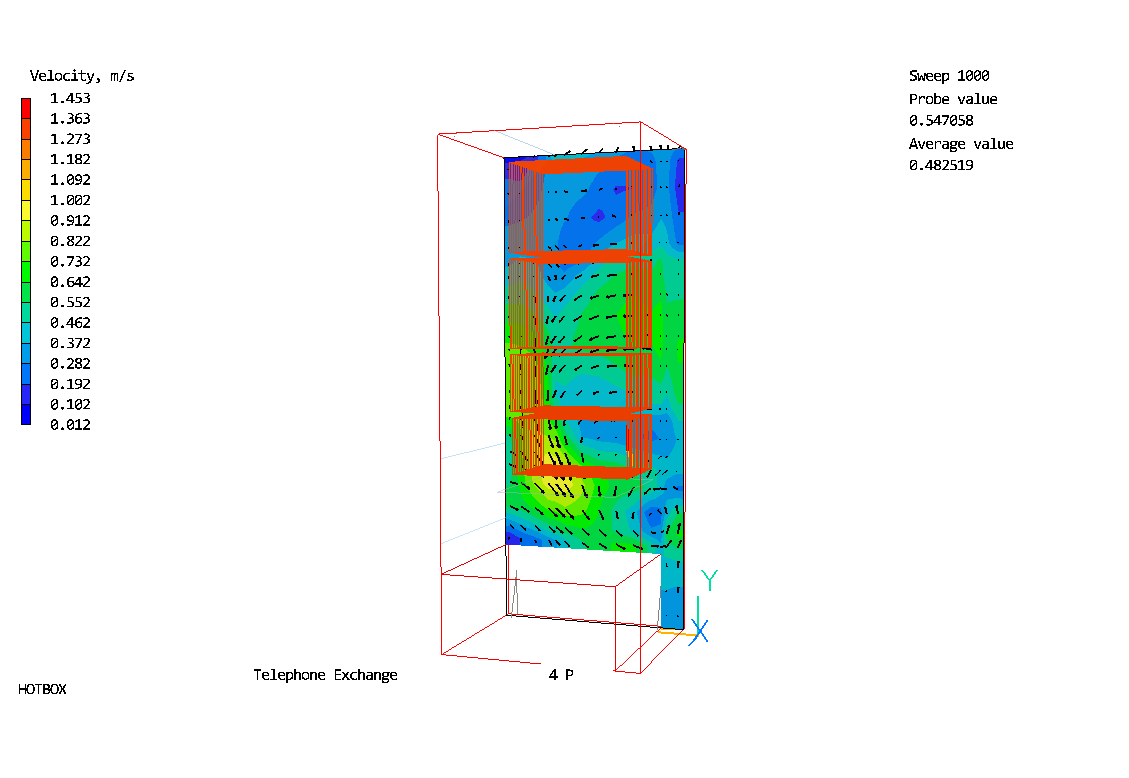

Pictures are as follows :
