Part 3. BFC GRID GENERATION EXAMPLES

Contents

  1. Flow around splitter plate
  2. 2D duct with bend and expansion
  3. Turnaround duct
  4. Flow over hill
  5. Valve

BFC grid generation examples Case 1

Case 1. Flow around splitter plate



BFC=T

GSET(D,1,15,15,1,2,3)

GSET(C,J8,F,J1,1,1,1,5,+,0,.6,0,INC,1.0)

GSET(T,J16,F,J8,1,1,1,5,1.0)

GSET(C,J8,F,J16,1,1,11,15,+,0,-.6,0,INC,1.0)

GSET(T,J8,F,J1,1,1,11,15,1.0)

GSET(T,K11,F,K6,1.0)

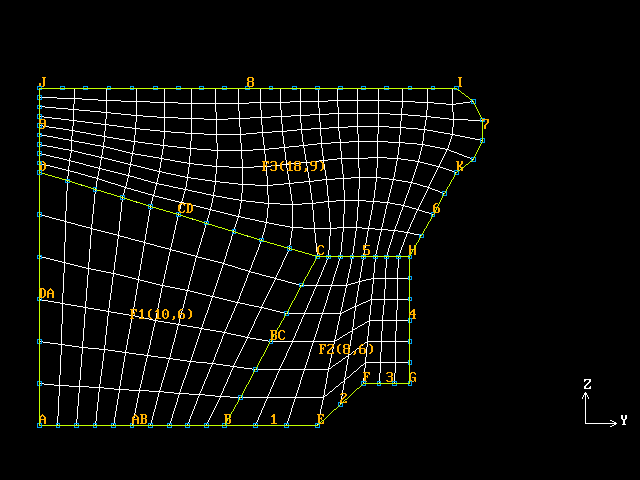

Fig d18

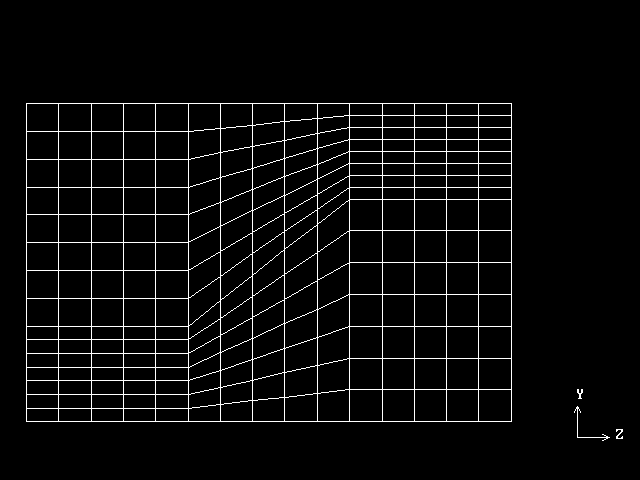

BFC grid generation examples Case 1



BFC=T

GSET(D,1,15,15,1,2,3)

Fig d19

BFC grid generation examples Case 1

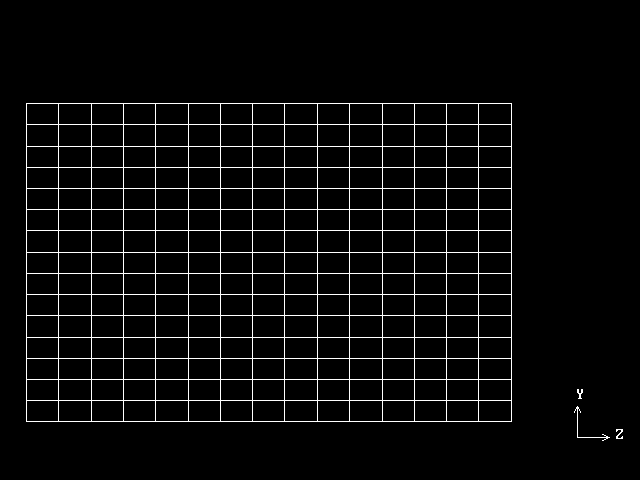

BFC=T

GSET(D,1,15,15,1,2,3)

GSET(C,J8,F,J1,1,1,1,5,+,0,.6,0,INC,1.0)

Fig d20

BFC grid generation examples Case 1

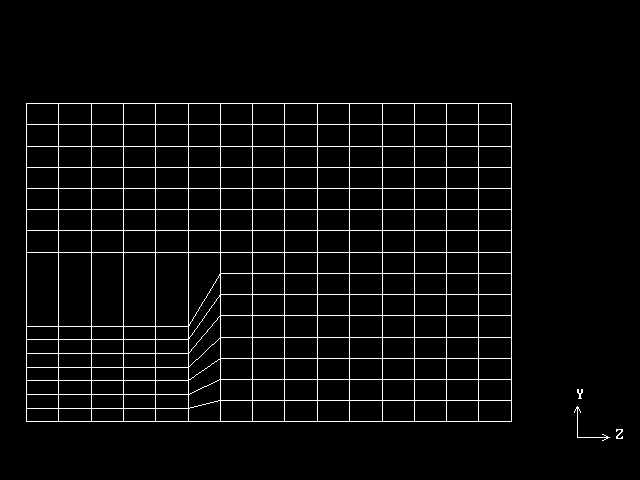

BFC=T

GSET(D,1,15,15,1,2,3)

GSET(C,J8,F,J1,1,1,1,5,+,0,.6,0,INC,1.0)

GSET(T,J16,F,J8,1,1,1,5,1.0)

Fig d21

BFC grid generation examples Case 1

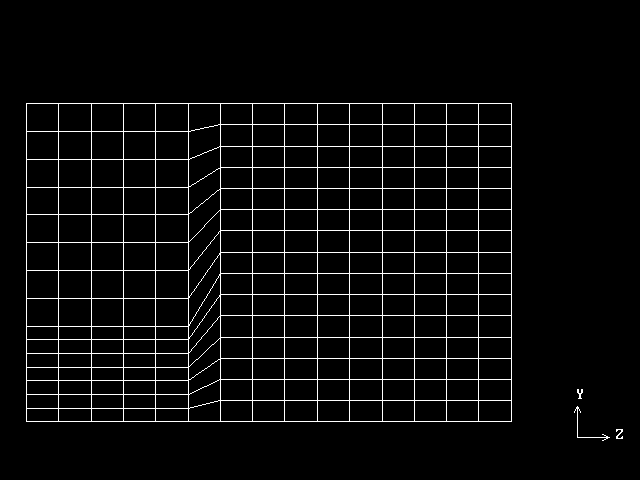

BFC=T

GSET(D,1,15,15,1,2,3)

GSET(C,J8,F,J1,1,1,1,5,+,0,.6,0,INC,1.0)

GSET(T,J16,F,J8,1,1,1,5,1.0)

GSET(C,J8,F,J16,1,1,11,15,+,0,-.6,0,INC,1.0)

Fig d22

BFC grid generation examples Case 1

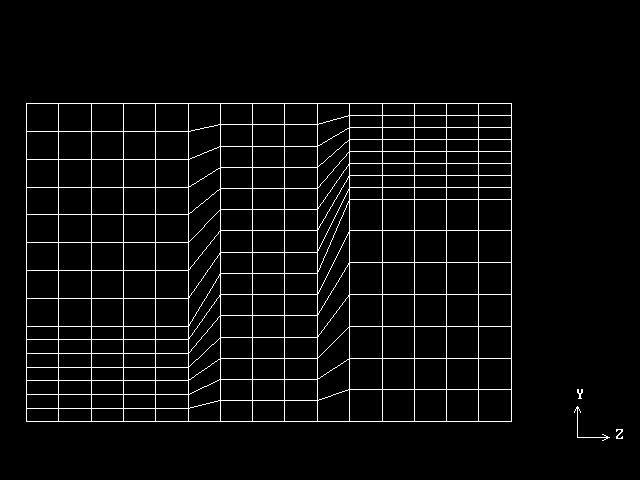

BFC=T

GSET(D,1,15,15,1,2,3)

GSET(C,J8,F,J1,1,1,1,5,+,0,.6,0,INC,1.0)

GSET(T,J16,F,J8,1,1,1,5,1.0)

GSET(C,J8,F,J16,1,1,11,15,+,0,-.6,0,INC,1.0)

GSET(T,J8,F,J1,1,1,11,15,1.0)

Fig d23

BFC grid generation examples Case 1



BFC=T

GSET(D,1,15,15,1,2,3)

GSET(C,J8,F,J1,1,1,1,5,+,0,.6,0,INC,1.0)

GSET(T,J16,F,J8,1,1,1,5,1.0)

GSET(C,J8,F,J16,1,1,11,15,+,0,-.6,0,INC,1.0)

GSET(T,J8,F,J1,1,1,11,15,1.0)

GSET(T,K11,F,K6,1.0)

Fig d24

BFC grid generation examples Case 2

Case 2. 2D duct with bend and expansion



BFC=T

GSET(D,30,8,1,30.,2.,1.)

GSET(C,I11,F,I6,RZ,3.1416/2,5,6,INC,1)

GSET(C,I31,F,I11,+,0,14,0,INC,1)

GSET(C,J1,F,J1,16,20,1,1,+,2,0,0)

GSET(C,J9,F,J1,16,20,1,1,+,-6,0,0,INC,1)

GSET(T,I16,F,I11,1.0)

GSET(T,I26,F,I21,1.0)

Fig d25

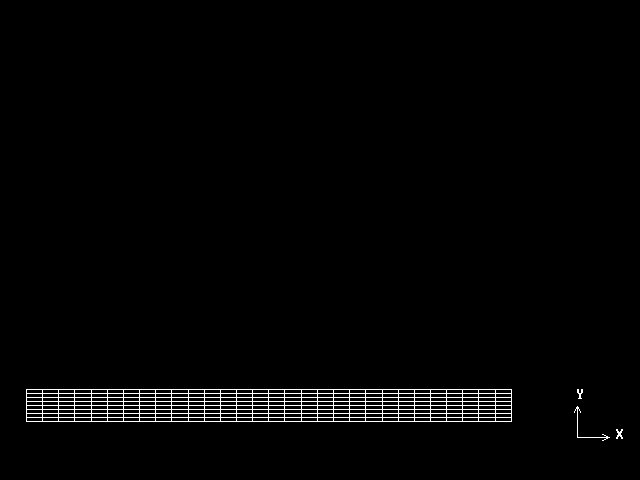

BFC grid generation examples Case 2



BFC=T

GSET(D,30,8,1,30.,2.,1.)

Fig d26

BFC grid generation examples Case 2

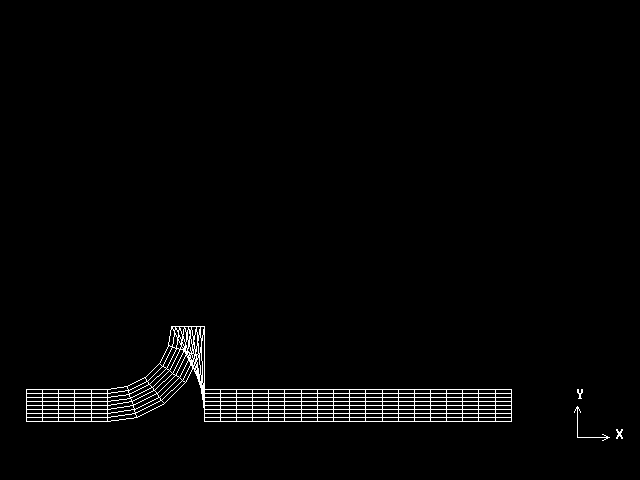

BFC=T

GSET(D,30,8,1,30.,2.,1.)

GSET(C,I11,F,I6,RZ,3.1416/2,5,6,INC,1)

Fig d27

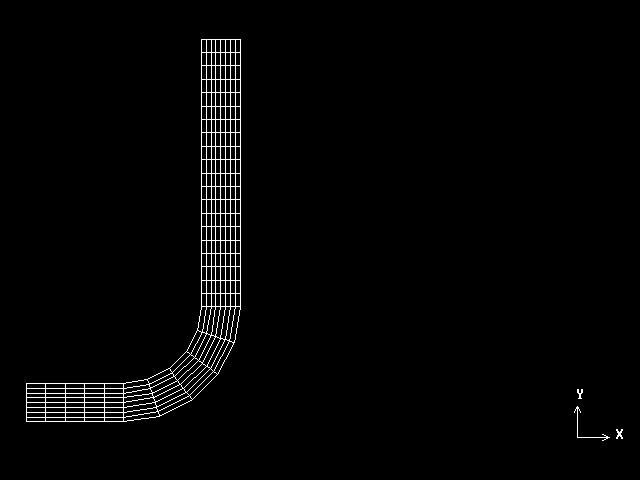

BFC grid generation examples Case 2



BFC=T

GSET(D,30,8,1,30.,2.,1.)

GSET(C,I11,F,I6,RZ,3.1416/2,5,6,INC,1)

GSET(C,I31,F,I11,+,0,14,0,INC,1)

Fig d28

BFC grid generation examples Case 2



BFC=T

GSET(D,30,8,1,30.,2.,1.)

GSET(C,I11,F,I6,RZ,3.1416/2,5,6,INC,1)

GSET(C,I31,F,I11,+,0,14,0,INC,1)

GSET(C,J1,F,J1,16,20,1,1,+,2,0,0) GSET(C,J9,F,J1,16,20,1,1,+,-6,0,0,INC,1)

Fig d29

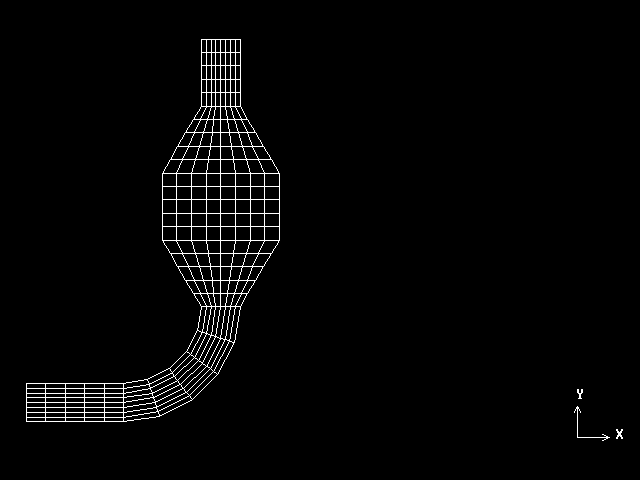

BFC grid generation examples Case 2



BFC=T

GSET(D,30,8,1,30.,2.,1.)

GSET(C,I11,F,I6,RZ,3.1416/2,5,6,INC,1)

GSET(C,I31,F,I11,+,0,14,0,INC,1)

GSET(C,J1,F,J1,16,20,1,1,+,2,0,0)

GSET(C,J9,F,J1,16,20,1,1,+,-6,0,0,INC,1)

GSET(T,I16,F,I11,1.0) GSET(T,I26,F,I21,1.0)

Fig d30

BFC grid generation examples Case 3

Case 3. Turnaround duct



BFC=T

GSET(D,1,10,20,5.0,30.0,100.0)

GSET(C,K21,F,K21,+,0.0,110.0,0.0)

GSET(C,K17,F,K21,+,0.0,0.0,-100.0,INC,1.0)

GSET(C,K5,F,K17,RX,-3.14159,95.0,0.0,INC,1.0)

GSET(C,K1,F,K5,+,0.0,0.0,100.0,INC,1.0)

Fig d31

BFC grid generation examples Case 3



BFC=T

GSET(D,1,10,20,5.0,30.0,100.0)

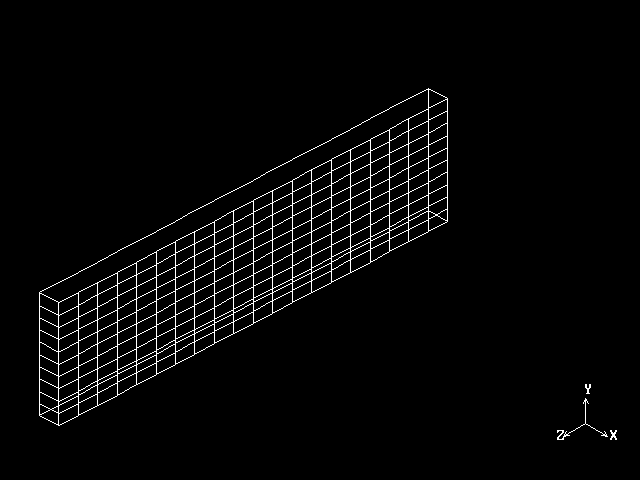

Set the grid dimension as:



        NX=1

        NY=10

        NZ=20

and the grid extensions are:



        XULAST=  5.0 meters

        YVLAST= 30.0 meters

        ZWLAST=100.0 meters

Fig d32

BFC grid generation examples Case 3



BFC=T

GSET(D,1,10,20,5.0,30.0,100.0)

0.0,110.0,0.0)

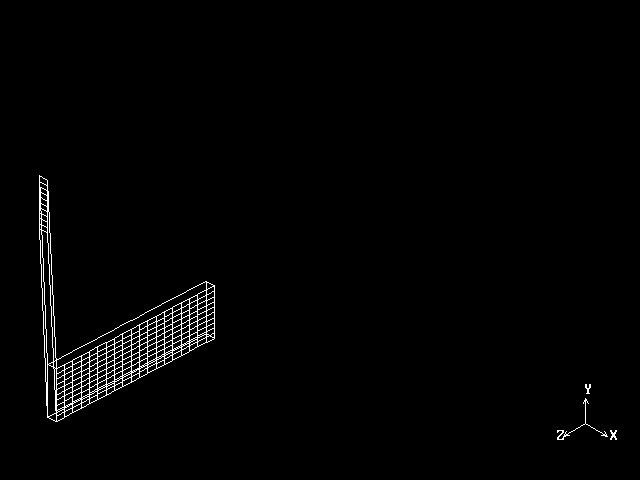

Move grid plane K21 to a new position which is 110.0 meter away in y direction from its old position.

Fig d33

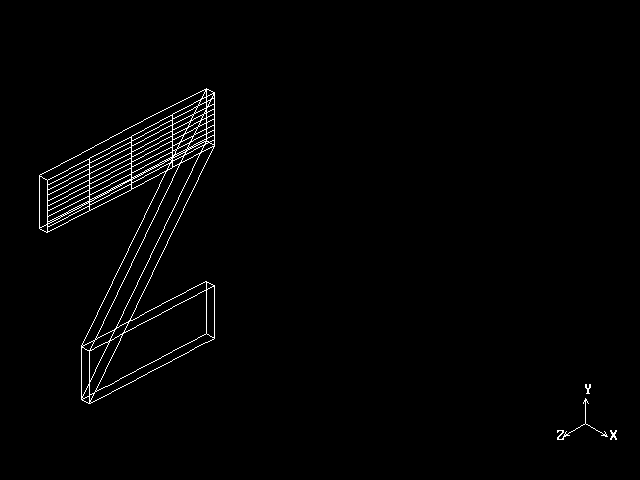

BFC grid generation examples Case 3



BFC=T

GSET(D,1,10,20,5.0,30.0,100.0)

GSET(C,K21,F,K21,+,0.0,110.0,0.0)

GSET(C,K17,F,K21,+,0.0,0.0,-100.0,INC,1.0)

Relate to K21 plane, set K17 plane to be -100.0 meter away in X direction and set the intermediat planes (i.e. K18, K19, K20 planes) with a uniform distribution.

Fig d34

BFC grid generation examples Case 3



BFC=T

GSET(D,1,10,20,5.0,30.0,100.0)

GSET(C,K21,F,K21,+,0.0,110.0,0.0)

GSET(C,K17,F,K21,+,0.0,0.0,-100.0,INC,1.0)

GSET(C,K5,F,K17,RX,-3.14159,95.0,0.0,INC,1.0)

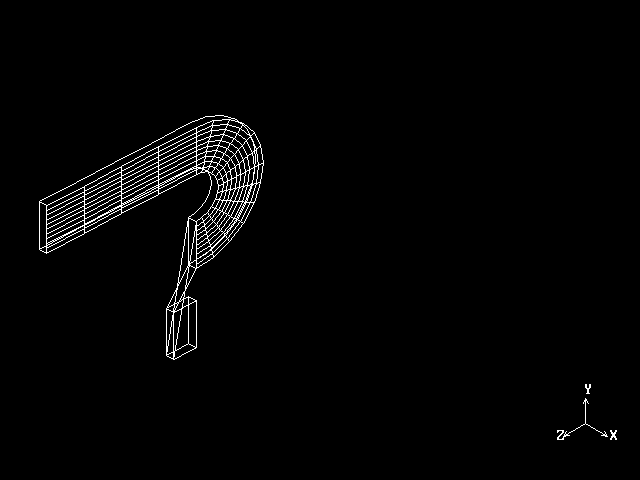

Set K5 plane to a position which is defined by rotation K17 plane -3.14159 radius around an axis which is in X direction and has an origine (95.0,0.0) in Y-Z coordinate plane.

Intermediate planes are also set by the rotating.

Fig d35

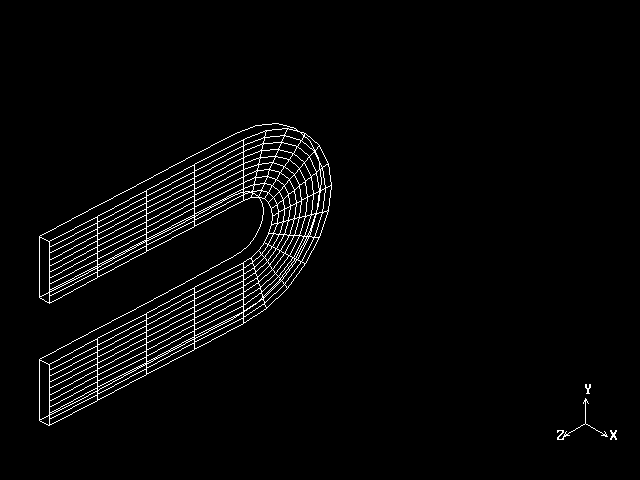

BFC grid generation examples Case 3



BFC=T

GSET(D,1,10,20,5.0,30.0,100.0)

GSET(C,K21,F,K21,+,0.0,110.0,0.0)

GSET(C,K17,F,K21,+,0.0,0.0,-100.0,INC,1.0)

GSET(C,K5,F,K17,RX,-3.14159,95.0,0.0,INC,1.0)

GSET(C,K1,F,K5,+,0.0,0.0,100.0,INC,1.0)

Complete the grid generation by pushing K5 plane in Z direction to form K1 plane. Intermediat planes are also set.

Fig d36

BFC grid generation examples Case 4

Case 4. Flow over hill



REAL(PI,DD,RR,AN,Z1,Y1,Y2);PI=3.14159;DD=0.5;RR=0.2;AN=40

AN=AN*PI/180.

Z1=RR*SIN(AN);Y1=DD*TAN(AN)-RR/COS(AN)+RR*COS(AN)

Y2=DD*TAN(AN)-RR/COS(AN)+RR

BFC=T

GSET(P,A,0,0,-1);GSET(P,B,0,0,1);GSET(P,C,0,1,1);GSET(P,D,0,1,-1)

GSET(P,E1,0,0,-DD);GSET(P,E2,0,Y1,-Z1)

GSET(P,E3,0,Y1,Z1);GSET(P,E4,0,0,DD)

GSET(L,A1,A,E1,4);GSET(L,12,E1,E2,4)

GSET(L,23,E2,E3,4,ARC,0,Y2,0)

GSET(L,34,E3,E4,4);GSET(L,4B,E4,B,4)

GSET(L,BC,B,C,10);GSET(L,CD,C,D,20)

GSET(L,DA,D,A,10)

GSET(F,F1,A,E1.E2.E3.E4,B,-

GSET(M,F1,+K+J,1,1,1,LAP30.FFFTFF)

GSET(C,I2,F,I1,+,.1,0,0);GSET(I)

Fig d37

BFC grid generation examples Case 4

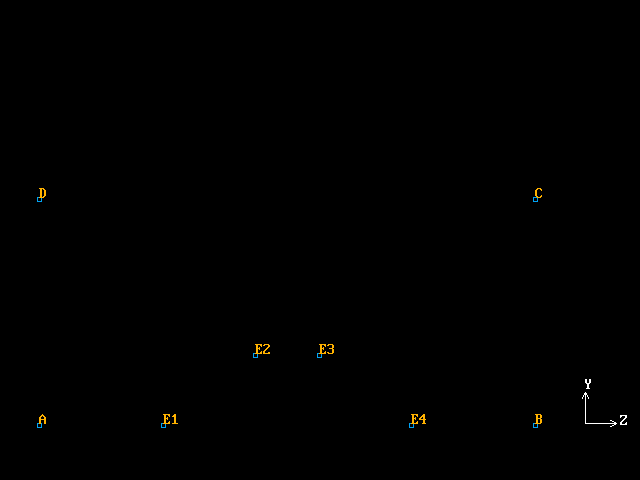

REAL(PI,DD,RR,AN,Z1,Y1,Y2)

PI=3.14159;DD=0.5;RR=0.2;AN=40

AN=AN*PI/180.

Z1=RR*SIN(AN)

Y1=DD*TAN(AN)-RR/COS(AN)+RR*COS(AN)

Y2=DD*TAN(AN)-RR/COS(AN)+RR

BFC=T GSET(P,A,0,0,-1) GSET(P,B,0,0,1) GSET(P,C,0,1,1) GSET(P,D,0,1,-1) GSET(P,E1,0,0,-DD) GSET(P,E2,0,Y1,-Z1) GSET(P,E3,0,Y1,Z1) GSET(P,E4,0,0,DD)

Fig d38

BFC grid generation examples Case 4

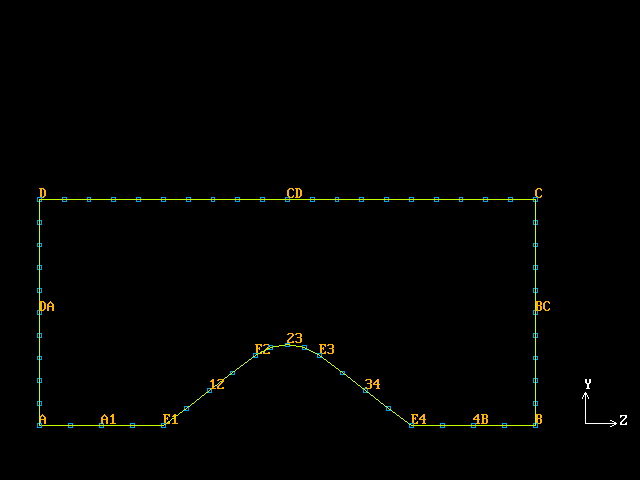

GSET(L,A1,A,E1,4)

GSET(L,12,E1,E2,4)

GSET(L,23,E2,E3,4,ARC,0,Y2,0)

GSET(L,34,E3,E4,4)

GSET(L,4B,E4,B,4)

GSET(L,BC,B,C,10)

GSET(L,CD,C,D,20)

GSET(L,DA,D,A,10)

Fig d39

BFC grid generation examples Case 4

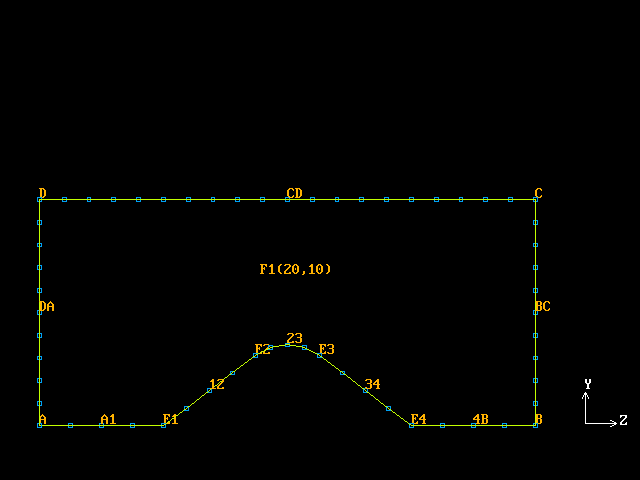

GSET(F,F1,A,E1.E2.E3.E4,B,-,C,-,D,-)

Fig d40

BFC grid generation examples Case 4

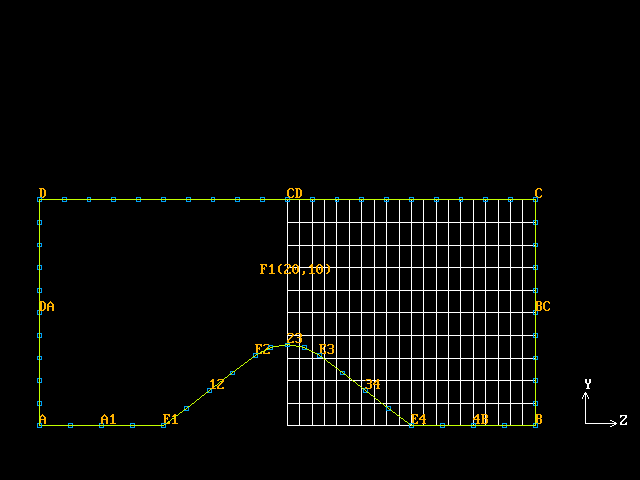

GSET(D,1,10,20)

Fig d41

BFC grid generation examples Case 4



GSET(M,F1,+K+J,1,1,1,LAP30.FFFTFF)

GSET(C,I2,F,I1,+,.1,0,0)

Fig

BFC grid generation examples Case 4

Case 5. Valve

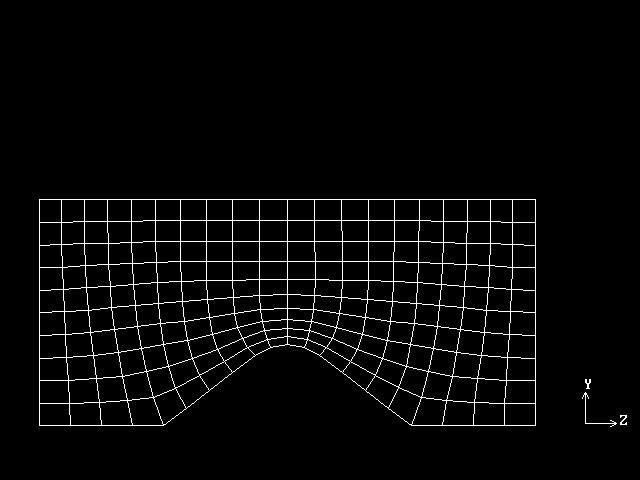

GSET(I)

Fig d43

BFC grid generation examples Case 5



TALK=T;RUN(1,1);VDU=WINDOWED

BFC=T GSET(P,A,0,-.1,0) GSET(P,B,0,0,0) See picture on a later page GSET(P,C,0,0,0.25) GSET(P,D,0,-.07,0.25) GSET(P,E,0,-.1,0.3) GSET(P,F,0,-.1,0.4) GSET(P,G,0,-.15,0.4) GSET(P,H,0,-.15,0.2) GSET(L,L1,A,B,10) GSET(L,L2,B,C,9) GSET(L,L3,C,D,4) GSET(L,L4,D,E,2) GSET(L,L5,E,F,4) GSET(L,L6,F,G,6) GSET(L,L7,G,H,6,1.0,ARC,0,-.2,.3) GSET(L,L8,D,H,6) GSET(V,V1,S,A,SPLINE) GSET(V,0,-.09,.08) GSET(V,0,-.08,.14) GSET(V,V1,E,H) GSET(L,L9,A,H,9,1.0CRVV1) GSET(F,F1,A,-,B,-,C,D,H,-) GSET(F,F2,H,-,D,E,F,-,G,-)

GSET(D,20,20,15,.1,.2,.4) GSET(M,F1,-J+K,1,11,1,LAP10.FFTFFF) GSET(M,F2,-J+K,1,11,10,TRANS)

GSET(C,I21,F,I1,RZ,-3.14159*2,0,0,INC,1)

GSET(I) GSET(P,A,-0.707*0.05,0.6,0.35-0.707*0.05) GSET(P,B, 0.707*0.05,0.6,0.35-0.707*0.05) GSET(P,C, 0.707*0.05,0.6,0.35+0.707*0.05) GSET(P,D,-0.707*0.05,0.6,0.35+0.707*0.05) GSET(L,L1,A,B,6,1.0,ARC,0,0.6,0.35-0.05) GSET(L,L2,B,C,6,1.0,ARC,0.05,0.6,0.35) GSET(L,L3,C,D,6,1.0,ARC,0,0.6,0.35+0.05) GSET(L,L4,D,A,6,1.0,ARC,-0.05,0.6,0.35) GSET(F,F1,A,-,B,-,C,-,D,-) GSET(M,F1,+I+K,8,21,10)

GSET(C,J14,F,J21,8,13,10,15,+,0.0,-0.3,0.0,INC,1.0)

GSET(T,J14,F,J11,8,13,10,15,1.0)

GSET(B,7,12,5,13,10,15,TRANS) GSET(I) STOP

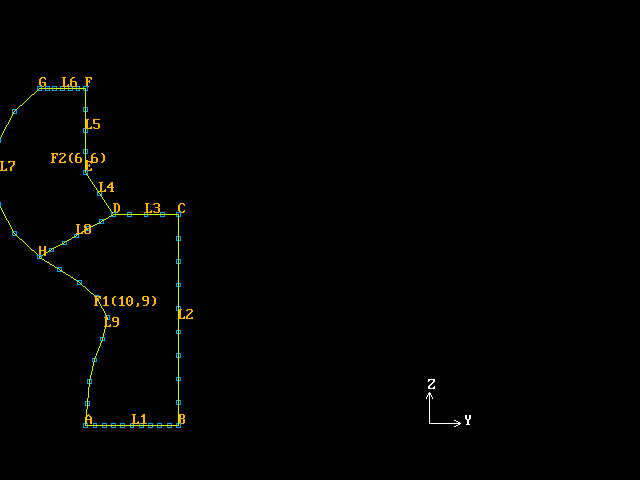

BFC grid generation examples Case 5



BFC=T

GSET(P,A,0,-.1,0);GSET(P,B,0,0,0) GSET(P,C,0,0,0.25);GSET(P,D,0,-.07,0.25) GSET(P,E,0,-.1,0.3);GSET(P,F,0,-.1,0.4) GSET(P,G,0,-.15,0.4);GSET(P,H,0,-.15,0.2) GSET(L,L1,A,B,10);GSET(L,L2,B,C,9) GSET(L,L3,C,D,4);GSET(L,L4,D,E,2) GSET(L,L5,E,F,4);GSET(L,L6,F,G,6) GSET(L,L7,G,H,6,1.0,ARC,0,-.2,.3) GSET(L,L8,D,H,6) GSET(V,V1,S,A,SPLINE);GSET(V,0,-.09,.08) GSET(V,0,-.08,.14);GSET(V,V1,E,H) GSET(L,L9,A,H,9,1.0CRVV1) GSET(F,F1,A,-,B,-,C,D,H,-) GSET(F,F2,H,-,D,E,F,-,G,-)

Fig d44

BFC grid generation examples Case 5

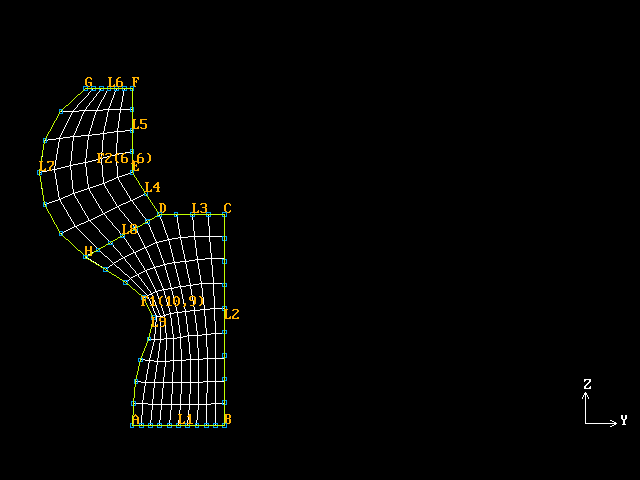

GSET(D,20,20,15,.1,.2,.4)

GSET(M,F1,-J+K,1,11,1,LAP10.FFTFFF)

GSET(M,F2,-J+K,1,11,10,TRANS)

Fig d45

BFC grid generation examples Case 5

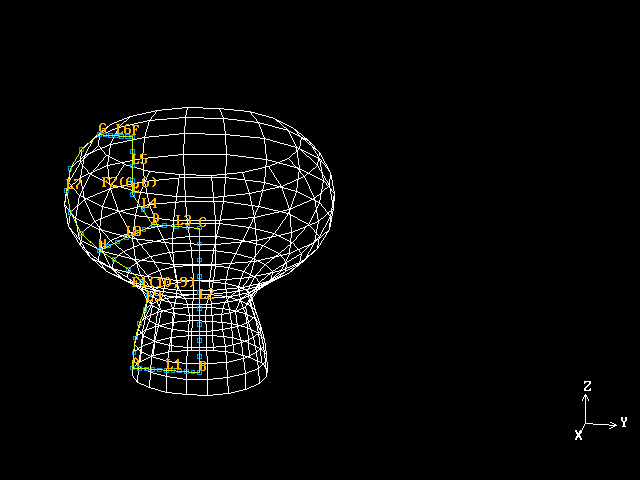

GSET(C,I21,F,I1,RZ,-3.14159*2,0,0,INC,1)

Fig d46

BFC grid generation examples Case 5

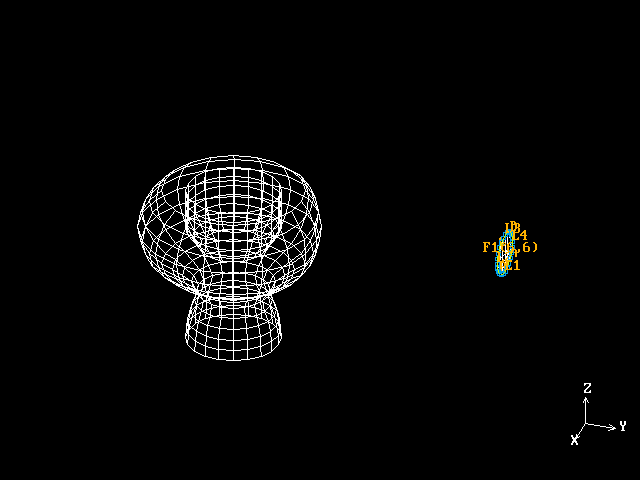

GSET(I)

GSET(P,A,-0.707*0.05,0.6,0.35-0.707*0.05)

GSET(P,B, 0.707*0.05,0.6,0.35-0.707*0.05)

GSET(P,C, 0.707*0.05,0.6,0.35+0.707*0.05)

GSET(P,D,-0.707*0.05,0.6,0.35+0.707*0.05)

GSET(L,L1,A,B,6,1.0,ARC,0,0.6,0.35-0.05)

GSET(L,L2,B,C,6,1.0,ARC,0.05,0.6,0.35)

GSET(L,L3,C,D,6,1.0,ARC,0,0.6,0.35+0.05)

GSET(L,L4,D,A,6,1.0,ARC,-0.05,0.6,0.35)

GSET(F,F1,A,-,B,-,C,-,D,-)

GSET(M,F1,+I+K,8,21,10)

Fig d47

BFC grid generation examples Case 5

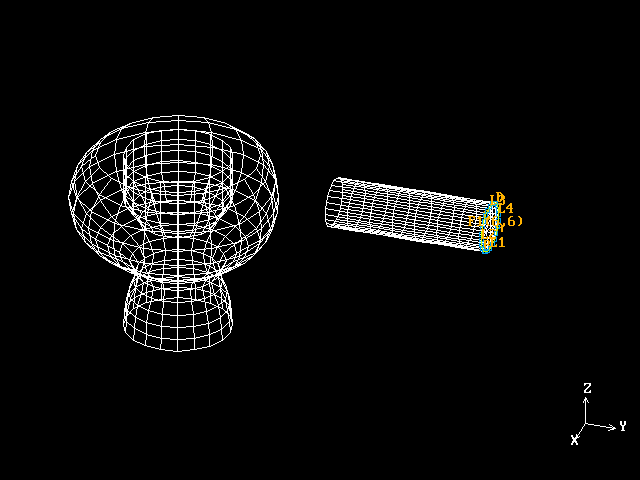

GSET(C,J14,F,J21,8,13,10,15,+,0.0,-0.3,0.0,INC,1.0)

Fig d48

BFC grid generation examples Case 5



GSET(T,J14,F,J11,8,13,10,15,1.0)

************************** See picture on next page **************************

BFC grid generation examples Case 5

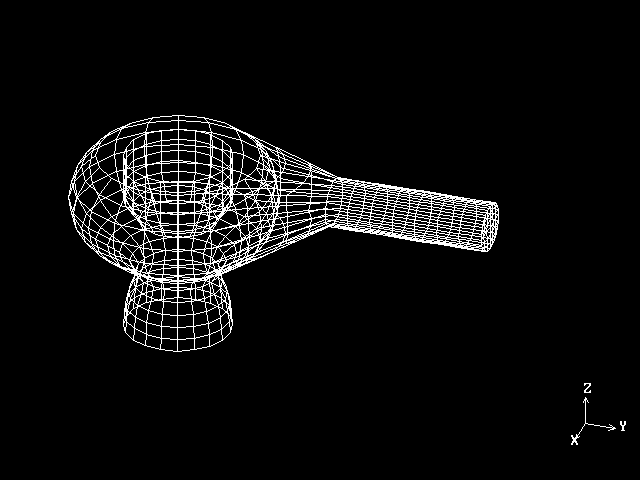

GSET(B,7,12,5,13,10,15,TRANS)

GSET(I)

Fig d49
