WORKSHOP - Combustion: CHEMKIN

Overview

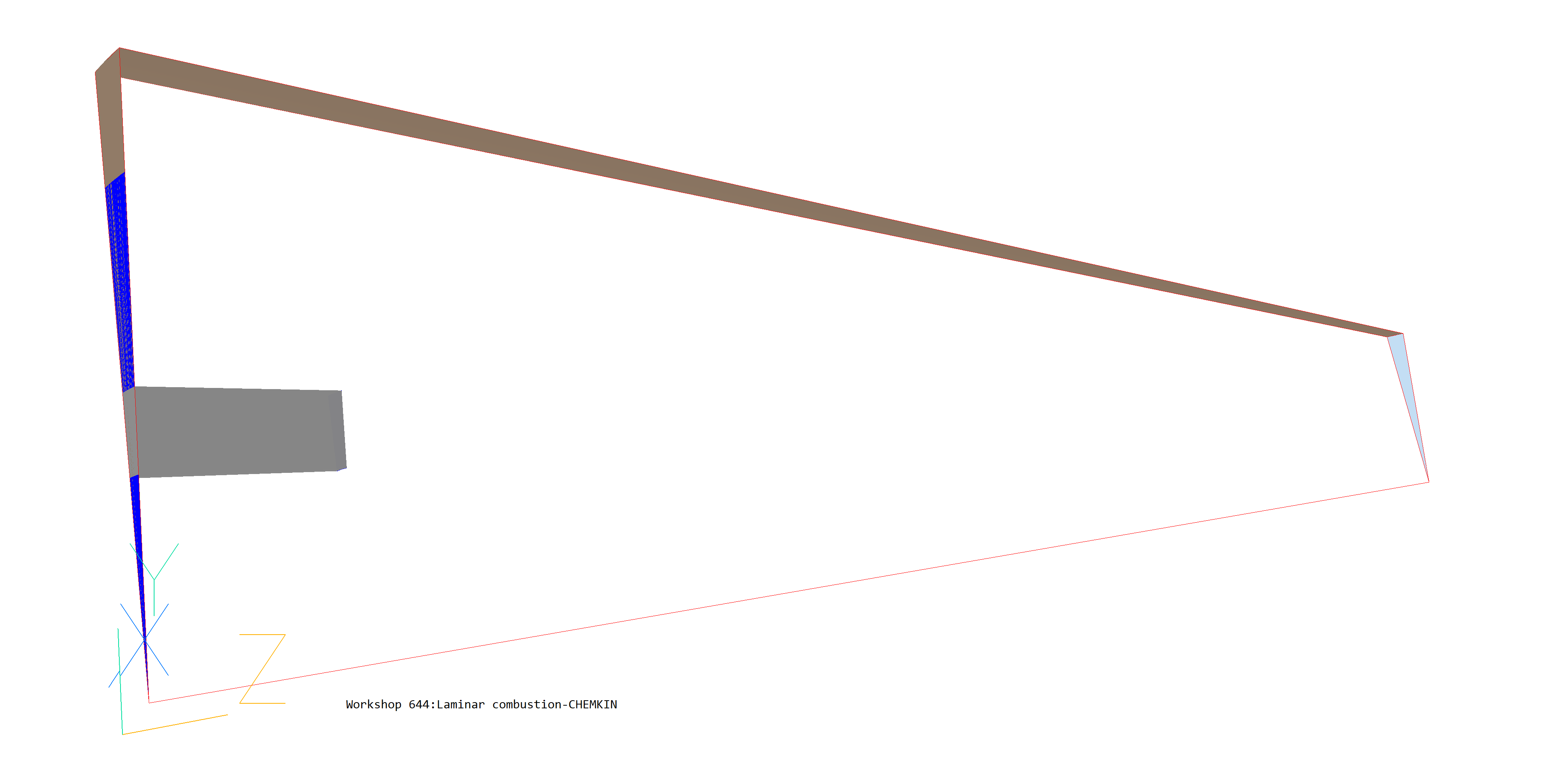

The case considered is the combustion of Methane (CH4) in air (74% Nitrogen, 26% Oxygen) to form water vapour (H2O) and carbon dioxide (CO2). The geometry is a cylindrical combustor with annular inlets for air and two fuel streams. The combustion process is modeled using CHEMKIN.


Please note that this example is designed to show how to set up a CHEMKIN model in PHOENICS. It is not for the purpose of validation.

Accessing PHOENICS-VR.

From the system level:

To enter the PHOENICS-VR environment, click on the PHOENICS icon on the desktop, or click on Start, programs, PHOENICS, PHOENICS.

In PHOENICS-VR environment,

Start with an 'empty' case - click on 'File' then on 'Start New Case', then on 'Core', then click on 'OK'; to confirm the resetting.

To enter VR Editor:

This is the default mode of operation.

Within VR Editor.

Set the domain size and grid numbers:

Click on 'Menu' (Main Menu) on the VE-Editor panel and set 'Combustion: CHEMKIN' as the Title.

Click on 'Geometry'.

Please note that CHEMKIN uses CGS units, even though the dialogs will still display SI units.

Click on 'Cartesian' under co-ordinate system; and select 'Cylindrical-polar' and then on 'OK'.

Leave 'Inner radius' at 0.0 and 'tolerance' at 1.e-3.

Change the x-domain size to 0.1 radians.

Change the y-domain size to 3.0 (cm)

Change the z-domain size to 24.0 (cm)

Set 'number of cells' to 1 in the x-direction, 30 in the y-direction and 50 in the z-direction.

Click on 'OK' to close the Grid mesh settings dialog.

Click on 'OK' to exit from 'Menu'.

Click on 'Reset' button on the movement panel.

Click View -X and Up +Y

Click on 'Fit to Window'



Activate solution of the required variables and models

Click on 'Menu'; and then on 'Models'.

Leave 'Solution for velocities and pressure' to ON.

Click on ENERGY EQUATION; and then choose TEMPERATURE.

Click on 'Turbulence models' and select LAMINAR.

Click 'Settings' next to  'Solution control/Extra variables' and change 'SOLUTN 3 WHOF' for TEM1 from 'Y' to 'N'.

Click 'Previous panel', then 'Top Menu' and 'OK' to close the Main Menu.

CHEMKIN model settings

The CHEMKIN model is set by a set of CHEMKIN commands described in the Encyclopaedia. Please note that the CHEMKIN commands can not at present be made in the VR-Editor.

The  VR-Editor settings and PIL settings need to be combined in the Q1 file in order to complete the entire setting of the input data.

Once the geometry and models settings are completed, click on 'File', 'Open file for editing', 'Q1' to open and edit the Q1 file. Click 'Yes' when prompted to save the current VR settings to Q1.

Add the following PIL commands in Group 7:

   index of first CHEMKIN species
CHSOB = 16
   name of mechanism file and reference pressure
CHEMKIN(PROP,CH4,1.0)
   list of species considered
CHEMKIN(SPECIES, CH4, O2, CO2, H2O, N2)

The easiest way to do this is to highlight the text in the browser, right-click and copy it, then paste it into the Q1 at the end of Group 7.

After the above editing is completed, save the Q1 file and exit the text editor. Allow the VR-Editor to reload the Q1 on exit from the file editor. We can now continue the rest of the settings through the VR-Editor.



CHEMKIN data file

The user should edit and create a CHEMKIN mechanism file named CH4.CKM with the following contents:

ELEMENTS C O H N END
SPECIES CH4 O2 CO2 H2O N2 END
REACTIONS
CH4 + 2O2 = CO2 + 2H2O 6.456E+21 0.0 8.13E+03
END

Save this file. Note that the species listed above are the same as in the CHEMKIN(SPECIES... command added to the Q1.

To generate the CHEMKIN link file, click 'Run', 'Pre-processor', 'CHEMKIN Interpreter'. In the dialog that appears, click 'Browse', and navigate to the CH4.CKM file and select it. Click OK to run the interpreter. The result should be the files ch4.lis, ch4ckln and ch4mcln in the current working directory.

Specify properties

Click on ‘Menu’ and then ‘Properties’.

Toggle ‘Use property table’ to OFF

Change Density, Viscosity, Specific Heat and Conductivity from their current settings to CHEMKIN.

Toggle Storage to ON for all the properties.

Click 'Page Dn' button.

Set the Thermal expansion coefficient to 0.0

Set the Reference Temp(K) to 0.0

Click Advanced Settings PIL. Then set PRNDTL for CH4, O2, CO2 and H2O to –GRND9 which instructs PHOENICS to use CHEMKIN to calculate the diffusion coefficients for these variables. (use the <> buttons to scroll the list of variables)

Click 'Previous panel'.



Set Initial values

Click on 'Initialisation'.

Set the initial value of W1 to 50, O2 to 0.24 and N2 to 0.76.



Source settings

Click on 'Sources'

Toggle 'Use Earth-Generated wall functions': EGWF to F

Click on 'Page Dn' and then click 'Advanced Settings PIL'. Type CHEMK1 in the 'New' box, then click 'Apply'. Change the Type from CELL to VOLUME. Set the Coefficients and Values as follows:

Variable CH4 O2 H20 CO2 TEM1
Coefficient GRND9 GRND9 GRND9 GRND9 GRND9
Value GRND9 GRND9 GRND9 GRND9 GRND9

Click 'Previous panel'.



Enter numerical settings

Click on 'Numerics'.

Set 'Total number of iterations' to 1000

Click 'Relaxation control'. Leave the Automatic Convergence Control 'ON', but reset the maximum increment (MAXINC) for temperature (TEM1) to 10.0. This will limit the iteration-to-iteration change in temperature to 10deg, allowing the flow to build up whilst the temperature rises.

Click 'Previous panel', then 'Limits on Variables' and set the following values:

  CH4 O2 CO2 H2O N2 TEM1
VARMIN 0.0 0.0 0.0 0.0 0.0 273
VARMAX 1.0 1.0 1.0 1.0 1.0 3000

Click 'Previous panel'.

Set Monitoring Options

Click 'Output' and 'Settings' next to Field Printout. Set 'OUTPUT 5 SPOT' and 'OUTPUT 6 TABL' to Y for CH4, N2 and DEN1. This will make the values of these variables at the probe location appear in the solver convergence monitor graph.

Click 'Previous panel', 'Top Menu' then 'OK' to close the Main Menu.

Create Objects and specify boundary conditions

Create a divider

Click on 'Settings', 'New' and 'New Object'.

Change the name to DIVIDER.

Click on 'Size' and set Size of the object as:

Xsize: 0.1

Ysize: 0.4

Zsize: 1.0

Click on 'Place' and set POSITION of the object as:

Xpos: 0.0

Ypos: 1.0

Zpos: 0.0

Click on 'General'.

Define Type: BLOCKAGE

Click 'OK'

Create the Oxidant Inlet

Click on 'Settings', 'New' and 'New Object'.

Change name to OXIN

Click on 'Size' and set Size of the object as:

Xsize:  0.1

Ysize: 0.4

Zsize: 0.0

Click on 'Place' and set POSITION of the object as:

Xpos: 0.0

Ypos: 1.0

Zpos: 1.0

Click on 'General'.

Define Type: USER_DEFINED

Click on Attributes, and make the following settings:

In the 'New' entry box, type NOCPCK1, then click 'Apply'. A new PATCH command will be created. Change the TYPE from CELL to LOW. Make the following settings for Coefficient and Value:

  P1 W1 O2 TEM1
Coefficient FIXFLU 0.0 0.0 0.0
Value GRND9 300.0 0.24 GRND9

This sets the inlet velocity to 300 cm/s, and the inlet mass-fraction of Oxygen to 0.24.

In the 'PIL command' entry box at the top of the dialog type:

SPEDAT(SET,NOCPCK1,TINLET,R,350)

This sets the inlet temperature to 350C

Click 'Apply', then close the Attributes and Object specification dialogs.

Create the first fuel Inlet

Click on 'Settings', 'New' and 'New Object'.

Change name to FUIN1

Click on 'Size' and set Size of the object as:

Xsize:  0.1

Ysize: 1.0

Zsize: 0.0

Click on 'General'.

Define Type: USER_DEFINED

Click on Attributes, and make the following settings:

In the 'New' entry box, type NOCPCK2, then click 'Apply'. A new PATCH command will be created. Change the TYPE from CELL to LOW. Make the following settings for Coefficient and Value:

  P1 W1 CH4 TEM1
Coefficient FIXFLU 0.0 0.0 0.0
Value GRND9 100.0 1.0 GRND9

This sets the inlet velocity to 100 cm/s, and the inlet mass-fraction of Methane to 1.0.

In the 'PIL command' entry box at the top of the dialog type:

SPEDAT(SET,NOCPCK2,TINLET,R,350)

Click 'Apply', then close the Attributes and Object dialogs.

Create the second fuel Inlet

Click on 'Settings', 'New' and 'New Object'.

Change name to FUIN2

Click on 'Size' and set Size of the object as:

Xsize: 0.1

Ysize: 1.0

Zsize: 0.0

Click on 'Place' and set Position of the object as:

Xpos: 0.0

Ypos: 1.4

Zpos: 0.0

Click on 'General'.

Define Type: USER_DEFINED

Click on Attributes, and make the following settings:

In the 'New' entry box, type NOCPCK3, then click 'Apply'. A new PATCH command will be created. Change the TYPE from CELL to LOW. Make the following settings for Coefficient and Value:

  P1 W1 CH4 TEM1
Coefficient FIXFLU 0.0 0.0 0.0
Value GRND9 50.0 1.0 GRND9

This sets the inlet velocity to 50 cm/s, and the inlet mass-fraction of Methane to 1.0.

In the 'PIL command' entry box at the top of the dialog type:

SPEDAT(SET,NOCPCK3,TINLET,R,350)

Click 'Apply', then close the Attributes and Object dialogs.

Create the outlet

Click on 'Settings', 'New' and 'New Object'.

Change name to OUTLET

Click on 'Size' and set Size of the object as:

Xsize: 0.1

Ysize: 3.0

Zsize: 0.0

Click on 'Place' and set Position of the object as:

Xpos: 0.0

Ypos: 0.0

Zpos: 24.0

Click on 'General'.

Define Type: OUTLET

Click 'OK' to close the object specification dialog box.

Set the Probe location

Move the probe to X=0.05, Y=0.5, Z =10.0. The convergence of the solver will be monitored at this point.

All the settings are now complete and the ‘Solver’ can be run.

Running the Solver.

In the PHOENICS-VR environment, click on 'Run', 'Solver' then 'Local solver(Earth)', and click on 'OK'; to confirm running Earth.

Using the VR Viewer.

In the PHOENICS-VR environment, click on 'Run', 'Post processor',then GUI Post processor (VR Viewer) Viewer)'. Click 'OK' on the file names dialog to accept the default files.

To view:

To select the plotting variable:

To change the direction of the plotting plane, set the slice direction to X, Y or Z slice direction (927 bytes)

To change the position of the plotting plane, move the probe using the probe position buttons

probe position (927 bytes).

Figures 1 -4 show the velocity vectors, the temperature, oxygen and carbon dioxide contours.

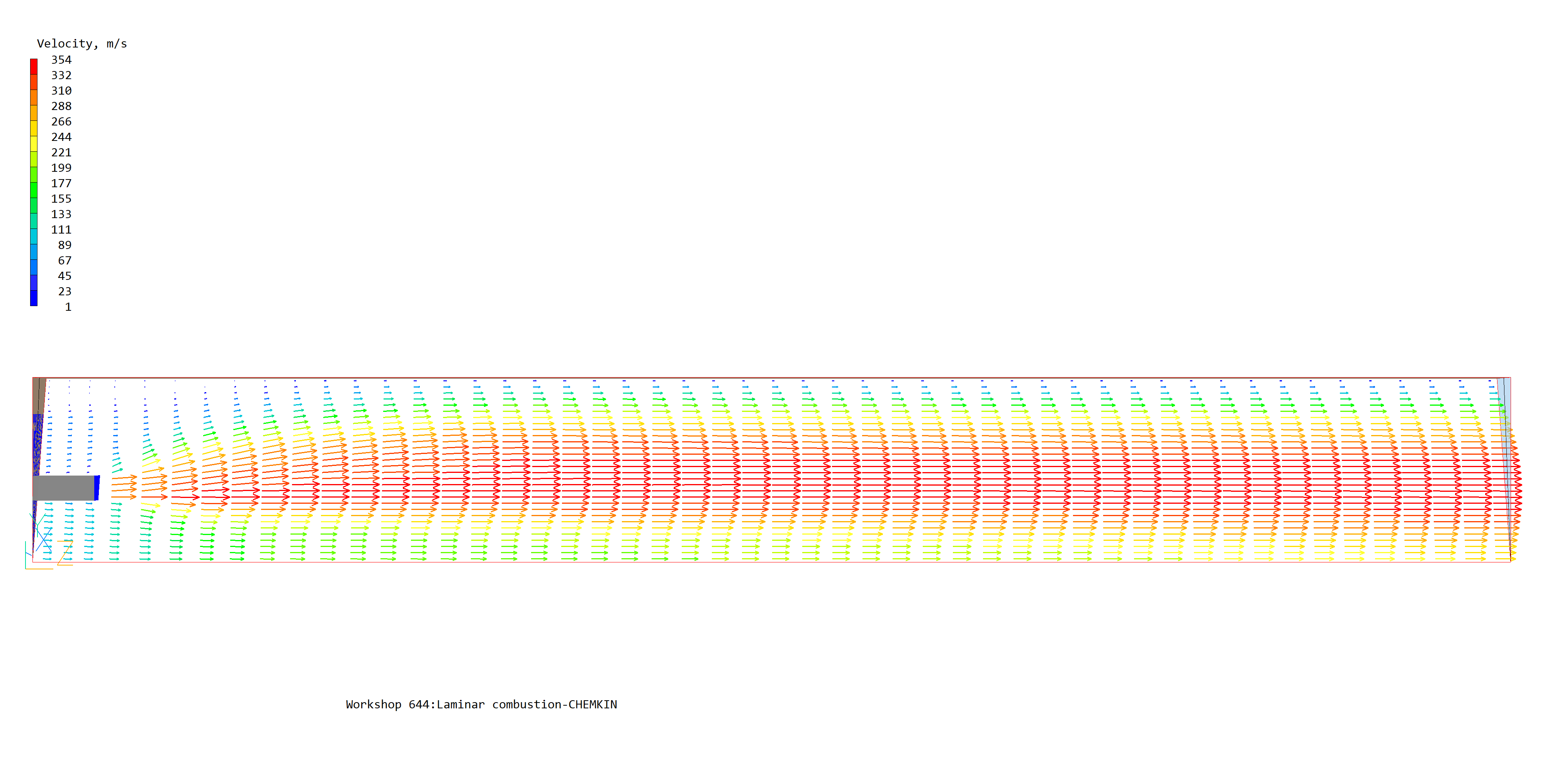

Figure 1. Velocity vectors

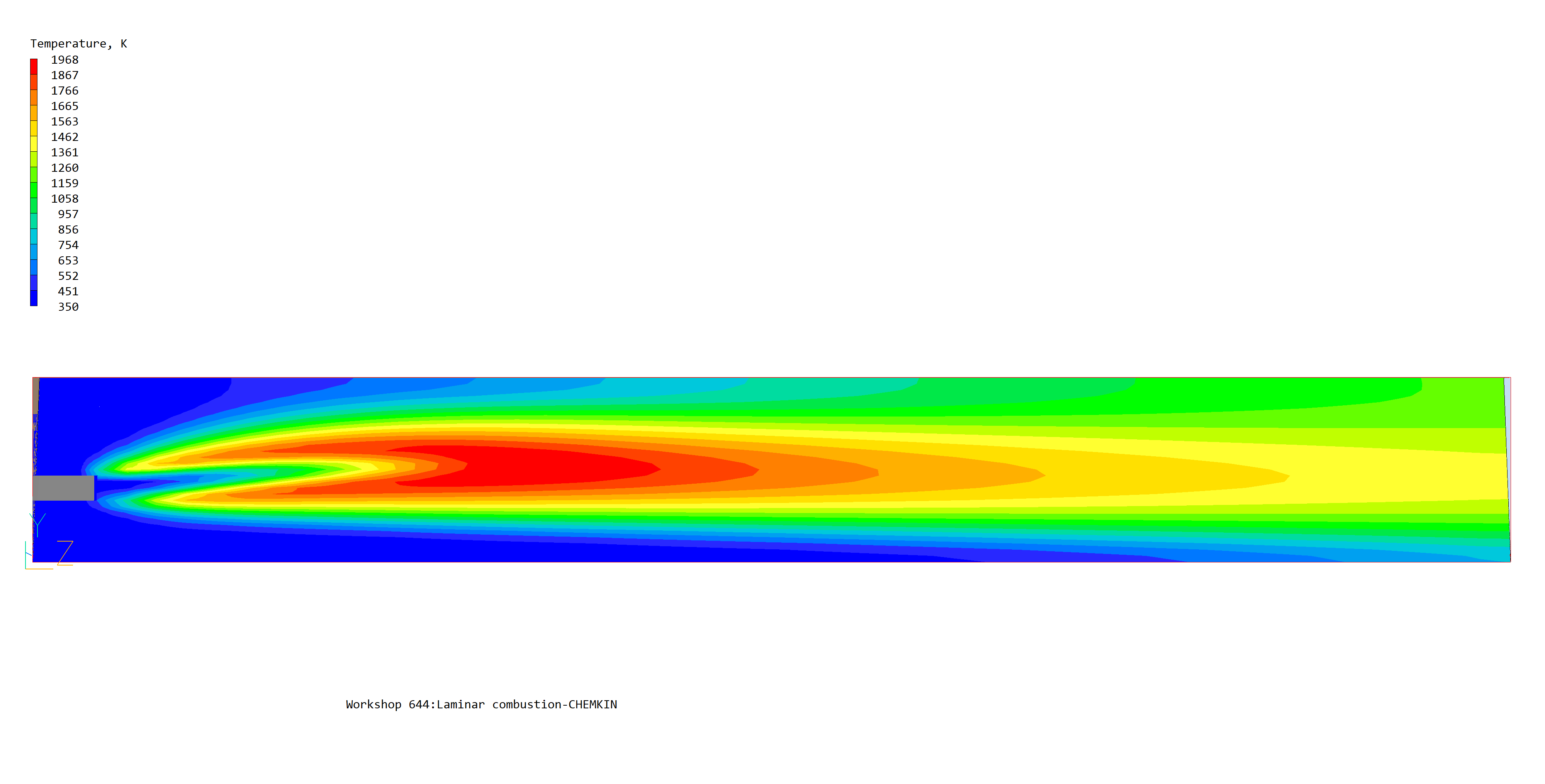

Figure 2. Temperature contours

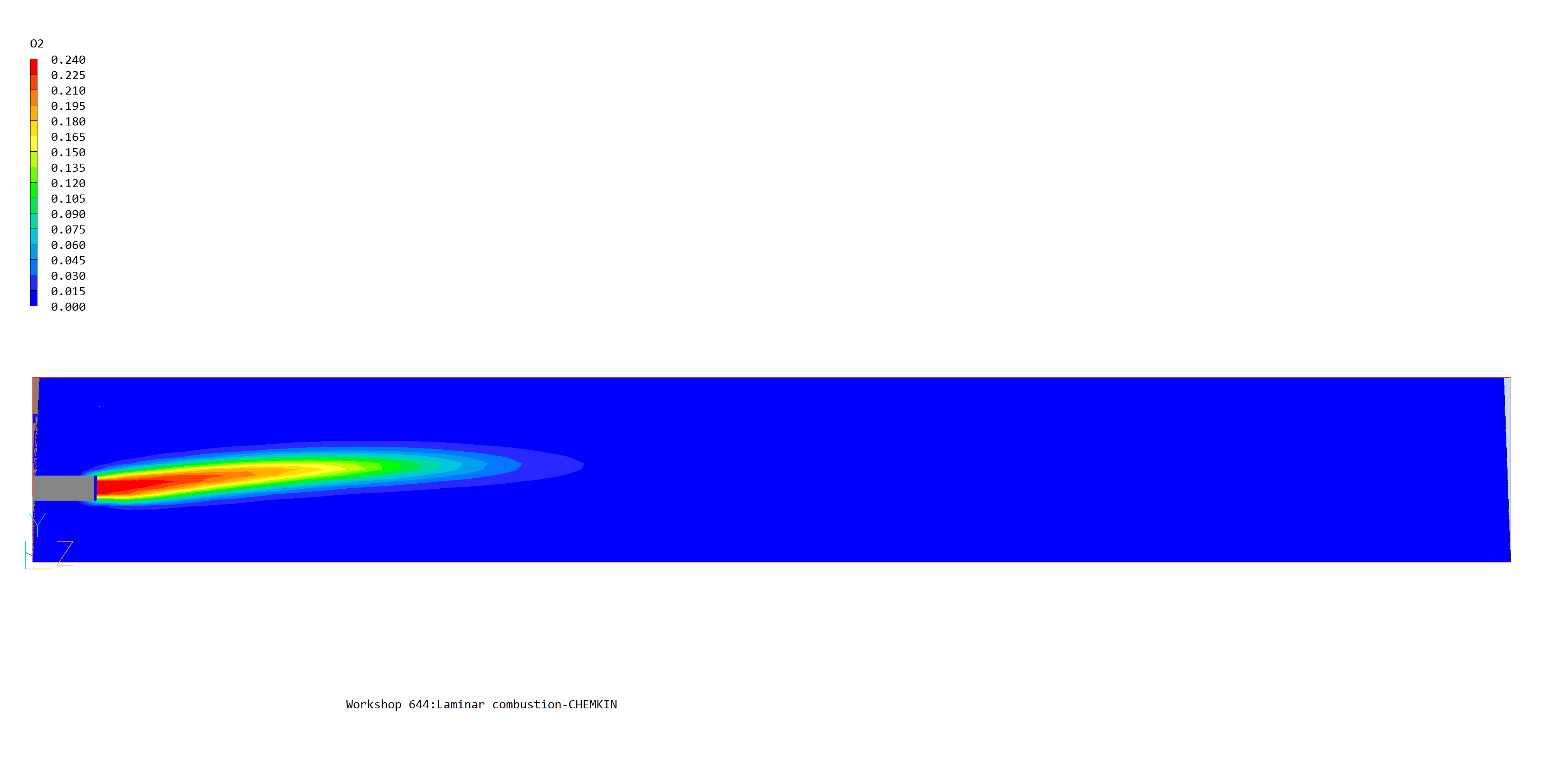

Figure 3. Oxygen (O2) contours

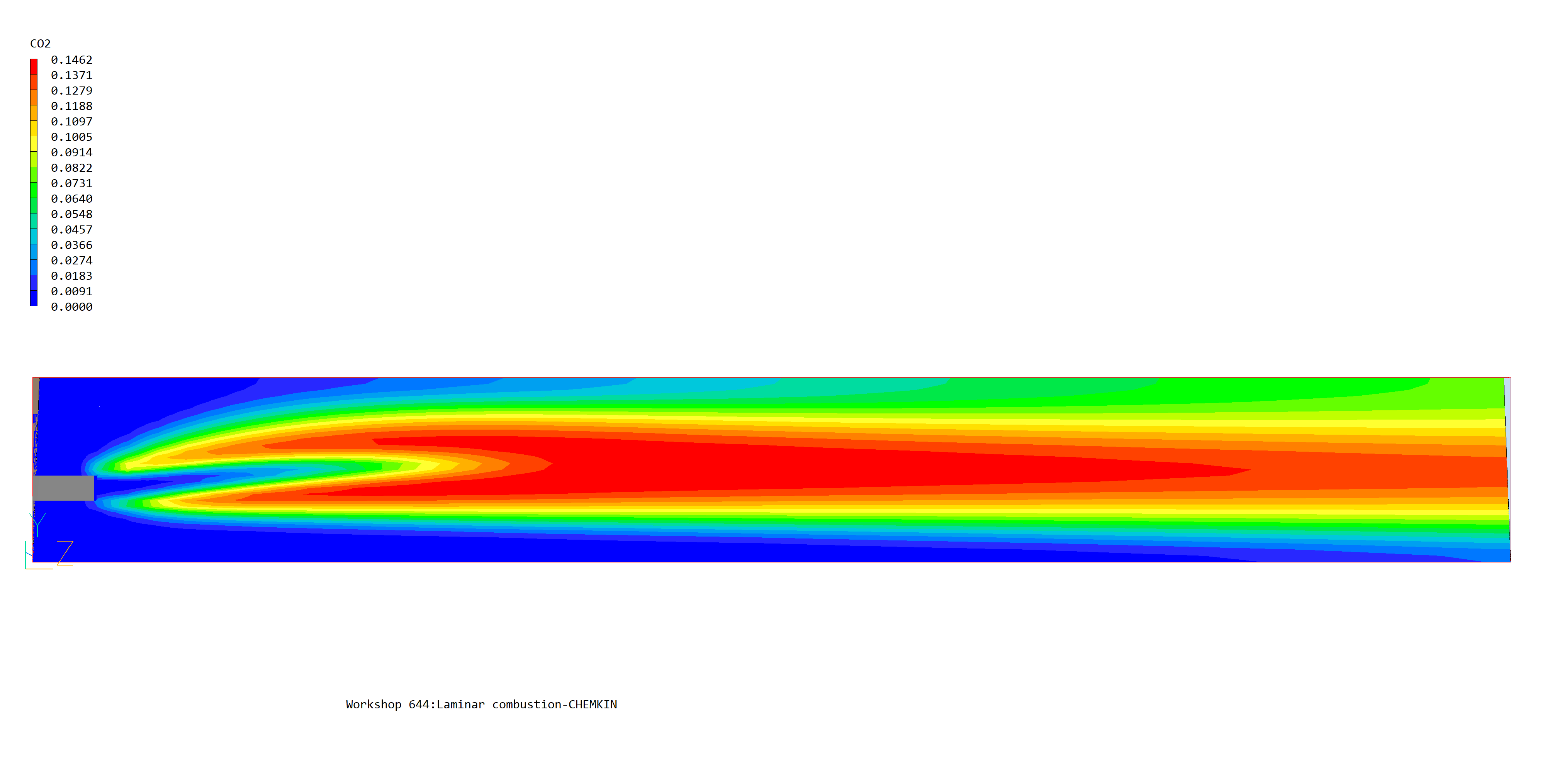

Figure 4. Carbon Dioxide (CO2) contours



Saving the results.

In the PHOENICS-VR environment, click on 'Save as a case', make a new folder called 'COMBUST', select the new folder, and save as 'CHEMKIN'.

Sources of Further Information

Further information can be found in the references cited below.

1. R.J.Kee, F.M.Rupley, J.A.Miller, 'CHEMKIN-II: A FORTRAN Chemical Kinetics Package for the Analysis of Gas-Phase Chemical Kinetics', SAND89-8009B, UC-706, Sandia National Laboratories, Albuquerque, New Mexico, (1993a).

2. R.J.Kee, G.Dixon-Lewis, J.Warnatz, M.E.Coltrin, and J.A.Miller, 'A FORTRAN Computer Code for the Evaluation of Gas-Phase Multicomponent Transport Properties", Sandia Report SAND86-8246, UC-401, (1993b).

3. R.J.Kee, F.M.Rupley and J.A.Miller, 'The CHEMKIN Thermodynamic Data Base', Sandia Report SAND87-8215B, UC-4, (1993c).

4. P.Glarborg, R.J.Kee, J.F.Grear, J.A.Miller,'PSR: A FORTRAN Program for Modelling Well-Stirred Reactors', SAND86-8209, Sandia National Laboratories, Albuquerque, New Mexico, (1992).

5. J.F.Grear, 'The Twopnt Program for Boundary Value Problems', Sandia Report SAND91-8230, (1992)
