WORKSHOP - Jet Pump

Object Rotation

This example shows how to set up and run the simulation of a Jet Pump using VR. It demonstrates the use of the duplication facility and how to rotate objects. The flow is two-dimensional and its geometry is shown below. Velocity and pressure will be solved.

Accessing PHOENICS-VR.

From the system level:

To enter the PHOENICS-VR environment, click on the PHOENICS icon on the desktop, or click on Start, programs, PHOENICS, PHOENICS.

In PHOENICS-VR environment,

Start with an 'empty' case - click on 'File' then on 'Start New Case', then on 'Core', then click on 'OK'; to confirm the resetting.

To enter VR Editor:

This is the default mode of operation.



Within VR Editor.

Set the domain size, and activate solution of variables:

Click on 'Main Menu' and then on 'Geometry'.

Change the X-Domain Size to 5.0 m.

Change the Z-Domain Size to 2.0 m.

Click 'OK' to close the Grid mesh settings dialog.

Click on 'Models'.

Select the LVEL turbulence model in 'Turbulence models'.

Click on 'Top menu' and then on 'OK'.

Click 'Reset' on the Movement control panel, then 'Fit to window' to re-scale the view to fit the geometry.

Create the fluid inlet:

Click on the Object management button on the handset to display the Object Management Dialog. Click on 'Object' on the top bar of the dialog, then 'New ' 'New Object' to bring up the object dialog box.

Change name to INLET.

Click on 'Size' and Set the SIZE of object as:

Xsize: 0.0

Ysize: 1.0

Zsize: 0.9

Click on 'Place' and Set the Position of object as:

Xpos: 0.0

Ypos: 0.0

Zpos: 0.55

Click on 'General' and Define Type: Inlet.

Click on 'Attributes' and set velocity in X-direction at 2.0 m/s.

Click on 'OK' twice to exit from the Object Dialogue Box.

Create the fluid outlet:

Click on 'Object', then 'New ' 'New Object' to bring up the object dialog box.

Change name to OUTLET.

Click on 'Size' and Set the SIZE of object as:

Xsize: 0.0

Ysize: 1.0

Zsize: 1.0

Click on 'Place' and Set the Position of object as:

Xpos: 5.0

Ypos: 0.0

Zpos: 0.5

Click on 'General' and Define Type: Outlet.

Click on 'OK' to exit from the Object Dialogue Box.

Create the upper secondary inlet (as an opening):

Click on 'Object', then 'New ' 'New Object'.

Change name to OPEN1 (which stands for first opening).

Click on 'Size' and Set the SIZE of object as:

Xsize: 0.0

Ysize: 1.0

Zsize: 0.4

Click on 'Place' and Set the Position of object as:

Xpos: 5.0

Ypos: 0.0

Zpos: 1.6

Click on 'General' and define Type: Outlet.

Click on 'OK' to exit from the Object Dialogue Box.

Create the lower secondary inlet, by duplication from OPEN1:

Click on the 'Duplicate object or group' button on the handset and 'OK'.

Use Z-position button to move the duplicated object down to Zpos=0.0.

Double click on the duplicated object to bring up the object dialog box

Change name to OPEN2 (which stands for second opening).

Click on 'OK' to exit from the Object Dialogue Box.

Create the upper-left boundary wall:

Click on 'Object', then 'New ' 'New Object'.

Change name to WALL1.

Click on 'Size' and Set the SIZE of object as:

Xsize: 0.0

Ysize: 1.0

Zsize: 0.55

Click on 'Place' and Set the Position of object as:

Xpos: 0.0

Ypos: 0.0

Zpos: 1.45

Click on 'General' and Define Type: Plate.

Click on 'OK' twice to exit from the Object Dialogue Box.

Create the lower-left boundary wall, by duplication from WALL1:

Click on the 'Duplicate object or group' button and 'OK'.

Move the duplicated object to Zpos=0.0.

Double click on the duplicated object and change name to WALL2.

Click on 'OK' to exit from the Object Dialogue Box.

Create the upper inner horizontal wall:

Click on 'Object', then 'New ' 'New Object'.

Change name to WALL3.

Click on 'Size' and Set the SIZE of object as:

Xsize: 4.0

Ysize: 1.0

Zsize: 0.1

Click on 'Place' and Set the Position of object as:

Xpos: 1.0

Ypos: 0.0

Zpos: 1.5

Click on 'General' and define Type: Blockage.

Click on 'OK' to exit from the Object Dialogue Box.

Create the lower inner horizontal wall by duplication from WALL3:

Click on the 'Duplicate object or group' button and 'OK'.

Change the duplicated object position to

Xpos: 1.0

Ypos: 0.0

Zpos: 0.4

Change name to WALL4.

Click on 'OK' to exit from the Object Dialogue Box.

Create the upper angled wall:

Click on 'Object', then 'New ' 'New Object'.

Change name to BAFFLE1.

Use 'Size' and 'Place' button to Set POSITION and SIZE of object as:

Xpos: 0.0 Xsize: 1.25

Ypos: 0.0 Ysize: 1.0

Zpos: 1.45 Zsize: 0.05

Under the 'Place' button, set the 'Angle about Y' angle to 15 degrees.

Click on 'General' and Define Type: Blockage

Click on 'OK' twice to exit from the Object Dialogue Box.

Create the lower angled wall by duplication from BAFFLE1:

Click on the Duplication button and 'OK'.

Change position to:

Xpos: 0.01295 (to allow for the object rotation)

Ypos: 0.0

Zpos: 0.5

Double click on the duplicated object and change name to BAFFLE2.

Click on 'Place' and change the 'Angle about Y' rotation angle to 345 degrees.

Click on 'OK' twice to exit from the Object Dialogue Box.

Create the upper horizontal baffle:

Click on 'Object', then 'New ' 'New Object'.

Change name to BAFFLE3.

Click on 'Size' and 'Place' buttons to set Size and Position of object as:

Xpos: 1.2 Xsize: 1.0

Ypos: 0.0 Ysize: 1.0

Zpos: 1.13 Zsize: 0.05

Click on 'General' and use the default Type: Blockage.

Click on 'OK' to exit from the Object Dialogue Box.

Create the lower horizontal baffle by duplication from BAFFLE3:

Click on the 'Duplicate object or group' button and 'OK'.

Change the duplicated object position to:

Xpos: 1.2

Ypos: 0.0

Zpos: 0.82

Double click on the object and change name to BAFFLE4.

Click on 'OK' to exit from the Object Dialogue Box.

Create the upper boundary wall:

Click on 'Object', then 'New ' 'New Object'.

Change name to T-WALL (which stands for top wall).

Use 'Size' and 'Place' button to Set POSITION and SIZE of object as:

Xpos: 0.0 Xsize: 5.0

Ypos: 0.0 Ysize: 1.0

Zpos: 2.0 Zsize: 0.0

Click on 'General' and Define Type: Plate.

Click on 'OK' to exit from the Object Dialogue Box.

Create the lower boundary wall by duplication from T-WALL;

Click on the 'Duplicate object or group' button and 'OK'.

Move the duplicated object to Zpos = 0.0

Double click on the object and change name to L-WALL (which stands for low wall).

Click on 'OK' to exit from the Object Dialogue Box.

De-select the last object created by clicking on 'Domain' in the object list, then close the Object Management Dialog

Set the grid:

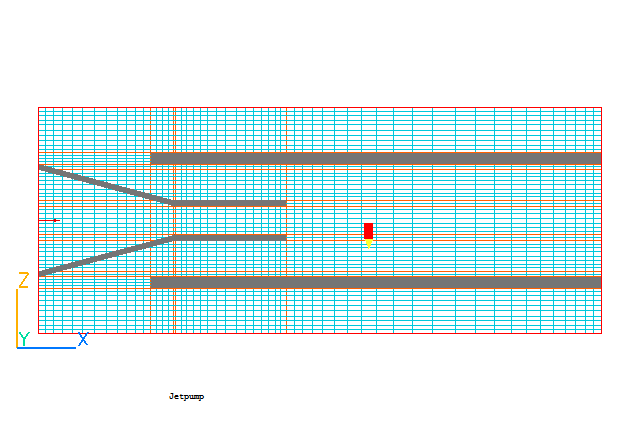

Click on the 'Mesh toggle' button. The default mesh (shown as blue and orange lines) will appear on the screen. The orange lines are 'regions', defined by the bounding boxes of the objects.

The cells in X stretch too much at the domain boundaries, and some of the regions are very small leading to very thin cells.

The small regions arise because the rotated objects do not quite line up with the un-rotated ones:

Click anywhere on the grid to bring up the Grid mesh Settings dialog.

Change the Tolerance from 0.001m to 0.005m and click Apply. The number of regions in Z will change from 14 to 11, and the number of cells will decrease from 93 to 66.

Now click 'Edit all regions in' X direction. The expansion is controlled by 'Expansion power', which is defaulted to 1.2. Reduce this to 1.1 and click 'Apply'. The number of cells in X will increase from 49 to 64. Click OK to close the dialogs. The final grid should look like:

Set the remaining solution control parameters:

Change the monitoring point by setting the X,Y and Z positions on the handset to:

Xpos to 3.0,

Ypos to 0.5,

Zpos to 0.5

Click on 'Main Menu' and then on 'Numerics'.

Set the number of iterations to 300 (this is not sufficient for complete convergence, but it gives a reasonable flow field).

Click on 'Top menu' to return to the top menu.

Click on 'OK' to exit the Main Menu.

Running the Solver.

In the PHOENICS-VR environment, click on 'Run', 'Solver'(Earth), and click on 'OK' to confirm running Earth.

Using the VR Viewer.

In the PHOENICS-VR environment, click on 'Run', 'Post processor',then GUI Post processor (VR Viewer) Viewer)'. Click 'OK' on the file names dialog to accept the default files.

To view:

To select the plotting variable:

To change the direction of the plotting plane, set the slice direction to X, Y or Z slice direction (927 bytes)

To change the position of the plotting plane, move the probe using the probe position buttons

probe position (927 bytes).

A typical plot from this case is:

Saving the results.

In the PHOENICS-VR environment, click on 'Save as a case', make a new folder called 'JETPUMP' (e.g.) and save as 'CASE1' (e.g.).
