Title : HERGHADA MARINA DEVELOPMENT PROJECT
By : CHAM Consultancy Team
PHOENICS Version: 3.1

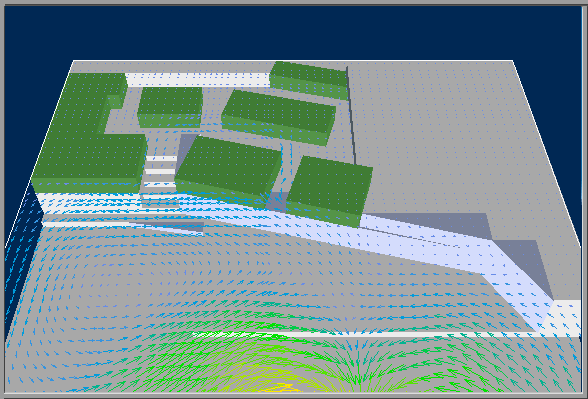

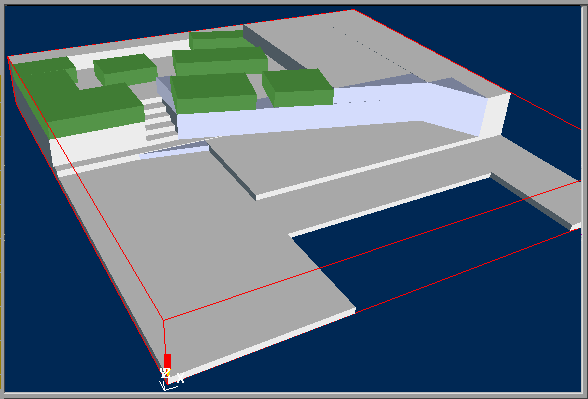

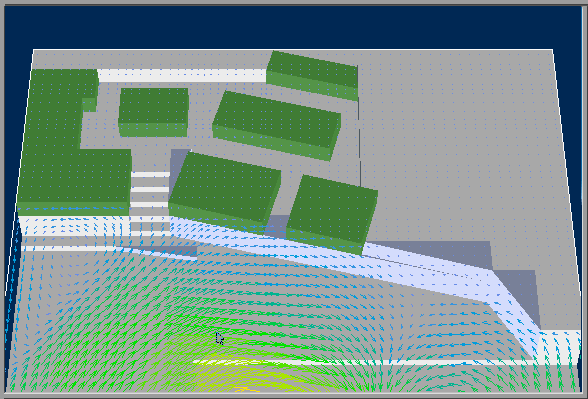

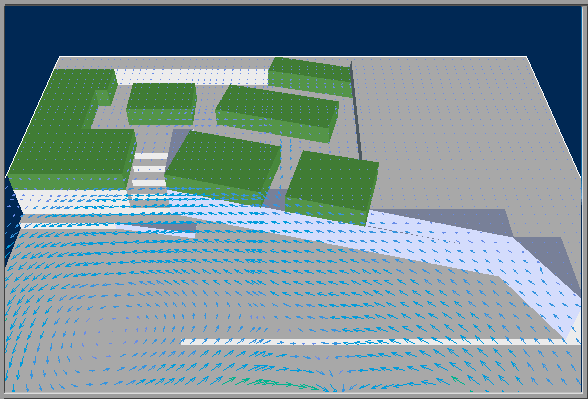

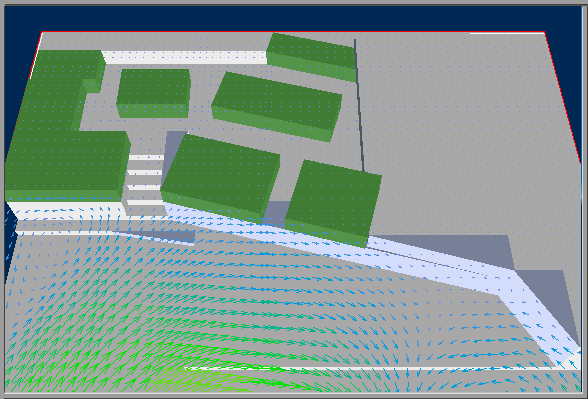

The following illustrates the geometry and results at time steps:
- A 3-dimensional CFD model was created to illustrate the transient
tidal flow into, and out of a harbour. The simulation incorporated
a compressible flow anology.
- Pressure varied sinusoidally with time, based on the desired tidal
range. The necessary transient pressure boundary condition were added
as a PIL fragment in PHOENICS 3.1.
