2.4 In-Form objects

Contents
  1. Definition
  2. Cell-enclosing (i.e. volumetric) shapes; box, sphere, ellipsoid
  3. Cell-cutting (i.e. sub-grid) shapes; point, line, plane
  4. Shapes made by restricting the PATCH size
  5. Shapes made by using non-constant parameters
  6. Shapes made by adding and subtracting
  7. 'Negative' objects
  8. Positions varying with time
  9. Shapes varying with time

(a) Definition

Two kinds of object

  1. VR objects

  2. In-Form objects

  3. Similarities and differences between the two kinds of object are:
  4. Work is in progress which should enable all appropriate In-Form objects to activate PARSOL by the end of 2011.

How In-Form objects are defined

In-Form objects are created and defined by means of statements of the following format:

(INFOB at PATCHNAME is FORMULA with infob_OBJNAME!options)

Here:

Two kinds of PATCH

Until April 2009, the space-time location of PIL PATCHes was almost invariably defined by way of the indices IXF, IXL, IYF, IYL, IZF, IZL, ITF, and ITL.

Partly because this conflicted in style with the grid-independent setting of In-Form objects, a new kind of patch, the so-called 'dot-patch' has now been introduced.

This sets the location by way of real-number arguments: RXF, RXL, RYF, RYL, RZF, RZL, RTF, and RTL. These represent the geometric coordinates, normalised by reference to XULAST, YVLAST, ZWLAST and TLAST, of the eight faces of the space-time block within the In-Form object is to be found.

Such patches, which are marked by having a dot, ., as the first character of their names retain their positions when the grid is changed.

It is for this reason that the use of dot-patches is to be preferred ot those of the old indicial type.

How In-Form objects are used

In-Form objects can be used for setting initial values, properties and sources by means of statements such as:


(INITIAL of PRPS at PATCHNAME is 67. with infob_OBJNAME)

(PROPERTY of RHO1 at PATCHNAME is 1.e-5*(P1+:PRESS0:) with infob_OBJNAME)

(SOURCE of TEM1 at PATCHNAME is xg+yg with infob_OBJNAME)

Thus the specific name of the object appears as an 'option' i.e. a 'modifier' of the source statement, Without it, the source would appear in all the cells of the patch.

It is however not necessarily the only one. For example, the above line could be modified to:

(SOURCE of TEM1 at PATCHNAME is xg+yg with infob_OBJNAME!fixval)
or
(SOURCE of TEM1 at PATCHNAME is xg+yg with infob_OBJNAME!fixflu)

If no additional option is added, the default !fixflu is presumed.

Currently available object shapes

At the present time (April 2009), six basic shapes of In-Form objects, and of two kinds, are provided, namely:
  1. Cell-enclosing (also called 'volumetric') shapes, namely:
    1. BOX,
    2. SPHERE, and
    3. ELLIPSOID,

    and

  2. cell-penetrating (also called 'sub-grid') shapes, namely:

    1. POINT,
    2. LINE, and
    3. PLANE QUADRILATERAL.
However, objects of much more complex shapes may be constructed by using one or more of the following techniques:
  1. restricting the dimensions of the PATCH so that parts of the specified shape lie outside it;
  2. setting the arguments of the basic-shape functions (to be described) as expressions rather than constants; and
  3. by 'adding' and 'subtracting' several basic shapes.
Further, the 'subtraction' feature permits creation of 'negative' objects, i.e. those in which the object attributes are applied to those cells which the object does not enclose or penetrate rather than to those which it does.


(b) The basic cell-enclosing (i.e. volumetric) shapes

Each of the basic shapes of the first group is described by an In-Form function possessing (nearly) the same name as the shape (but ELLIPSOID is shortened to ELLPSD). They will now be described, in turn.

The BOX function

The format governing the use of BOX in INFOB statements is indicated by the following example:
   (INFOB at BOXPAT1 is BOX(arguments) with INFOB_BOX1)
where BOXPAT1 and BOX1 are names chosen freely by the user.

The arguments in question are as follows:
    BOX(x0,y0,z0,xsize,ysize,zsize,alpha,beta,theta)
where
x0 = X-coordinate of west south low corner of box, in meters
y0 = Y-coordinate of west south low corner of box, in meters
z0 = Z-coordinate of west south low corner of box, in meters
xsize = X-size of box side, in meters
ysize = Y-size of box side, in meters
zsize = Z-size of box side, in meters
alpha = angle rotating around x axis, in radians
beta = angle rotating around y axis, in radians
theta = angle rotating around z axis, in radians

The six position and size arguments correspond to those which are used for VR-objects; but the three rotation arguments follow a different convention.

Library case 383 illustrates the use of the box function for the creation of a box in a cubical domain, with all its rotations equal to 0.25 radians, by means of the following statements:

  inform11begin

(stored of mark at patch1 is 1.0 with infob_1) ! MARK object

(initial of prps is 100 with infob_1) ! initialise PRPS

real(x0,y0,z0,xs,ys,zs,al,be,th)      ! declarations

x0=xulast/4   !  x/y/z position of box

y0=yvlast/4   !

z0=zwlast/4   !

xs=xulast/2   !  x/y/z size of box

ys=yvlast/2   !

zs=zwlast/2   !

al=0.25       !  alpha/beta/theta angles of coordinate system

be=0.25       !  of box

th=0.25       !

(infob at patch1 is box(x0,y0,z0,xs,ys,zs,al,be,th) with infob_1)

  inform11end
Here, in order to make its shape and position visible in PHOTON and the VR VIEWER, the variable MARK has been stored and given the value of 1.0 for all the cells enclosed by the object.

It will be noticed that the often-convenient device is adopted of defining x0, y0, etc as real variables, and setting their values in statements which precede (INFOB ... .

In this case, the values are constants, which would not be difficult to read if inserted directly as:
  BOX(:xulast/4:,:yvlast/4:, etc) ;
but, were they long formulae, their appearance following BOX( would make the line tiresomely long.

A PHOTON plot of the case-383 BOX object is shown here. It was created by the sur mark x 0.99 and sur mark y 0.99 commands.

In this example, each parameter is a constant; but each could have been a function, as will be illustrated in section (e) below.


The SPHERE function

The format governing the use of SPHERE in INFOB statements is similar to that of BOX, namely:
   (INFOB at SPHPAT1 is SPHERE(arguments) with INFOB_SPH1)
where SPHPAT1 and SPH1 are names arbitrarily chosen by the user.

It has only four arguments however, namely:
    SPHERE(xc, yc, zc, radius)
where
    xc = x coordinate of the centre, in meters
    yc = y coordinate of the centre, in meters
    zc = z coordinate of the centre, in meters
    radius = radius of the sphere, in meters
because rotations about its centre cannot change its shape.

When the calculation is being carried out with a Cartesian grid, the coordinate system of the sphere coincides with the coordinate system of the calculation domain.

However, when the calculation is being carried out with a cylindrical-polar-coordinate grid, the cartesian coordinate system of the sphere has its origin at the bottom left-hand corner of a rectangular box which circumscribes a cylinder of radius RINNER+YVLAST.
In this case, cartesian coordinates xc and yc are related to the polar coordinates xp and yp by the relations:

xc=(yvlast+rinner) + (yp + rinner) * sin(xp)
and
yc=(yvlast+rinner) + (yp + rinner) * cos(xp)

The Z coordinates of the origins and the directions of Z axes of both coordinate systems coincide with one another.

Library case 772 creates an In-Form object, namely a sphere with its centre on the axis of a polar grid, by means of:
(INFOB at PATCH1 is SPHERE(10, 10, 10, 5) with INFOB_1)

The PHOTON plot displayed here reveals the result.

In this case, it may be noted, xce, yce and zce are declared as character variables. This is the preferable procedure when the possible use of formulae as arguments is to be provided for.

The ELIPSOID function

The format governing the use of ELLIPSOID in INFOB statements is indicated by the following example:
   (INFOB at ELLPAT1 is ELLPSD(arguments) with INFOB_ELL1)
where ELLPAT1 and ELL1 are names chosen freely by the user.

The arguments in question are as follows:
    ELLPSD(x0,y0,z0,xrad,yrad,zrad,alpha,beta,theta)
where
x0 = X-coordinate of the centre of the ellipsoid, in meters
y0 = Y-coordinate of the centre of the ellipsoid, in meters
z0 = Z-coordinate of the centre of the ellipsoid, in meters
xrad = X-direction radius, in meters
yrad = Y-direction radius, in meters
zrad = Z-direction radius, in meters
alpha = angle rotating around x axis, in radians
beta = angle rotating around y axis, in radians
theta = angle rotating around z axis, in radians

Library case 384 illustrates the use of the ELLPSD function for the creation of an ellipsoid in a cubical domain, with all its rotations equal to 0.25 radians, by means of the following statements:

  inform11begin

(stored of mark at patch1 is 1.0 with infob_1) ! MARK object

(initial of prps is 100 with infob_1) ! initialise PRPS

real(x0,y0,z0,xs,ys,zs,al,be,th)      ! declarations

x0=xulast/4   !  x/y/z position of ellipsoid

y0=yvlast/4   !

z0=zwlast/4   !

xs=xulast/2   !  x/y/z radius of ellipsoid

ys=yvlast/3   !

zs=zwlast/4   !

al=0.25       !  alpha/beta/theta angles of coordinate system

be=0.25       !  of ellipsoid

th=0.25       !

(infob at patch1 is ellpsd(x0,y0,z0,xs,ys,zs,al,be,th) with infob_1)

  inform11end



An image representing the ellipsoid created by core-input-file-library case 384 can be seen by clicking here.

Another example of the use of ellipsoid objects is core-library case 162, wherein the ellipsoid is given such an extremely large y-direction radius that, within the domain of study, it can be regarded as a cylinder.

It is indeed used there to represent a cylindrical pipe with an aperture in its walls from which gas is released into the atmosphere,

A fuller description of the situation can be found by clicking here,


(c) The basic cell-cutting (i.e. sub-grid) shapes

Sub-grid objects are those of which one of the dimensions is smaller than that of the computational grid.

The three basic shapes of this kind are: POINT, LINE and PLANE; and to each there corresponds an In-Form function.

The POINT function

The format governing the use of POINT in INFOB statements is indicated by the following example:

   (INFOB at PNTPAT1 is POINT(arguments) with INFOB_PNT1!options

where PNTPAT1 and PNT1 are names chosen freely by the user.

The arguments in question are as follows:
   POINT(x0,y0,z0,nomdiam)
where:

x0 = X-coordinate of the point, in meters,
y0 = Y-coordinate of the point, in meters,
z0 = Z-coordinate of the point, in meters,
nomdiam = nominal diameter of the point.

The setting of point objects is exemplified in Core Library case 385, as seen by clicking here.

The LINE function

The format governing the use of Line in INFOB statements is indicated by the following example:

   (INFOB at LINPAT1 is POINT(arguments) with INFOB_LIN1!optionsV

where LINPAT1 and LIN1 are names chosen freely by the user.

The arguments in question are as follows:
   LINE(x0,y0,z0,x1,y1,z1,nomdiam)
where:

x0 = X-coordinate of the start point, in meters,
y0 = Y-coordinate of the start point, in meters,
z0 = Z-coordinate of the start point, in meters,
x1 = X-coordinate of the end point, in meters,
y1 = Y-coordinate of the end point, in meters,
z1 = Z-coordinate of the end point, in meters,
nomdiam = nominal diameter of the line.

The setting of line objects is exemplified in Core Library case 385, as seen by clicking here.

The PLANE function

The format governing the use of PLANE in INFOB statements is indicated by the following example:

   (INFOB at PLAPAT1 is PLANE(arguments) with INFOB_PLA1!options)

where PLAPAT1 and PLA1 are names chosen freely by the user.

The arguments in question are as follows:
   PLANE(
where:

x0 = X-coordinate of 1st vertex, in meters,
y0 = Y-coordinate of 1st vertex, in meters,
z0 = Z-coordinate of 1st vertex, in meters,
x1 = X-coordinate of 2nd vertex, in meters,
y1 = Y-coordinate of 2nd vertex, in meters,
z1 = Z-coordinate of 2nd vertex , in meters,
x2 = X-coordinate of 3rd vertex , in meters,
y2 = Y-coordinate of 3rd vertex, in meters,
z2 = Z-coordinate of 3rd vertex, in meters,
x3 = X-coordinate of 4th vertex, in meters,
y3 = Y-coordinate of 4th vertex, in meters,
z3 = Z-coordinate of 4th vertex, in meters,
nomdiam = nominal thickness of the plane.

Not all shapes are permissible, as shown here.

Further, if the user inadvertently selects four points which do not lie in a plane, the fact is detected by PHOENICS, which thereupon changes the 9th co-ordinate to such a value (there can be only one) which causes the fourth vertex to lie in the plane of the other three; or, if that is not possible, it does it for the 8th or the 7th.

It is sometimes useful to distinguish the two sides of the plane as being 'positive' or 'negative'. The convention adopted is that the positive side of the plane is that in which one must look if the first, second, third and fourth points are to apppear in clock-wise order.
Thus we are looking in the positive direction of the top-left quadrilateral above (and therefore seeing its negative side:
and we are looking in the negative direction at the top-right quadrilateral (and therefore seeing its positive side.

The setting of plane objects is exemplified in Core Library case 385, which employs PIL do loops to enable many objects to be set, in orderly groups

Graphical display

All the objects introduced in case 385 are displayed here by way of surface-value plots of PRPS which is specified as 100 within all the intersected cells.

Points, lines and planes are all represented, the later by way of 'quadrilaterals' which have been reduced to triangles, as is always permissible, by having two cooincident vertices.


(d) Shapes made by restricting the PATCH size

The sphere object

Core Input-File Library case 386 concerns a sphere placed in a cartesian grid with its centre at the co-ordinate axis. Its radius, and the domain dimensions, XULAST, YVLAST and ZWLAST, are all equal to 1m.

When the patch referred to in the INFOB command is as large as the whole domain, the photon picture showing the contours and surface of the MARK variable are as shown here.

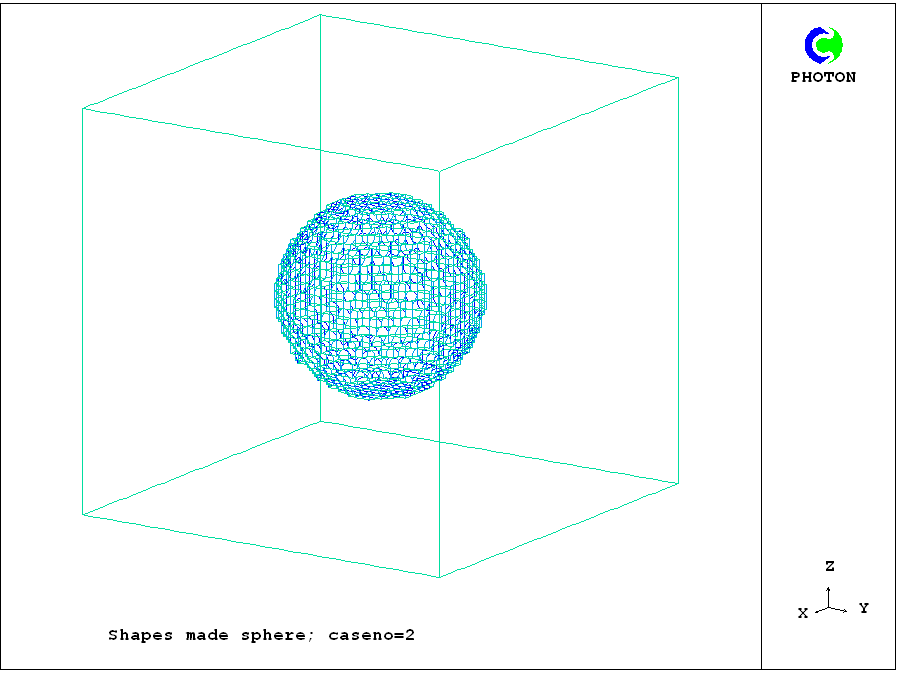

When the size of the patch is reduced by 20% and 40% respectively in the y- and z-directions, the corresponding images are those shown below, that on the left corresonding to use of an indicial patch and that on the right to a 'dot-patch'. They are of course identical.

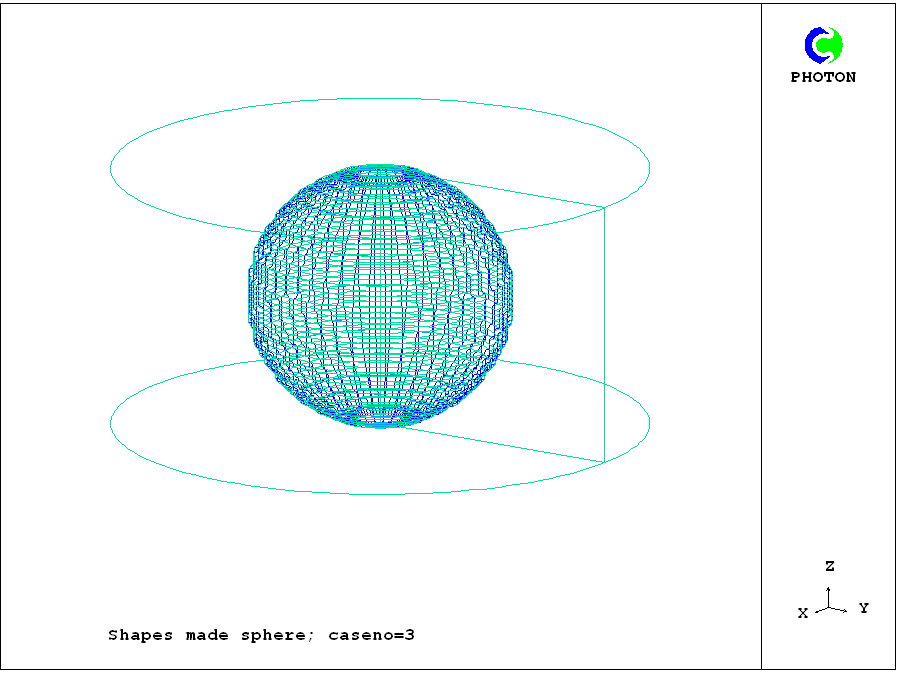

When however the distribution of the grid intervals is drastically changed by making the fourth arguments of the GRDPWR statements 0.5 rather than 1.0, the corresponding pictures are as shown below:

Evidently the shape of the object has changed for the indicially-sized patch; but it has remained constant for the geometrically-sized one. That the grid change is the same in both cases is shown be the eqaual enlargement of the white bands used by PHOTON to high-light the co-ordinate axes.

Another example using spheres

Core Input-File Library case 785 illustrates the use of a size-restricting patch to confine two concentric spheres to the layer of cells adjacent to a domain boundary, where they are used so as to represent two apertures, one disk-shaped and the other annular.

Of the two images below, that on the left displays the shape of the apertures by way of MARK contours, while that on the right shows the associated velocity vectors.

Of course, use of a finer grid would improve the circularity-appearance of the aperture edges. The use of a dot-patch makes this easy.

A final remark about the use of patches to limit object size

Although the just-demonstrated capability is sometimes useful, the fact that the surfaces of patches are by-definition aligned with the grid is a severe lmitation.

The use of 'subtraction', to be discussed in section (f) below, is much more powerful.



(e) Shapes made by using non-constant parameters

A pyramid made by use of the box function

Core input-file library case769 shows how, by using expressions rather than constants as arguments, the BOX function can be used for creating the pyramid shown below.

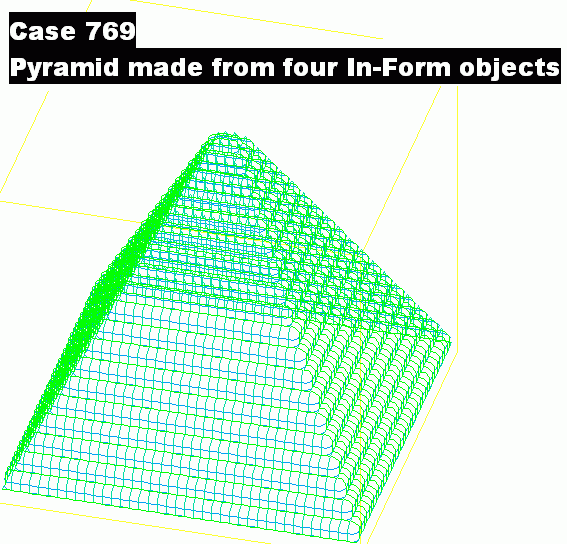

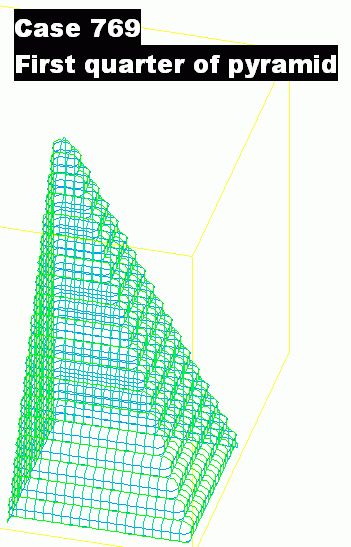

Examination of the Q1 file shows that the pyramid is composed of four parts, of which the first, created by the lines:

(INFOB at PATCH1 is BOX(10,10,0,.5*(-ZG+20),.5*(-ZG+20),$

16*(-ZG+20.),0,0,0) with INFOB_1!poros)
while the second is created by the lines:
(INFOB at PATCH1 is BOX(10,10,0,.5*(-ZG+20),.5*(-ZG+20),$

16*(-ZG+20.),0,0,.5*PI) with INFOB_1!poros)
in which the sole differences have been distinguished by the red font.

These first two quarters of the pyramid are shown below:

Let us now consider how it was that the quarter pyramids were created. The crucial steps were:

  1. The two red-printed 'rotation' arguments above, and the two further ones which can be found for the third- and fourth-quarter statements,in the case-769 Q1, namely 3*PI/2 and 1.5*PI, dictated that the four quarters were each rotated by an extra right angle about the corner of the box at: x=10, y=10, z=0.

  2. Then the first and second 'size' arguments, namely:
     5*(-ZG+20) and .5*(-ZG+20),
    dictate that horizontal dimensions of the box diminish linearly as the height zG increases. This gives the object its 'pointed'shape.

  3. The third 'size' argument, namely
    16*(-ZG+20.)
    proves to be much less important; indeed the person who introduced it was probably not perfectly clear as to what he or she was doing; for to insert
     ZG
    produces only porosity difference at the very peak of the pyramid; then inserting
     ZWLAST
    or
    2.0*ZWLAST
    or any large-enough number produces no further differences at all!

    All that is important is that, when the EARTH solver module is deciding about each cell having co-ordinates xG, yG and zG whether it lies inside of outside the box, the box appropriate to that cell should have a z-dimension large enough to enclose it.

  4. Evidently, a truncated (i.e. flat-topped) pyramid could have been created by reducing the magnitude of the z-size argument.

  5. Now that the secret has been revealed, it is obvious that there is no limit to the variety of shapes which can be created. Here for example is a shape created by making the z-rotation argument decrease as zG increases:

  6. Finally it should be mentioned that the four quarter-pyramids have all been given the same name, infob_1, in the case-769 q1. There is no objection to this; but, had it been desired to render display easier by giving each a diferent value of MARK, individual names would have been required.

Shapes made by use of the sphere function

Core input-file library case749 shows how to create cones, spirals and a 'curved duct', by using the sphere object. It also enables tests to be made of the grid-independence of the In-Form-object settings.
Cartesian. cylindrical-polar and BFC grids are all represented.

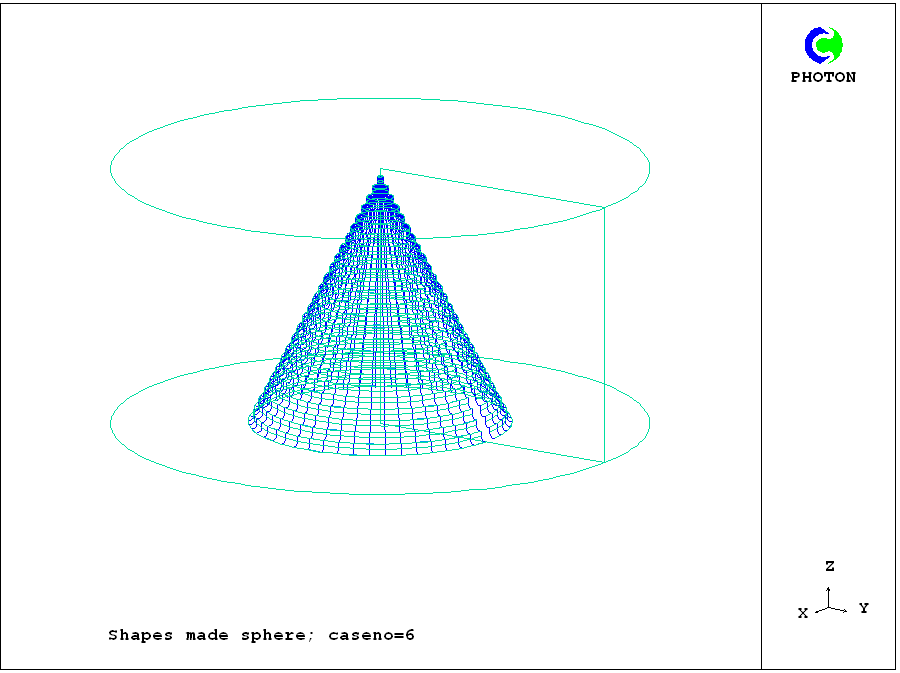

The following hyperlinks lead to photon displays of the various shapes:
casenoshapegrid typehyperlinks
1fixed spherecartesian click here
2fixed spherebfc click here
3fixed spherepolar click here
4conecartesian click here
5conebfc click here
6conepolar click here
7spiralcartesian click here
8spiralbfc click here
9spiralpolar click here
10curved ductcartesian click here
11curved ductbfc click here

In the following table are shown the values of the arguments of the sphere function in the infob statement for the various cases. namely:

(infob at .patch1 is sphere(x0,y0,z0,rad) with infob_1)

casenox0y0z0rad
1xulast/2yvlast/2zwlast/2 xulast/4
2xulast/2yvlast/2zwlast/2 xulast/4
3xulast/2yvlast/2zwlast/2 yvlast/2
4xulast/2yvlast/2zg 0.25*(:zwlast:-zg)
5xulast/2yvlast/2zg 0.25*(:zwlast:-zg)
6yvlastyvlastzg 0.5*(:zwlast:-zg)
7:xulast/2:*(1+0.8*cos(:PI2:*zg)) :yvlast/2:*(1+0.8*sin(:PI2:*zg))zg zwlast/10
8:xulast/2:*(1+0.8*cos(:PI2:*zg)) :yvlast/2:*(1+0.8*sin(:PI2:*zg))zg zwlast/10
9:yvlast:*(1+2*:rad:*cos(:PI2:*zg)) :yvlast:*(1+2*:rad:*sin(:PI2:*zg)) zg yvlast/4
10xg:yvlast/2::zwlast/2:+0.25*sin(:pi2:*xg/xulast) yvlast/4
11xg:yvlast/2::zwlast/2:+0.25*sin(:pi2:*xg/xulast) yvlast/4

The following points should be noted:

Library case 249 also possesses two boolean variables: altercrt and alterbfc. Both were set false in all the cases shown so far; but, when set true,the former alters the cartesian grid and the latter alters the bfc one. They have been used for further testing the grid-independence of the In-Form object settings, with the results shown here.

Clearly, although the distribution of the grid lines does affect the smoothness of its surface, the position of the sphere in cartesian space is not infuenced by it.

The bfc grid, it should be mentioned, was coarsened as well as distorted because the the execution of the PIL do loop in the Q1 file, by which the distortion was effected, is rather slow.

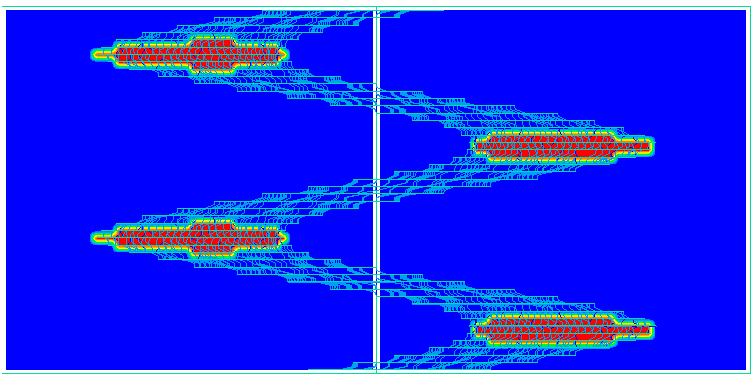

case 768 reveals that there is more than one way to create a spiral in a polar-coordinate grid; and its way of doiing so does create cross-sections which are more truly circular than those of case 749, as the next Photon image shows:

This method, as is seen, uses the angular coordinate xg in the formula; therefore it is necessary to use two spheres for the two-turn spiral shown here. They can however, if desired, be specified in a single INFOB statement, as is explained by comments in the Q1 file of the case.


(f) Shapes made by adding and subtracting

  1. The two-turn spiral
  2. A disk at any angle


(g) 'Negative' objects


(h) Positions varying with time


(i) Shapes varying with time
