Installation of PHOENICS 2014

Contents

  1. Introduction
  2. Specification of Items
  3. Installation Procedures
  4. Testing the Installation
  5. Starting to use PHOENICS
  6. Parallel PHOENICS
  7. Appendix A. Unlocking PHOENICS
  8. Appendix B. Frequently Asked Questions and Troubleshooting

1 Introduction

1.1 Purpose of the document

The purposes of this document are:

The contents of this document are applicable to both recompilable, which enables the user to re-link the executables, and non-recompilable with which the user can only use the supplied executables.

1.2 System configuration

To install PHOENICS, the user needs to have a hard disk with at least a total of 1.5GB free space. Additional space should be available for running PHOENICS. How much space will depend on the size of simulations made; for complex models it is possible to generate individual output files which are more than 1GB in size. For efficient use of PHOENICS the user should have at least 10GB of free hard disk space available.

It is recommended that under Windows Vista/7/8 a minimum of 2GB RAM be installed for running PHOENICS. The amount of available RAM will limit the size and complexity of simulations made. Individual programs running under the 32-bit Windows operating systems are limited to 2GB in size. To go beyond this limit, the user will need to have a 64 bit version of the Windows operating system and use the 64-bit version of PHOENICS. PHOENICS has no special graphics requirements; most modern graphics cards should have no problem running PHOENICS. However, we have found that with some of the graphics cards that come integrated with the motherboard do give slow performace when rotating the domain with result contours displayed. The minimum recommended screen resolution is 1024*768 pixels.

An Intel Visual Fortran compiler version 10.1 or later is required for the recompilable version of PHOENICS compiled using Intel Fortran compiler. In addition, a version Microsoft Visual Studio is required since this contains the linker. Since the advent of Visual Fortran version 10.1 Intel includes a copy of Microsoft Visual Studio premier partner edition, so that a separate purchase of Visual Studio is no longer necessary.

Please note that for Windows Vista and Windows 7/8 an Administrator account will be required to install the software.

1.3 The remainder of the document

Chapter 2 lists the items supplied with the installation

Chapter 3 describes the installation procedures

Chapter 4 shows how to test the success of the installation

Chapter 5 advises users on starting to use PHOENICS

Chapter 6 shows how to install the parallel version of PHOENICS

Appendix A gives information on how to obtain a unlocking string

Appendix B provides answers to Frequently Asked Questions and to troubleshooting


2 Specification of Items

The following items will be supplied:

2.1 Software

2.2 Documentation


3 Installation Procedures

The quick installation instructions are provided inside the cover of the CD-ROM case which should enable experienced customers to upgrade their PHOENICS version successfully. Otherwise, it is recommended to read through the following sections before starting installation.

3.1 Ensuring that there is sufficient free disk space

At least 1.5 GB of free disk space must be available on the target machine before you start to install PHOENICS.

3.2 Checking if PHOENICS has already been installed on the target machine

If an earlier version of PHOENICS is already present, it must be deleted, or the name of the existing installation directory changed before installing the new version. You may wish to preserve user files from working directories, such as \phoenics\d_priv1 , and user geometry files under \phoenics\d_satell\d_object\users. These can be copied to a temporary location with Windows Explorer, and later moved to the equivalent locations in the new installation.

To delete the old installation, open Windows Explorer and drag the \PHOENICS folder into the Recycle Bin. To rename the old installation to, say, PHOENICS.OLD, open Windows Explorer, right click on the \PHOENICS folder, then on Rename and type in PHOENICS.OLD.

If a previous version of PHOENICS exists on this PC, and you do not rename or remove it, it will not be overwritten by this installation process. The installation process will finish normally, but no existing files will have been overwritten.

If you have an old version of PHOENICS on your drive C:, and you would like to keep it on the C: drive, you can create a virtual drive and install PHOENICS on this virtual drive, with no need to rename or remove your old PHOENICS from the C: drive.

Click on 'My computer' icon to ascertain what drive letters are in use. Usually the C: drive will be the user's local hard drive and D: a removable drive (eg CD or DVD), other drive letters may already be in use for mapped network drives. Suppose the drive P: is not in use, you can create a virtual drive P:.

First, make a root level folder with a suitable name, e.g. C:\PHOENICS2014; then in a Command Prompt window, enter the command

SUBST P: C:\PHOENICS2014

You now have a virtual drive P: onto which you can load PHOENICS 2014 without affecting any older version of PHOENICS you may have on C:.

Please note that any subst drives are not remembered after a user logout. The drive will need to be re-created at each logon. This can be achieved by creating a batch file, say map_drive.bat, and include this in the Startup folder under the Start menu.

3.3 Installing the Intel Visual Fortran compiler

If the delivery is for a non-recompilable version of PHOENICS, then no compiler is required.

To install the compiler, insert the Intel Compiler CD-ROM in the CD drive. If Autorun (it is a default setting for the CD-ROM drive on computers) is enabled, follow the instructions on your screen. If installation does not start automatically, use Windows Explorer to open the CD drive and then double-click on INSTALL to start the installation process.

3.4 Installing PHOENICS

Follow the steps below to install the entire PHOENICS program suite on to the hard disk.

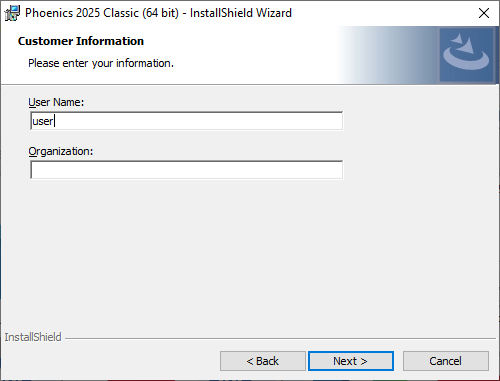

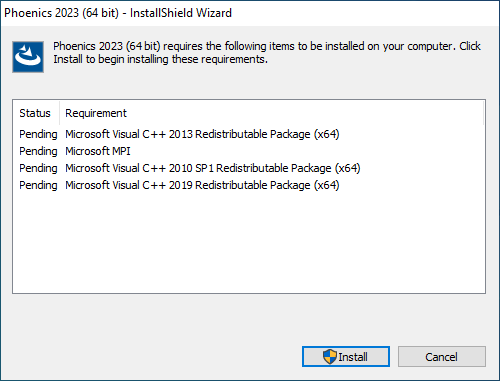

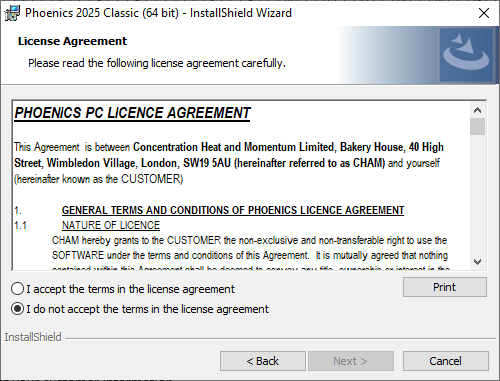

  1. Load the CD-ROM into your CD reader. The setup program will automatically start

    If you do have a previous PHOENICS installation refer to section 3.2 above for instructions on how to proceed.

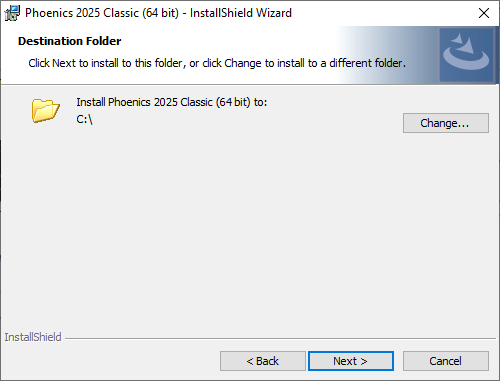

  2. Select the installation location

    In response to the screen prompt for the location of the phoenics directory, the user must specify the target location if other than C:\ phoenics. Ideally the phoenics directory should be located in the root of whichever drive was selected for PHOENICS to be loaded on, but it can be installed elsewhere.
  3. An environment variable 'phoenics' is created by the installation process, and this variable is set to the pathname of the location of PHOENICS. For example, if PHOENICS is loaded into c:\Program Files\phoenics then the value of the environment variable 'phoenics' is set to 'c:\Program Files\phoenics'. In a case such as this example, when PHOENICS is installed in a folder which is not in the root of a drive (i.e. not as \phoenics) then in order for POLIS to function the file cham.ini requires modification (see Appendix B, item (3) for details)..

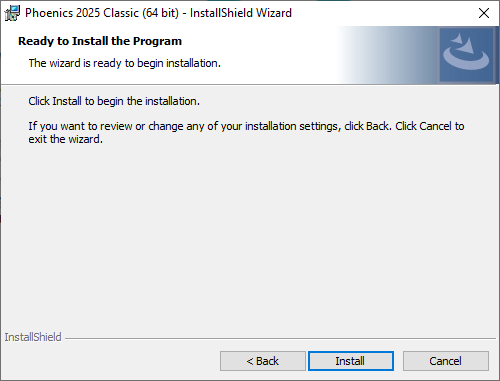

  4. If the installation is successful, the user will see five PHOENICS icons, PHOENICS Commander, PHOENICS-VR, WINDF, PRELUDE and POLIS created on the desktop.

    The PHOENICS Commander icon is a shortcut for a global interface for PHOENICS; the PHOENICS-VR icon is a shortcut for the PHOENICS GUI; the WINDF icon is the shortcut for a Command Prompt window with the correct path for running the INTEL Fortran version of PHOENICS; Prelude is an alternative interface to the VR environment; POLIS icon is the shortcut for the PHOENICS On-Line Information System.

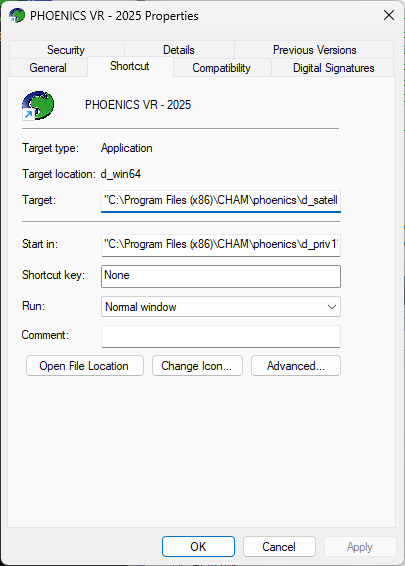

If PHOENICS is installed on one disk drive (e.g. C:) and the working directory is on a different drive (e.g D:), then the PHOENICS-VR icon will require changing. Click on the icon with the right mouse button, select Properties and Shortcut, and change the drive letter in the filed 'Start in:' to be the required letter, in this case D:.


4 Testing the Installation

It is recommended that the user uses PHOENICS VR for testing the installtion.

4.1 PHOENICS VR

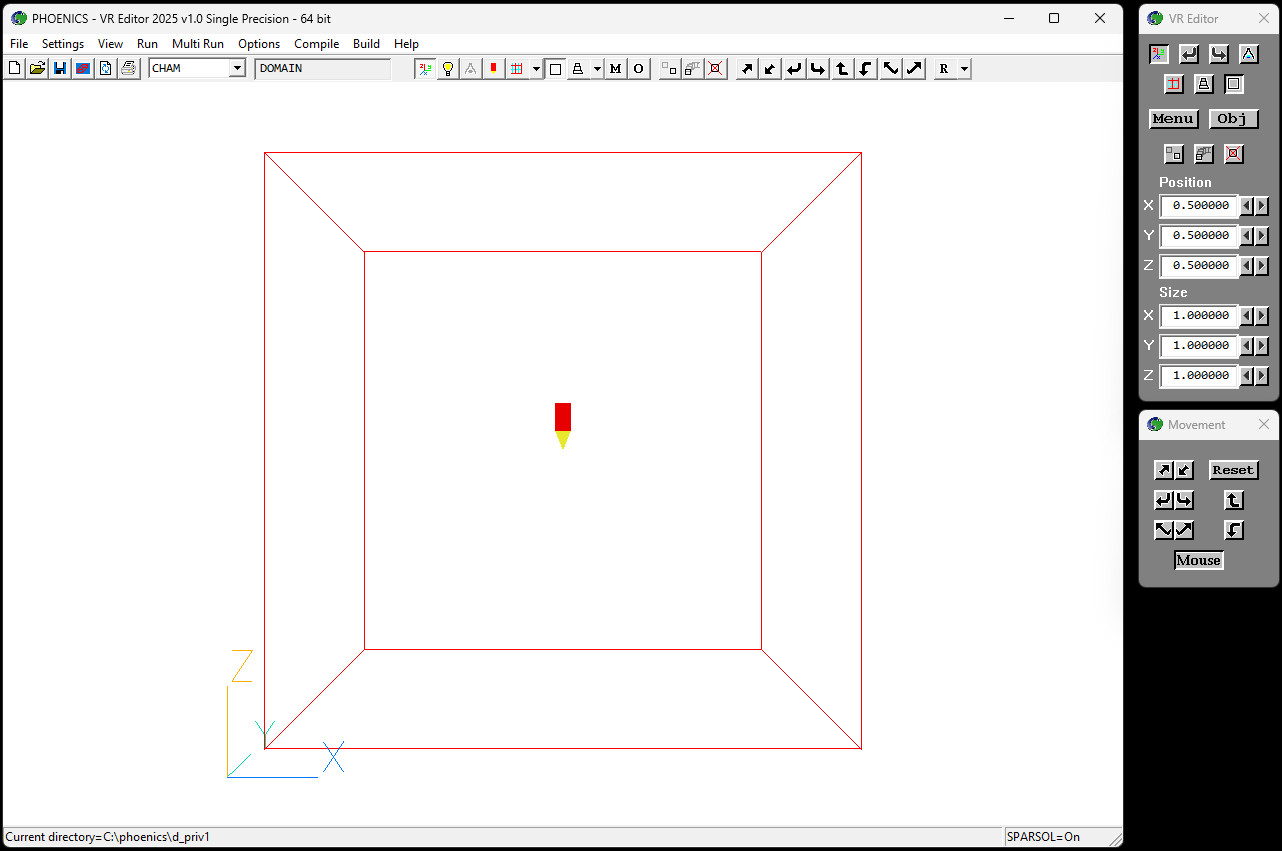

Double-click on the CHAM icon, labelled 'PHOENICS VR' in the desktop. The screen shown below should should appear.

PHOENICS is provided with a temporary license file. If you received PHOENICS on a DVD disc, then this license file should provide up to two months usage before expiry. However, if you received PHOENICS as a download then you are likely to receive a dialog message that the code has expired.

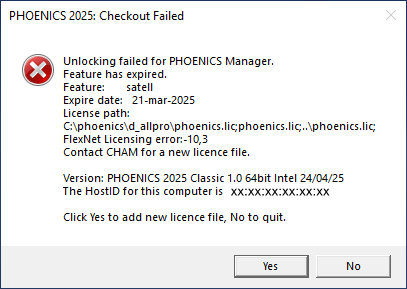

If you get the expired notice, then refer to Appendix A and contact CHAM for a new license file.

4.2 Test run

Once you have valid license file you can prepare a test run of the solver. For this is best to select a simple case from the PHOENICS library cases, a good example to use is library case 805 – 'Sphere in a uniform stream'. To load the library case, from the File menu in PHOENICS VR select the item ‘Load from Libraries…’. This should lead to the dialog shown below.

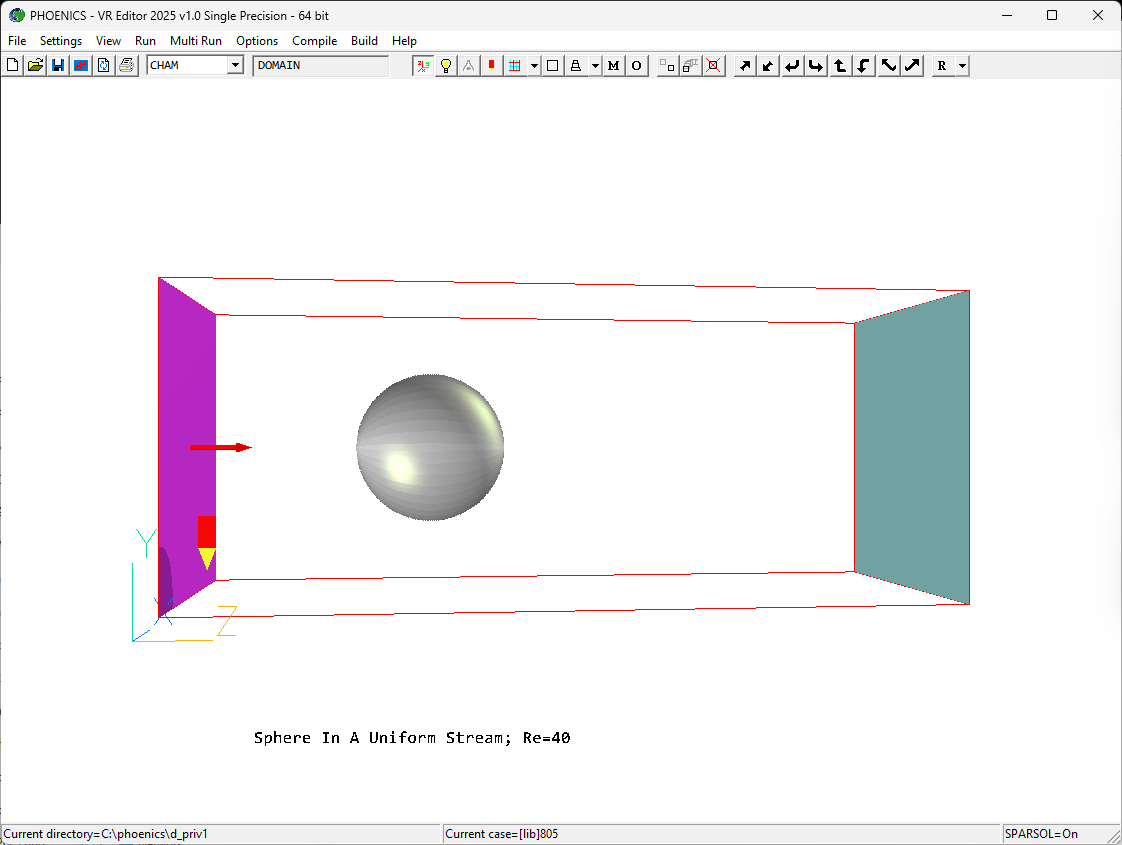

In the edit box to the right of 'Case number:' enter the number 805, then click on the button 'OK'. The PHOENICS VR window should then look like

This is a simple case of airflow entering the domain from an inlet the left and passing a sphere set in the flow field, the air exits through an outlet on the right. One can make adjustments to the flow, but for this initial test run, run the model as is. On the Run menu, select the item 'Solver'. Once selected, you will see the 'Save Current Settings' dialog below.

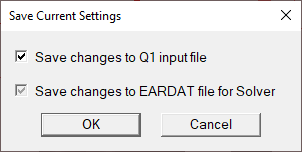

At this point you can choose whether any changes are saved to the current Q1 input file, by default this item will be ticked. This option is provided for those occasions when you wish to retain the original Q1. The file eardat will always be written at this time as it contains the input instructions for the solver. Clicking on the ‘OK’ button will launch the solver, 'Cancel' will abort the run. This run should only take a few seconds and you will see a new window appear on screen as below.

Once completed, the window will close. If the window does not appear then it indicates that the solver failed to start. At this juncture the solver should not fail. If it does, likely causes are either an unlocking failure or a failure to locate the necessary DLLs. Any failure in the unlocking should be recorded in the file 'lunit6' which will be located in the working directory (if installed in default location this file should be c:\phoenics\d_priv1\lunit6). If there is no message there then check that you have the three DLLs present in the directory c:\phoenics\d_earth\d_windf. The DLLs are named fmpich2s.dll, mpich2.dll and mpich2mpi.dll. If the DLLs and unlocking are present and correct and the solver is still not running then contact CHAM for further assistance.

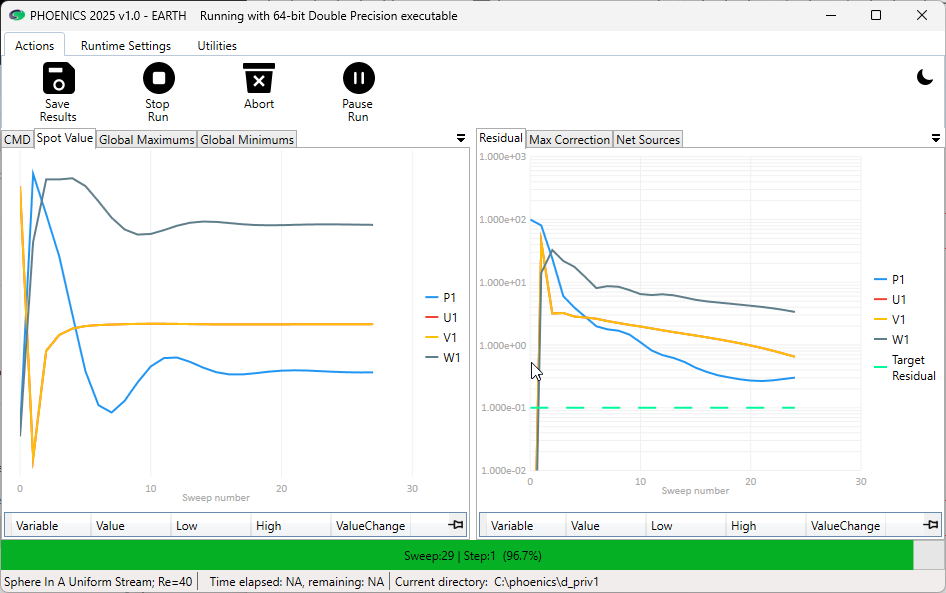

Once the solver has finished the test is now complete. You may go on to view the results in the post processor.

Use the option 'GUI – Post processor (VR Viewer)' then click OK on the following dialog. Instructions on the use of the VR Viewer are available in documents TR324 and TR326.


5 Starting to use PHOENICS

The document TR324 provides an introductory tutorial in the use of the PHOENICS VR environment. Further tutorials may be found in the following the HTML file in POLIS

/phoenics/d_polis/d_lecs/general/tuts.htm

For further detailed information access the PHOENICS On-Line-Information System.


6 Parallel PHOENICS

6.1 Introduction

This chapter describes the installation of MPICH2 for the user who purchased a licence for running Parallel PHOENICS on machines that are running Microsoft Windows or Microsoft Windows Server. It applies to installations on a single multi-core processor machine and clusters of multiple workstations or servers.

A typical configuration for running 64-bit parallel PHOENICS is a multi-core workstation with 2GB of RAM per core. However, if you are running large models then you may require double this capacity or more. Generally as computer power increases, users are building larger and larger models. So when buying new hardware do allow room for memory expansion.

The workstations in a cluster should be joined by a switch or hub running at 100Mbps or faster. For efficient operation the processors in a cluster should be of equal performance: if not, the loads will be unbalanced and the slowest processor will determine the speed of the system. MPICH2 also requires the ability to make TCP/IP socket connections between all hosts.

6.2 Preliminary Considerations

6.2.1 Multi-core Workstations

The installation process for MPICH2 on a computer with multiple CPUs (Dual-core, quad-core and so on) is simpler than the installation process for a cluster. MPICH2 should be installed on the single computer as outlined in section 6.3 (6.3.1-6.3.3 only), and the PATH set appropriately so that mpiexec.exe is visible. SMPD should also be installed on this computer.

6.2.2 Computers on a Cluster

When setting up a group of computers to perform as a cluster, the computers should belong to the same Workgroup or Domain. Details of a computer's domain can be found on the Systems Properties page found by opening the Control Panel on the computer. If you need to change the domain settings, then you should consult your network administrator.

The user account that will be used to perform parallel computation across the cluster must be able to make remote connections to all computers in the cluster. For this reason it is recommended to use an Administrator account and that this account should have the same password on all computers in the cluster.

It is a requirement that MPICH2 be installed on each PC in the cluster. To install MPICH2 the user will need to be logged in using an account with Administrator permissions. This need not be the account on which you run PHOENICS, but please note it is preferable when running over a cluster to use an administrator account.

Versions of Microsoft Windows now have the personal Firewall switched on by default. Experienced users may configure the firewall settings to allow parallel PHOENICS to run successfully, but while installing and until the user is sure that MPICH2 has been configured correctly, it is recommended that any personal firewalls are turned off. Again consult your network administrator if you are unsure how to do this. After the user has established that MPICH2 is working correctly then, of course, you may switch the Firewall back on (see settings in section 6.4).

6.3 Installation of MPICH2

It will be assumed in what follows that PHOENICS has been successfully installed in accordance with the instructions in the earlier chapters of this document. A full PHOENICS installation need only be made on one machine in a parallel cluster (the head node from which jobs will be run); however it is recommended that an installation is made on each workstation. If PHOENICS is only installed on the head node then it will be necessary to share the \phoenics directory so that all compute nodes may see it. Each workstation in the cluster will also be required to have a valid local licence file 'phoenics.lic' accessible.

On Windows platforms parallel PHOENICS uses MPICH2 as the message passing interface (MPI) for the communication between the different processors. MPICH2 is freely available on the Internet but for compatibility it is recommended that the installation is made from the MPI provided with PHOENICS package. Installation instructions are as follows:

6.3.1 Turn Off User Access Control

In order to run the MPICH2 installation program you must first be logged onto the PC using an account that has Administrator privileges. If the PC is running Vista Business or Windows 7/8 you must switch off the User Account Control (UAC) while installing MPICH2. If you fail to switch off UAC, then the installation may complete without reporting any errors but in fact SMPD will not have been installed as a service nor will the necessary registry entries have been made.

To disable UAC open the Control Panel from the Start Menu, select item "User Accounts" and then "User Accounts" once more. On this page there should be an item "Change User Account Control settings", click on this item and then change the setting to its lowest one "Never notify" as below..

Then click OK to accept the changes and you will also be asked to restart the computer before the changes take effect.

6.3.2 Run the MPICH2 installer

The installer for MPICH2 is supplied as the file

\phoenics\d_allpro\d_windf\MPI\mpich2-1.4.1p1-win-ia32.msi

This file should be executed prior to running Parallel PHOENICS, and this will initiate an Argonne National Laboratory installation of MPICH2 on your PC. Follow the installation instructions, and choose the default MPICH2 location in the Program Files folder (C:\Program Files\MPICH2) on your PC.

Please note: While it only necessary for PHOENICS to be installed on a single PC in a cluster, it is necessary to install MPICH2 or the SMPD service on all PCs.

6.3.3 Update Environment variable PATH

The PHOENICS parallel run scripts assume that mpiexec.exe is located on the users PATH on the head and compute nodes. If the default location was chosen, this should be C:\Program Files\MPICH2\bin. The PATH is set through the System Properties dialog [launched from the Control Panel]. The image below shows the stages to set the User variable, path. Go to the Advance settings page and click on Environment Variables button. If the User variable path does not exist, click on New, otherwise highlight path and click on Edit. Add the necessary path entry for mpiexec – separate any path entries by semi colons. [To modify the System variable path, consult with your network administrator.]

Since version 12, the Intel Compiler has included Intel’s version of mpich. This version is not compatible at the binary level with that used by PHOENICS, so it is important when using PHOENICS that MPICH2 appears in the PATH before the Intel Compiler. So where above it was indicated that C:\Program Files\mpich2\bin be added to the end of the path, if you have Intel compiler installed on your PC it is safer for you to add it at the beginning instead. This will ensure that the correct version of smpd and mpiexec will be found when you try to run parallel.

Note: If the path causes the Intel version of mpiexec to be used then the parallel solver will stall on start-up and calculations will not proceed.

6.3.4 Registering user account

When running across a cluster it is recommended to register a user account from which to launch MPICH2 on the head node. While it is not essential, it does simplify matters if this account is an administrator on the workstations within the cluster. This account will then be used to launch parallel Phoenics on the compute nodes. To register an account, open a Command Prompt window [From the Start menu it is located under Accessories], and run the MPICH2 program mpiexec.exe with the option -register. You will be prompted for an account and password, e.g.


> mpiexec.exe -register

account:  cfd1

password: ********

confirm:  ********

Do you want this action to be persistent (y/n)?  y

If the cluster has been set up within a network Domain (rather than a Workgroup), then in the above, you should also specify the domain as part of the account name. For example, if 'phoenics' is the domain and 'cfd1' is the user account within that domain, enter phoenics\cfd1. The response 'y' ensures that this action is persistent, i.e. this registration process does not have to be repeated for each session on this computer.

6.4 Windows Firewall settings

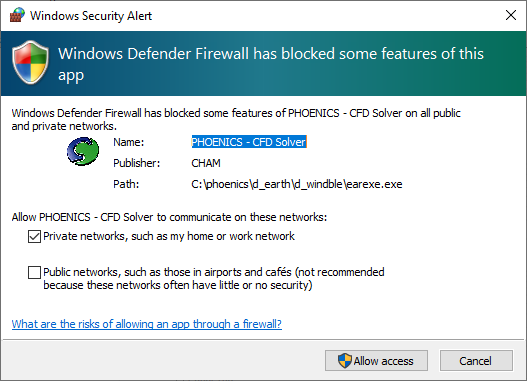

If the firewall is activated, when the PHOENICS solver (earexe.exe) is run for the first time - in either sequential or parallel mode - a Windows Firewall Security Alert will be generated.

If the user is (or intends) running the solver in parallel mode then the user should click on the 'Allow access' button. On Windows 7 the user will need to also specify on which networks to allow access. Normally you would only be making parallel runs on either a domain or private network, so only these two items need be ticked before clicking on.

When running in parallel mode you will also get security alerts for the MPICH2 Process Manager (smpd.exe) and the MPICH2 Process launcher (mpiexec.exe). If you intend to run the parallel solver over a cluster it is essential that all three programs are unblocked/allowed access.

Allowing access to the three programs above on the head node is not yet sufficient to enable parallel PHOENICS to run across a cluster of computers. Before you can run across a cluster the user must first go to each of the compute nodes and allow access to the PHOENICS solver (earexe.exe) and the MPICH2 Process manager (smpd.exe).

On Windows XP, open the Windows Firewall icon from the Control Panel, then go to the Exceptions Page. On the head node check that the following three programs are included, if any are missing you will need to use the "Add Program…" button to add them:


C:\Phoenics\d_earth\d_windf\earexe.exe

C:\Program Files\ mpich2\bin\smpd.exe

C:\Program Files\ mpich2\bin\mpiexec.exe

You may also use the “Change scope..” button to restrict access to My network (subnet) only.

On each of the compute nodes you will need to add the programs


C:\Phoenics\d_earth\d_windf\earexe.exe

C:\Program Files\mpich2\bin\smpd.exe

On Windows 7, open the Control Panel and then click on 'System and Security'. Under the section 'Windows Firewall' there should be an item 'Allow a program through Windows Firewall'. This will open a dialog from which you can check the permitted programs and allow you to add the additional programs as indicated above.

Users of other personal firewall will need to unblock the above programs in a manner suitable for their firewall software.

6.5 Running Parallel PHOENICS

6.5.1 Running the standard parallel Earth

The simplest way to launch parallel EARTH is from the VR-Editor, although it can be run from a Command Prompt window.

If a parallel PHOENICS licence has been purchased, an additional sub-menu, 'Parallel Solver', will appear under the 'Run' menu option in the VR-Editor. Once the parallel solver is chosen, a dialog box will appear on the screen where the user can either specify the number of processes to use or to specify a MPI configuration file.

The pulldown combo box provides the user with an option to select up to 64 processes in steps of 2. Those users who have more than 64 processors on their PC cluster may type the appropriate number into the box.

The 'Cluster Host List' portion of the dialog enables the user to select which hosts in the cluster are used for computation. Here there are three options,

  1. 'Local Only': the default, will just use cores on the local machine (ie that on which the instance of VR-Editor is running).
  2. 'Any': will use a computer assigned distribution of processes on the nodes in the cluster. These must have been previously identified in the cluster.
  3. 'Specify in list': users may select hosts from the scroll list. By default this list should contain those hosts previously idenified in the cluster, but one can also add to the list by using the 'Add' button. Alternatively, one can supply a 'Machine List' file which contains a list of those workstations from which to select. This file is simply a text file with name of the workstations each on a separate line.
  4. This mode of running the parallel solver will always launch the root process on the local machine and a convergence monitoring window will appear on screen (as per the sequential solver). If running across a cluster, then the run will attempt to launch an instance of the solver from the same location on each of the compute nodes. If the default locations are used, this will be C:\phoenics\d_earth\d_windf\earexe.exe. If a Private Earth is to be used, then this also should be copied to the equivalent directory for each of the compute nodes.

    When running across a cluster, it is important to consider the working directory on the compute nodes. This is because, by default, mpiexec will attempt to launch the process in the equivalent directory on all the workstations. So, if on the head node you are working in c:\phoenics\myprojects\projectbeta then this directory should also appear on all the workstations in the cluster otherwise the run will fail.

    As it can difficult to always remember to create the working directory on all the cluster workstations there is an alternative. One can set up an environment variable PHOE_WORK_DIR on each of the cluster to point to an existing fixed directory

    e.g. PHOE_WORK_DIR=C:\phoenics\mypar_runs

    Then all processes (aside from the launching process) will write their output to this location.

    PLEASE NOTE: The use of PHOE_WORK_DIR is not recommended if you are likely to make multiple parallel runs simultaneously. This is because the second run (and subsequent runs) will overwrite the working files of the first.

    The above methods of launching the parallel solver do not allow the user to fix the number of solver instances on each workstation. If you want that level of control, then the user will need to use the MPI Configuration file (see section 6.5.2 below).

    6.5.2 Configuration File

    The MPI configuration file option gives a more flexible way of launching the parallel solver. Assuming we have PHOENICS installed on each computer in the cluster, the following config file will use the public earexe.exe to run a single process on each of the four computers.


    -localroot -np 1 -host cham-cfd1 c:\phoenics\d_earth\d_windf\earexe.exe

    -np 1 -host cham-cfd2 c:\phoenics\d_earth\d_windf\earexe.exe

    -np 1 -host cham-cfd3 c:\phoenics\d_earth\d_windf\earexe.exe

    -np 1 -host cham-cfd4 c:\phoenics\d_earth\d_windf\earexe.exe



    The following example launches two processes on each of two computers where PHOENICS is installed only on the head node:


    -localroot -np 2 -host cham-cfd1 c:\phoenics\d_earth\d_windf\earexe.exe

    -np 2 -host cham-cfd2 \\cham-cfd1\d_earth\d_windf\earexe.exe



    Users should create their own configuration and 'run' files, based on the examples provided, tailored to their own installation. These can either be located in \phoenics\d_utils\d_windf or the local working directory.

    6.5.3 Cluster Operation

    All Nodes in the cluster should belong to the same Workgroup or Domain, and the user should be logged into each Node on the Cluster using the same Workgroup/Domain User account and password.

    A full PHOENICS installation must be made on the head node. A PHOENICS installation is strongly recommended on the other compute nodes, but it is not essential.

    1. If PHOENICS is only installed on the head node then the phoenics folder will need to be shared, with at least Read permissions, for the other compute nodes in the cluster. The Shared name which is chosen when the folder is shared is used in the configuration file, and in the example file 'config4' above the shared name is 'phoenics'.
      While it is possible for compute nodes to refer to the licence and configuration files on the head node, in practice this has led to problems and the solver unexpectedly stalling. As a minimum therefore the following files should be copied onto each of the compute nodes:

      C:\phoenics\d_allpro\phoenics.lic

      C:\phoenics\d_allpro\coldat

      C:\phoenics\d_allpro\config

      C:\phoenics\d_allpro\prefix

      C:\phoenics\d_earth\earcon

      C:\phoenics\d_earth\props


      The files get_hostid.bat and lmhostid.exe (in c:\phoenics\d_allpro) will also be needed initially to identify the compute node HOSTID necessary for unlocking the software.
      The environment variable PHOENICS should be set to C:\phoenics on the compute nodes to indicate that the configuration files are stored locally. See section 6.3.3 for some help in setting environment variables.
      Instead of running the solver directly from the network shared folder (see shared folder phoenics in config4 file above) one could also copy the solver to the compute nodes as
      C:\phoenics\d_earth\d_windf\earexe.exe
      During a run of the parallel solver the processes on the compute nodes will need to read and write some working files. These are generally only of use to the program during a run or perhaps for diagnostic purposes if things go wrong, but they still need to be written somewhere. By default these will be in an equivalent directory to that used to start the run on the head node. So if the run was started from c:\phoenics\d_priv1 on the head node the user will need to make sure that there is a directory of the same name on each of the compute nodes.
      As the files created on the compute nodes may be considered scratch files (i.e. only of short term value) it is possible to set up an environment variable PHOE_WORK_DIR on each of the compute nodes to specify where these files will be stored. Thus one does not have to remember to create a working directory for each time you change the working directory on the head node.
    2. If PHOENICS is installed on each compute node (in addition to the head node) then the Workgroup/Domain User account used to log into each compute node must allow read access to all PHOENICS folders, and write access to the folder C:\phoenics\d_priv1.
    3. 6.5.4 Automatic domain decomposition

      When using the default automatic domain decomposition, parallel PHOENICS only differs from sequential when Earth is run: problem set-up and post-processing of results can be done in exactly the same way as for the sequential version. A case that has been run in sequential mode can be run in parallel without any changes being made. The output from a parallel PHOENICS simulation will be result and phi files, having the same format as for sequential simulations.

      6.5.5 User-specified sub-domains

      It is also possible to by-pass the automatic domain decomposition algorithm, and to specify how you want to decompose the calculation domain into sub-domains. This can be done by selecting 'Manual' in the Domain decomposition group box on the Run Parallel solver dialog (see section 6.5.1 above).

      When you first switch to manual decomposition the arrangement will match the automatic decomposition that would otherwise be used. Normally automatic decomposition will suffice, but there may be occasions where a different decomposition is preferable to avoid a split at a critical location.

      6.5.6 Command mode operation

      In a Command Prompt window, if the EARTH executable is launched directly, then the sequential solver will be used; to run the parallel solver, the program name ‘earexe’ is used as an argument to mpiexec.

      A script RUNPAR.BAT [nnodes] is provided. The optional argument [nnodes] indicates the number of processes to be launched on the current PC. The default is to launch two processes.

      For example, RUNPAR 2 will execute the MPI command:


        mpiexec –localroot -np 2 \phoenics\d_earth\d_windf\earexe



      If a cluster has been defined by smpd, then the command will execute on two processors in the cluster, otherwise it will launch multiple processes on the local machine.

      There are also 'run' commands which can be used in conjunction with configuration files, for example 'runcl4' uses the configuration file 'config4'. Config4 lists the PCs and processors to be used (see above Configuration file section above).

      6.5.7 Testing Parallel PHOENICS

      The parallel installation should be tested by loading a library case.

      The different solver used for parallel operation requires a slight modification to the numerical controls. For example, the user may use main 'Menu' in the VR-Editor, and select 'Numerics' and then 'Iteration control': change the number of iterations for TEM1 (temperature) from 20 to 300. (Increasing the relaxation for the velocity components, U1 and W1, from 1.0 to 10.0 will also improve performance.)

      For parallel operation it is recommended that velocities should be solved whole-field (rather than slab-by-slab); this can be achieved from the VR Editor (under 'Models', 'Solution control/extra variables') or by direct editing of the q1 file (by setting 'Y' as the third logical in a SOLUTN command).

      6.6 Further Information

      A MPICH2 user guide is installed as part of the installation in PDF format; it is accessible from the MPICH menu item on the Start menu. Online documentation is available at

      http://www.mcs.anl.gov/research/projects/mpich2/

      6.7 Parallel Troubleshooting

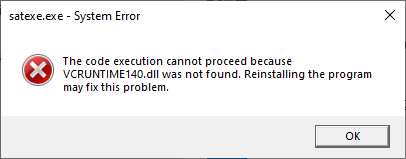

      6.7.1 Unable to install MPICH2 due to missing packages

      Previously it was found that the user either needed to install Microsoft’s Visual Studio 2005/2008 or two Redistributable Packages (available as free downloads from the Microsoft website) before you can install MPICH2. With the current version of the installer MPICH2-1.4.1p1 on a computer running Windows 7, these packages no longer appear to be a pre-requisite. If you should find you need them, here are the links to download them:

      Microsoft .NET Framework version 2.0 Redistributable Package (x64)

      Microsoft Visual C++ 2005 SP1 Redistributable Package (x64)

      These links were still correct April 2014, if you are unable to find them, try a search of the Microsoft site using the package name.

      6.7.2 Check that smpd.exe is running on your computer

      In order for parallel PHOENICS to start the MPICH2 Process Manager (smpd.exe) must first be running on each computer in the cluster. This is also necessary if PHOENICS is running in parallel on a single multi-core computer. It should have been installed as a service during the MPICH2 installation process. If parallel PHOENICS fails to start, begin by checking whether smpd.exe is listed amongst the list of processes in the Task Manager – you will need to tick the item "Show processes from all users" before it will get displayed.

      If smpd.exe is not listed amongst the processes then you will need to manually install it as an Administrator. To do this you will need to open a Command Prompt window, on Vista/Windows 7 you will also need to use the “Run as Administrator” when starting the Command Prompt. In the window type


      smpd –install



      to install the smpd as a service.

      6.7.3 Difficulty locating hosts

      If the head node has difficulty seeing one or more of the compute nodes and you are using static IP addresses in your cluster then you should consider defining the IP addresses in the host file on each of the workstations. The host file is normally located as

      C:\Windows\system32\drivers\etc\hosts

      An example 'hosts' file is:


      # Copyright (c) 1993-2009 Microsoft Corp.

      #

      # This is a sample HOSTS file used by Microsoft TCP/IP for Windows.

      #

      # This file contains the mappings of IP addresses to host names. Each

      # entry should be kept on an individual line. The IP address should

      # be placed in the first column followed by the corresponding host name.

      # The IP address and the host name should be separated by at least one

      # space.

      #

      # Additionally, comments (such as these) may be inserted on individual

      # lines or following the machine name denoted by a '#' symbol.

      #

      # For example:

      #

      #   102.54.94.97  rhino.acme.com # source server

      #    38.25.63.10  x.acme.com     # x client host



      127.0.0.1 localhost

      192.168.11.1 cham-cfd1

      192.168.11.2 cham-cfd2

      192.168.11.3 cham-cfd3

      192.168.11.4 cham-cfd4



      To determine the IP addresses, on each of the workstations in the cluster open a Command Prompt window and type the command ipconfig. Use the IPv4 Address located in the section Ethernet adapter Local Area Connection to define the IP address for the workstation in the hosts file.

      6.7.4 Registry not updated during installation

      Sometimes on Windows 7 or Vista PCs the passphrase is not written to the registry correctly during installation. This can be checked by using the Windows program regedit and navigating to HKEY_LOCAL_MACHINE\Software\MPICH\SMPD. Assuming default values, the registry key 'phrase' should have the value behappy. Set the registry key phrase to this value if it is not present.

      6.7.5 Non-fatal error messages while running parallel

      There are two non-fatal error messages that may occur in the Command Prompt window. The first is:


      The system cannot find the path specified.



      This will occur if the phoepath.bat did not correctly identify the location for the Intel compiler or if you don’t have the compiler installed on the computer.

      The second non-fatal message is


      Unable to open the HKEY_LOCAL_MACHINE\SOFTWARE\MPICH\SMPD\process\1264 registry key, error 5, Access is denied.



      This can occur either if you are running from a non-administrator account or if you have UAC turned on. This error is not usually fatal and the run should continue. The process number may be different to the one indicated above.

      6.7.6 Incorrect unlocking on one of the compute nodes

      If when starting the parallel solver you find that it has stalled during the start up process, that is if there are earexe.exe processes visible on all the compute nodes but consuming no CPU, then it may be a case of one of the compute nodes not being correctly unlocked. If this happens you will need to check the installations on each of the nodes separately to determine which has not been unlocked correctly.

      6.7.7 Firewall blocking on one of the compute nodes

      If one of the compute nodes has not had the Firewall setting made correctly then the program mpiexec.exe should appear in the task manager of the head node, but earexe.exe will not appear in the list of processes on the compute node. It will appear to stall but will eventually time out with a message:


      Error while connecting to host, a connection attempt failed because the connected party did not properly respond after a period of time, or established connection failed because connected host has failed to respond. (10060)

      Connect on sock (host=cham-cfd2, port: 8676) failed, exhausted all end points unable to post a connect to start the connect command

      Sock error: Error=-1

      Abort: Unable to connect to ‘cham-cfd2:8676’

      Sock error: Error=-1



      If this message occurs then check the firewall settings on host cham-cfd2 and ensure that the programs smpd.exe and earexe.exe have been allowed access (see 6.4 for detail).


      Appendix A. Unlocking PHOENICS

      FLEXlm

      PHOENICS is normally unlocked using the FLEXlm system, and the delivery CDROM contains a FLEXlm licence file which allows use of PHOENICS for an initial period of one month.

      The batch file /phoenics/d_allpro/get_hostid.bat will create a text file lmhostid.txt, which contains the FLEXlm HOSTID of that PC. Alternatively, the program /phoenics/d_allpro/lmhostid.exe, when run in a DOS window, displays the required FLEXlm HOSTID.This HOSTID should be sent to CHAM's Installation Section (see Contacting CHAM details below) in order to obtain a longterm licence file. The FLEXlm licence file 'phoenics.lic' supplied by CHAM in response to such a request should be placed in /phoenics/d_allpro, and the existing phoenics.lic file deleted.

      USB dongle

      A USB dongle may be supplied with the delivery, and the unique USB FLEXID will normally be known by CHAM. This FLEXID is printed on the USB dongle itself, and is of the form 9-abcd1234. When requesting a FLEXlm licence file the FLEXID value should be sent to CHAM's Installation Section (see Contacting CHAM details below).

      Rainbow Dongle

      Existing PHOENICS users may have a Rainbow dongle, and in this case PHOENICS is locked/unlocked using a dongle-based unlocking string present in the CONFIG file in the directory \phoenics\d_allpro, and is initially supplied with a temporary unlocking string.

      A permanent unlocking string may be supplied with the PHOENICS delivery, or may be requested from CHAM's Installation Section (see Contacting CHAM details below). The dongle number is currently 10793.

      An example of a dongle unlocking string and its location in the CONFIG file is shown below (the example is not currently valid). The unlocking string consists of the line starting with the text 'ID='


      * ------ The configuration file CONFIG for PHOENICS version 3.5.1 ------

      ID=:9(L8P3Y)P5ABG1AIOA/2D:SF dongle March 2009

      *---------------------------------------------------------------------

      SITE= CHAM

      *---------------------------------------------------------------------

      SATPRE=\phoenics\d_satell\

      EARPRE=\phoenics\d_earth\

      PHOPRE=\phoenics\d_photon\

      AUTPRE=\phoenics\d_photon\



      Parallel

      PHOENICS is unlocked using the FLEXlm system, and the delivery CDROM contains a FLEXlm licence file which allows use of Parallel PHOENICS for an initial period of two months.

      The FLEXlm HOSTID can be obtained as detailed under the paragraph ‘FLEXlm’ above. Unlocking for a multi-processor machine is exactly the same whether parallel or sequential PHOENICS is being used on that PC.

      For a Parallel cluster installation the HOSTID of all the machines in the cluster is required (because, although PHOENICS need only be installed on one machine, parallel Earth will run on each machine). This is the case for multi-processor installations and clusters of fewer than 16 nodes - alternative unlocking will be arranged for larger clusters.

      AC3D

      AC3D can be obtained directly from Inivis (www.inivis.com).

      The folder phoenics\d_ac3d\plugins contains files which allow AC3D to be used in conjunction with PHOENICS, and AC3D should be installed on your computer such that it is in the folder \phoenics\d_ac3d.

      Contacting CHAM

      The FLEXlm HOSTID or USB FLEXID should be recorded on the unlocking request form provided and returned to:

      Installation Section Tel: 020 8947 7651
      CHAM, Fax: 020 8879 3497
      Bakery House e-mail: js@cham.co.uk
      40 High Street,
      Wimbledon
      London SW19 5AU

      Appendix B. Frequently Asked Questions and Troubleshooting

      B.1 FAQ

      1. What is the PHOENICS directory structure ?

      A brief description of the first level subdirectories under \phoenics is given below.

      d_ac3d contains a stand-alone program which can be used (among other things) to create objects for use in the VR Editor.

      d_allpro contains the binary code for the PHOENICS service routines shared by SATELLITE and EARTH, the program libraries for all modules and the graphics drivers used by SATELLITE, EARTH and PHOTON;

      d_cosp contains a new "goal-seeker" for the purpose of solving so-called "inverse problems" (to be purchased separately);.

      d_chmkin, containing files for the CHEMKIN interface.

      d_earth contains the binary code and some source files of the PHOENICS main solver program EARTH, together with the PHOENICS case libraries;

      d_enviro contains program and data files for the PHOENICS COMMANDER;

      d_includ contains the Fortran common blocks required for recompilation;

      d_intfac contains the interfaces between PHOENICS and other codes;

      d_photon contains the binary code of the PHOENICS post-processor program PHOTON, which now incorporates AUTOPLOT;

      d_pc contains the PHOENICS Commander.

      d_polis contains all files for the PHOENICS On-Line Information System;

      d_priv1 is referred to as a 'private' working directory from which the user may run all the PHOENICS programs, or use the PHOENICS-VR Environment;

      d_satell contains the binary code of the PHOENICS pre-processor program SATELLITE, and the menu libraries;

      d_shapem contains the executable of Shapemaker, a geometry generator;

      d_utils contains utility batch files, such as run scripts, link scripts, and compiler option scripts. Also included are directories which contain many utility programs.

      In addition to phoenics, the installation process will create the directory website,containing the additional files relevant to the PHOENICS On-Line Information System.

      2. How do I create a working directory ?

      Under Windows

      A working directory, \phoenics\d_priv1, is provided with the installation. New working directories may also be created anywhere on the system. The following steps should be performed in order to create a working directory, such as d_work.

      To create the new folder, click the right mouse button on an empty part of the Windows desktop, then select New, and Folder. Type in a name for the new folder e.g. d_work, then press <return>. Drag this d_work folder to any convenient location.

      Start the PHOENICS-VR Environment and click on Options, Change working directory. Use the browser to locate the new folder.

      Note that the desktop icon created by the installation process is set to start PHOENICS with \phoenics\d_priv1 as the working directory. This can be changed by bringing up the properties dialog box for the PHOENICS icon, and changing the 'Working' directory on the program tab. Many copies of the icon can be made, each with a different 'Working' folder.

      In a Command Prompt window

      It is recommended that a new working directory is created under the \phoenics directory although the new directory can be anywhere. To create the new working directory, d_work,

      Type: md d_work

      3. Why the PHOENICS On-line Information System (POLIS) did not run correctly ?

      POLIS can be run from the PHOENICS-VR Environment, or the PHOENICS Commander by clicking on the appropriate button under HELP in the top tool bar. It can also be started on Windows systems from the CHAM-logo icon labelled 'POLIS' on the Desktop.

      All the POLIS documents are in HTML format, and can be accessed directly through an Internet browser. The address of the POLIS top page is usually \phoenics\d_polis\polis.htm.

      Normally, the POLIS files will be copied to the drive on which PHOENICS has been installed. The Desktop icon and Start-menu item will be set to this drive automatically by the installation program

      The drive letter used by the HELP button is stored in the file \phoenics\d_allpro\cham.ini. At installation time, it is set to C. If PHOENICS is installed on another drive, say D, the cham.ini file must be edited (with Notepad or any other file editor) and the entry 'drive = ' in the [POLIS] section must be set to the correct drive letter.

      A consequence of this is that it is possible to keep all the POLIS files on the CD-ROM if there is a shortage of disk space. The POLIS drive letter should then be set to that of the CD-ROM drive. The directories \phoenics\d_polis and \website can now be deleted from the hard-drive. The properties of the Desktop icon and Start menu item should be changed accordingly.

      4. Why the POLIS links don’t work in Firefox

      POLIS uses absolute pathnames in its HTML links; unfortunately Firefox is unable to translate these links correctly from the file system. It is possible to get over this limitation by installing and using the IE Tab add-on. The IE Tab can be downloaded from the Firefox website, http://www.mozilla.com, then follow the link to popular Add-ons. Just scroll down until you find the IE Tab, click on the 'Add to Firefox' button and install. The Tab will appear as a small icon to the left of the address bar, just click on it when you need to activate it.

      4. Can I open a new Command Prompt window to run PHOENICS ?

      PHOENICS can be run from an Command Prompt window opened by users, using individual commands such as:

      providing that the PATH for that window has been suitably modified. The batch file \phoenics\d_utils\phoepath will modify the PATH correctly.

      Users should check this file to ensure that the drive letters and paths for PHOENICS and the Intel Visual Fortran Compiler are both correct.

      6. What compiler option should I use ?

      For the 32bit Intel Visual Fortran version, the PHOENICS code has been compiled using the compiler options

      ifort /iface:cvf /threads /libs:static /winapp /compile_only /assume:byterecl /debug:none /O3 /include:\phoenics\d_allpro\d_libs\d_windf

      as specified in the batch file COMPILE.BAT in the directory \phoenics\d_utils\d_windf.

      For the 64bit Intel Visual Fortran version the compiler options are

      ifort /iface:cvf /define:_X64_ /threads /libs:static /winapp /compile_only /assume:byterecl /debug:none /O3 /include:\phoenics\d_allpro\d_libs\d_windf

      B.2 Troubleshooting

      Somehow the CHAM icon, PHOENICS-VR disappears from my desktop. How do I recreate this icon.

      Should the PHOENICS-VR Environment Icon be deleted in error it can be recreated thus:

      Select the following by clicking, using the left button of the mouse

      Start, then point to Programs
      Accessories
      Windows Explorer

      Then, in 'All folders', double click on

      Phoenics then
      d_satell and then
      d_windf

      Finally, in the 'contents of d_windf ' box, click right button of the mouse on

      satexe.exe then select the option
      Create Shortcut

      A Shortcut to satexe.exe is now created. Drag this Shortcut, using the left mouse button, onto a suitable part of the Windows screen. Rename the icon, using the right button, to 'PHOENICS-VR'. Right-click on the icon, and select 'Properties'. Add the argument vre after SATEXE.EXE. Set the 'Start in' folder to a suitable location, e.g. \phoenics\d_priv1.

      When I click on the PHOENICS-VR Environment icon, I get an error message that Windows cannot find C:\PHOENICS\D_SATELL\D_WINDF\SATEXE.EXE'.

      The desktop shortcut created by Install assumes that PHOENICS has been copied to drive C:. If you have copied it to another drive, you will have to modify the 'Cmd line' and 'Working' entries on the Program tab of Properties to reflect the correct drive letter. Click on the Commander icon with the right mouse button to bring up the Properties dialog box.

      I can't run any PHOENICS modules from a Command Prompt window with the 'runsat', 'runear' commands - I get 'bad command or file name' error messages.

      You should check if the path is correct by typing 'PATH' on the Command Prompt window. The correct path should point to '\phoenics\d_windf\d_utils; \phoenics\d_winsd\d_utils and \phoenics\d_utils'. If it does not, you must run the batch file <drive>:\PHOENICS\D_UTILS\PHOEPATH.BAT in the DOS window before running any PHOENICS modules. Check that this file contains the correct drive letter for PHOENICS, and the correct path to the INTEL Fortran compiler.

      My windows open and close too quickly for me to be able to see the messages.

      Edit the file \phoenics\d_allpro\cham.ini ('Files', 'Open file for editing','cham.ini' from environment top menu bar) and replace the line

      pause = off

      by

      pause = on

      My compile window opens and closes too quickly for me to be able to see the error messages.

      Edit the file \phoenics\d_utils\d_windf\compile.bat, and add /list to the argument list as follows:

      @echo off
      ifort /compile_only /debug:none /optimize:3 /list %1

      You will now generate listing files for each file compiled.

      The INTEL Visual Fortran compiler version does not appear to be accessible when I try to compile a program.

      In order to use the Visual Fortran compiler it must first be visible on the user’s path. PHOENICS uses the file \phoenics\d_utils\phoepath.bat to set the users path correctly. This script depends on correct Environment variable being set when the Intel Visual Fortran Compiler was installed. The script should be good for versions of the Intel compiler between 10 and 15. The current complier Intel Fortran Composer XE 2013 is version 14.

      If, for some reason, you do not have the Environment variable set you can modify the file phoepath.bat to explicitly set it. For example, if you have installed Intel Fortran Composer XE 2013 in its default location, in phoepath.bat, after the line


      if defined phoenics (set pho=%phoenics%) else set pho=\phoenics



      add


      set IFORT_COMPILER14=C:\Program Files (x86)\ComposerXE-2013



      Check that this is where the compiler is located and adjust the location if necessary.

      When I click on 'compile' from the VR Environment I encounter the error message 'Bad command'. How do I cure the problem?

      This problem is usually because the path name for the script ifortvars.bat is incorrect in the file /phoenics/d_utils/phoepath.bat. Please refer to the previous FAQ for the correct setting of the compiler path.

      If the Compiler path is set correctly then the other possibility is that the path to the PHOENICS script is incorrect. The script PHOENICS uses for compilation is compile.bat and is normally located in \phoenics\d_utils\d_windf. If you have installed PHOENICS somewhere other than the root directory and you do not have the Environment variable PHOENICS set correctly then it will fail to find the script. Refer to the follow FAQ for instructions on how to do this.

      How do I set or reset my PHOENICS Environment variable?

      Section 6.3.3 dealt with updating the PATH environment variable. The setting of the PHOENICS environment variable is similar. Follow the process to open the ‘Environment Variables’ dialog. If you are logged in as an Administrator you will be able to create a 'New' System Variable, otherwise you will be restricted to creating a 'New' User Variable. The difference between a User and a System variable is that the User variable only applies to the current user whereas a System variable will apply to all Users of the computer. So, click on the 'New' button and enter the variable name PHOENICS and the variable value C:\phoenics. Adjust the value to reflect the location of the 'phoenics' directory on your installation.

      When I click on 'compile' from the VR Environment I encounter the error message 'Too many parameters'. How do I cure the problem?

      This error message may be cured by modifying the file /phoenics/d_utils/phoepath.bat so that the path statement:

      echo Adding INTEL PHOENICS to path
      path = \phoenics\d_utils\d_windf;\phoenics\d_utils;%path%

      is replaced by

      echo Adding INTEL PHOENICS to path
      path = \phoenics\d_utils\d_windf;\phoenics\d_utils;c:\windows\system32

      This means the path is set explicitly, rather than adding to an existing path by the use of %path%.

      I wish to see an EARTH window with variables, not the graphics window with spot values and residuals.

      You must turn the graphical convergence monitor off. Either:

      PHOENICS starts but immediately stops. When I click on the PHOENICS icon, the PHOENICS-VR window appears and disappears almost immediately.

      Check in the working directory for the file luout. If it exists, open it with Notepad or some other file editor. It may contain an error message - usually indicating that unlocking is incorrect.

      I have put my unlocking string in the file phoenics/d_allpro/config, but still get the message 'illegal or absent id string'.

      Check that you have entered the string correctly, paying particular attention to possible confusion between the upper-case letter O and the number 0.

      Furthermore, the character string 'ID=:' must start in column 1. If a leading space is left in the string, it will not be recognised.

      The message sent to you containing your unlocking string also contains your dongle id as a check, in the form:

      NODEID=10793 for a dongle

      This line should not be entered in the config file.

      I have put PHOENICS on to a PC server, but could not run from another PC on my network.

      You will need to have local copies of some files and directories on each machine. You will also need to modify the config and prefix files. Please contact CHAM for detailed information.

      PHOENICS has been working satisfactorily, but today it fails with a Microsoft error window reporting an error in 'satexe'. I have made no changes since yesterday, and my computer has not been upgraded or modified since PHOENICS last worked.

      If no changes have been made on your PC it is just possible that the length of the FLEXlm licence path list in the Registry has become too long. Run the program 'FlushLic.exe' , which is to be found in the folder \phoenics\d_utils to clear this FLEXlm licence path list.

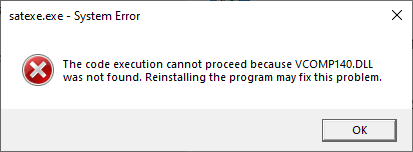

      When I run the Sequential Solver (EARTH) nothing happens on the screen and no error messages are displayed, and no result file is created.

      The sequential solver requires the dynamic-link libraries (DLL) fmpich2s.dll (fmpich2.dll for 64-bit), mpich2.dll and mpich2mpi.dll to be accessible at run time. That is they must either reside in same folder as the executable, the working directory or on the user's path. The named library files are located in /phoenics/d_earth/d_windf, copies are also in /phoenics/d_utils/d_windf. If the solver cannot locate them they can be copied from there to your working folder. Alternatively, you can add the folder pathname '\phoenics\d_utils\d_windf' to your PATH.

      I get a message indicating there is insufficient Virtual Memory when I run a PHOENICS module

      The F-arrays for all the modules are now allocated dynamically at run-time, in the file CHAM.INI.

      Sometimes, when running large cases, the Earth Solver will display a dialog complaining that there is insufficient virtual memory, and give the size of the F array it is trying to allocate. In many cases, changing the CHAM.INI setting to allocate that much memory initially will allow the case to run.

      In some cases, it will result in another error dialog - 'Insufficient virtual memory to allocate array'. This means that Windows cannot allocate a contiguous piece of memory of the requested size.

      By default, Windows can address a total of 4 gigabytes (GB) of virtual address space. By default, 2 GB of this is reserved for the kernel (operating system), and 2 GB is reserved for User mode programs such as PHOENICS.

      The 2GB user space also has to hold all the DLLs of programs such as virus checkers, graphics drivers and whatever else is running. The maximum available space seems to be around 1.75GB.

      Furthermore, the DLLs of these other programs may load into memory at inconvenient locations, thus fragmenting the contiguous memory and reducing further the maximum single allocation.

      By placing a /3GB switch into the Boot.ini file of the operating system, the virtual address space distribution is changed to give User mode programs 3 GB of space and limit the kernel to 1 GB.

      This parameter is fully functional on:

      On other versions of Windows NT and Windows 2000, the /3GB parameter restricts the kernel to addresses above the 3 GB boundary. However, user-mode applications cannot access more than 2 GB of address space - 1GB is effectively lost.

      Windows 95, 98 and ME cannot use this parameter at all.

      To add the /3GB switch to a Windows XP machine, go to Start - Settings - Control Panel - System. Select the Advanced page, and click Startup and Recovery Settings. Click Edit to manually edit the startup options file. The bottom of the file will look somewhat like:


      [operating systems]

      multi(0)disk(0)rdisk(0)partition(1)\WINDOWS="Microsoft Windows XP Professional" /fastdetect /NoExecute=OptIn



      Copy and paste the last line to make a duplicate. On the duplicate line add /3GB to the end of the line, and change the name of the operating system, e.g.


      multi(0)disk(0)rdisk(0)partition(1)\WINDOWS="Microsoft Windows XP Professional 3GB" /fastdetect /NoExecute=OptIn /3GB



      Make sure the 'Time to display list of operating systems' is ticked, with at least a 10 second wait.

      Save the boot.ini file, exit from all the dialogs and reboot the computer. When it starts, it will offer a choice of operating systems. Choose the new one, e.g. "Microsoft Windows XP Professional 3GB" with the /3GB switch. There should be no obvious difference in the operation of the computer. If there are any problems, reboot and select the original OS.

      On Windows XP, some drivers, especially video adapter drivers with onboard RAM, cannot run with the /3GB parameter because they require more address space than the 1 GB kernel address space permits.

      Only make this modification if you feel confident, or ask the system administrator if they are prepared to make the change for you. More information about the /3GB switch can be found by searching at www.microsoft.com.

      When I attempt to compile from within VR Editor, an error in the Command Prompt window indicates that the wrong compiler has been accessed

      This can happen if you have more than one Fortran compiler installed. The solution is to set up an Environment Variable PHOENICS_COMPILER with a value which is the pathname to the correct compiler. The pathname would be similar to this

      C:\Program Files\Intel\Compiler\Fortran\9.1\IA32

      Under the VISTA Operating System I get grey rectangles when running the VR Viewer

      There are two ways of accomplishing this :

      1. Click on Start, Computer, System properties, Performance, Adjust visual effects, and remove the tick from 'Enable desktop composition'. Click OK and close the remaining dialogs
      2. You can also clear the gray rectangles by setting 'HardwareAccel = off' in CHAM.INI, but that disables all acceleration. Changing the Windows Theme to 'Windows Classic' also removes the gray rectangles, but also removes the Vista 'look and feel'.
